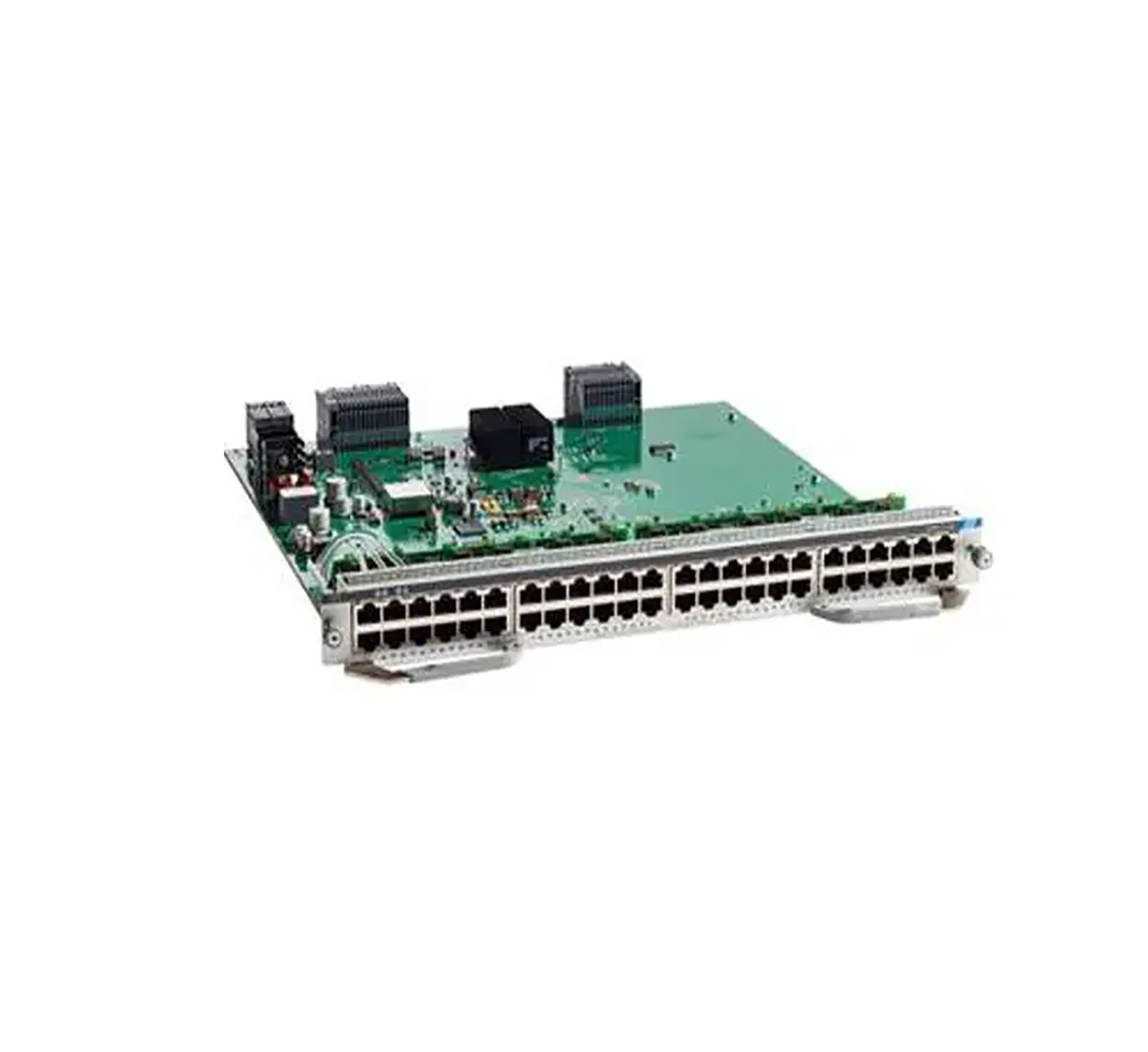

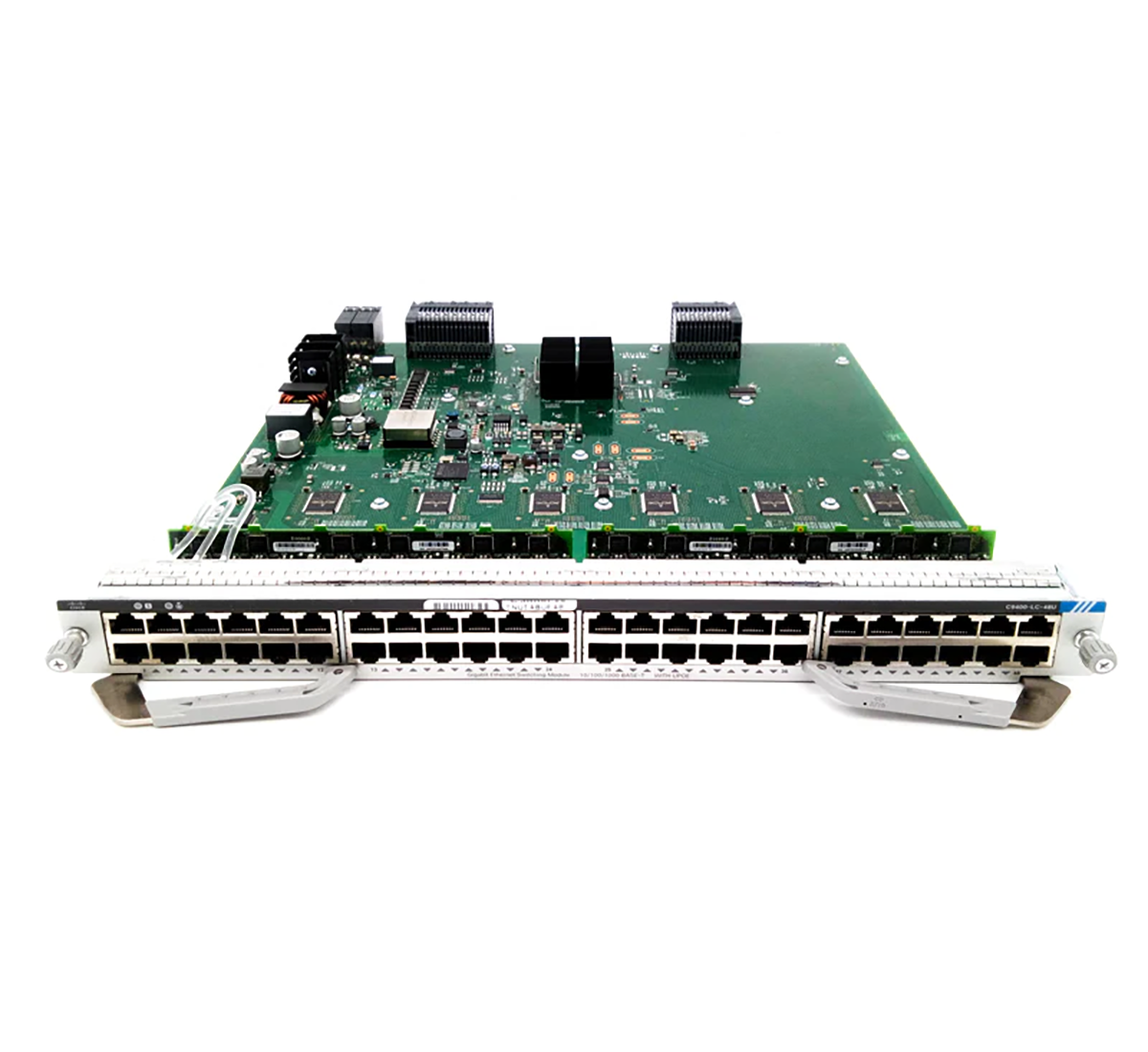

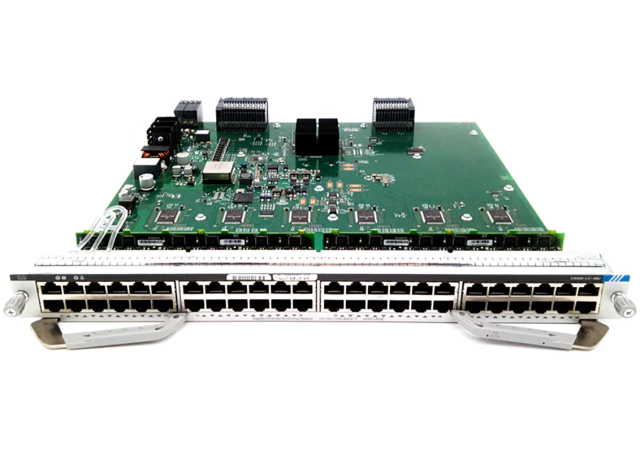

Cisco C9400-LC-48H - Switch Line Card

Cisco Part Number: C9400-LC-48H is a Cisco Catalyst 9400 Series 48-Port UPOE+ 10/100/1000 (RJ-45) line card

The Cisco Catalyst 9400 Series switches, a key modular component of the Catalyst 9000 family, redefine network capabilities for a hybrid world. This series, featuring the latest Catalyst 9400 SUP-2/2XL supervisor and line cards, continues to innovate, enhancing connectivity, strengthening security, and redefining experiences for diverse hybrid workforces.

The Cisco Catalyst 9400 Series switches stand as Cisco’s primary modular enterprise switching platform, prioritizing security, IoT, and cloud integration. Positioned as foundational elements for SD-Access, Cisco’s leading enterprise architecture, these switches ensure exceptional investment protection. With a chassis architecture supporting up to 9 Tbps of system bandwidth and robust power delivery via high-density IEEE 802.3bt PoE (60W and 90W), redundancy is a standard across the portfolio. Featuring advanced High Availability (HA) capabilities like SSO/NSF, uplink resiliency, and N+1/N+N redundancy for power supplies, the Catalyst 9400 Series offers enterprise optimization with innovative dual-serviceable fan tray design, side-to-side airflow, and closet-friendly ~16 in. depth. Scaling up to 384 access ports, the system provides a variety of multigigabit and fiber options, supporting advanced routing, SD-Access capabilities, and network system virtualization for small to medium-sized campus environments.

The C9400-LC-48H Catalyst 9400 Series switch UPOE+ line card supports various power options, including Cisco UPOE+, UPOE, PoE+, and PoE. Tailored for digital building and IoT applications, the Cisco Catalyst 9400 Series IEEE 802.3bt compliant 90W UPOE+ line card delivers both data and power over a single cable. This capability is ideal for powering devices such as wireless access points, digital signage, security cameras, thermal cameras with PTZ features, LED lighting fixtures, and large display screens. Cisco UPOE+ enhances efficiency by reducing cabling and installation costs, eliminating the need for permits, supporting applications with higher power requirements, ensuring uninterrupted power and data via dual supervisors, offering real-time device information, and enabling centralized management and remote control. It facilitates faster and flexible device installation, allowing devices to be placed conveniently rather than being constrained by proximity to electrical outlets. Furthermore, these line cards incorporate advanced energy management through Energy Efficient Ethernet standards, providing the lowest thermal dissipation per watt of energy consumed.

Characteristics:

• 48 nonblocking ports.
• 10/100/1000 module (RJ-45).
• Compatible with Cisco IOS XE Software Release 16.12.1 or later.
• Cisco UPOE+ enables up to 90W on all ports.
• Energy Efficient Ethernet 802.3az.
• Supports IEEE 802.3bt/af/at and Cisco pre-standard PoE.
• Hardware-based IEEE 802.1AE (MACsec-256) capability.
• Jumbo Frame support (Layer 2 to Layer 4) up to 9216 bytes.
• Ideal for enhanced performance in campus and branch applications, facilitating large file transfers and network backups.

Bandwidth per slot by chassis for C9400-LC-48H line card
