BRAND: Cisco

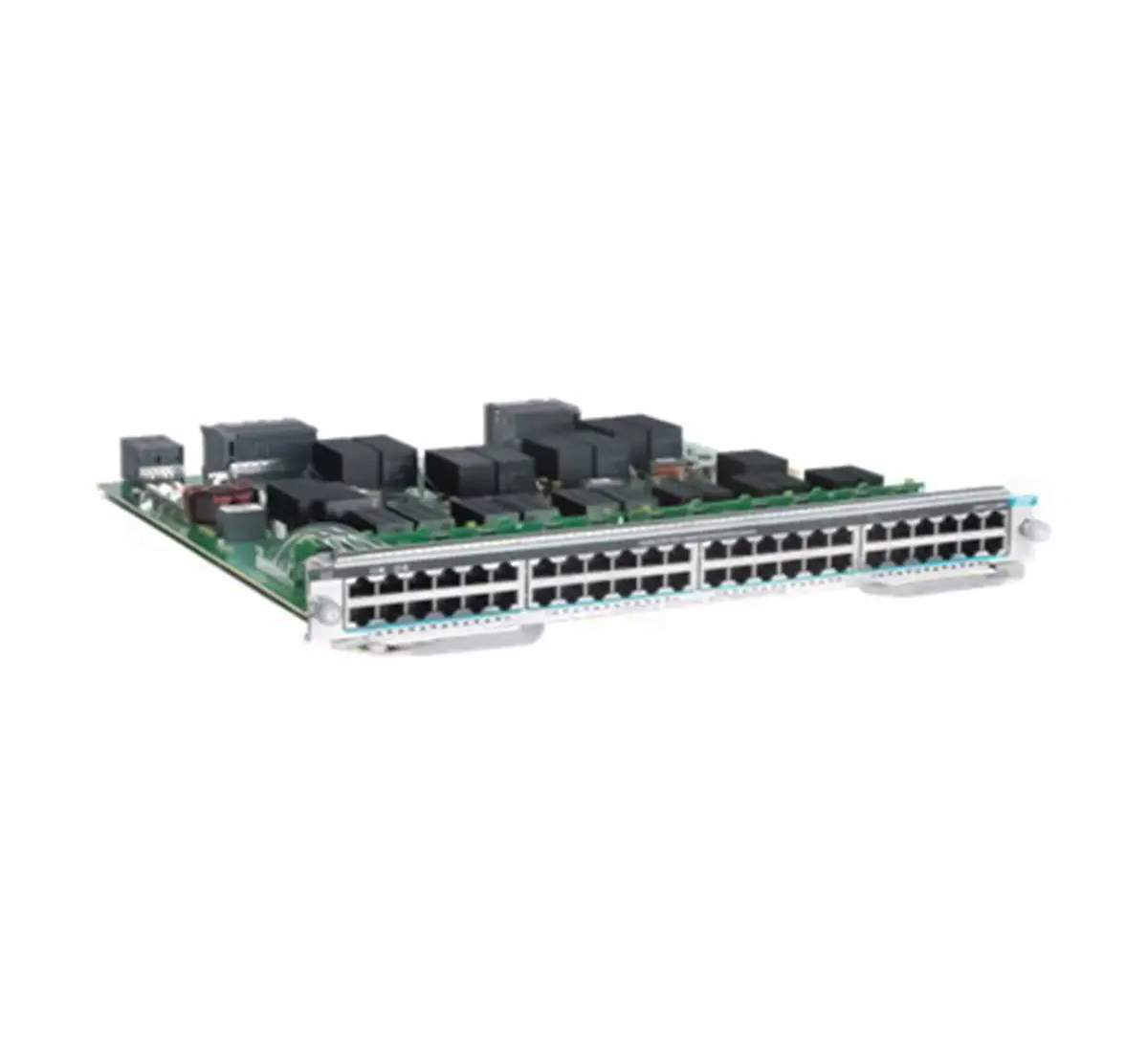

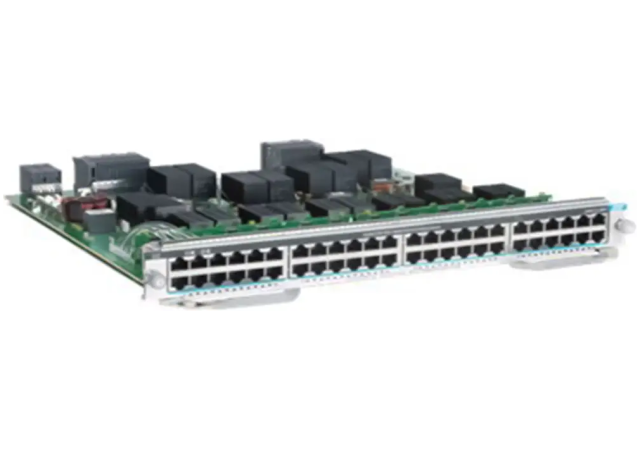

Cisco C9400-LC-48HX - Switch Line Card

MPN: C9400-LC-48HX
£9,878.05
£11,853.66 Incl. VAT
AVAILABLE ON REQUEST
FINANCE AVAILABLE
Paypal Visa Mastercard American Express
Free Technical Support
Can't decide?
Free Technical Support
We can help you decide which hardware is best for you
orders@cloudappliances.co.uk 020 3880 8840 Mon-Fri: 8AM-7PM
Description
Tech Overview

Cisco Part Number: C9400-LC-48HX is a Cisco Catalyst 9400 Series 48-Port UPOE+ 10G multigigabit (RJ-45)

The Cisco Catalyst 9400 Series switches, a key modular component of the Catalyst 9000 family, redefine network capabilities for a hybrid world. This series, featuring the latest Catalyst 9400 SUP-2/2XL supervisor and line cards, continues to innovate, enhancing connectivity, strengthening security, and redefining experiences for diverse hybrid workforces.

The Cisco Catalyst 9400 Series switches stand as Cisco’s primary modular enterprise switching platform, prioritizing security, IoT, and cloud integration. Positioned as foundational elements for SD-Access, Cisco’s leading enterprise architecture, these switches ensure exceptional investment protection. With a chassis architecture supporting up to 9 Tbps of system bandwidth and robust power delivery via high-density IEEE 802.3bt PoE (60W and 90W), redundancy is a standard across the portfolio. Featuring advanced High Availability (HA) capabilities like SSO/NSF, uplink resiliency, and N+1/N+N redundancy for power supplies, the Catalyst 9400 Series offers enterprise optimization with innovative dual-serviceable fan tray design, side-to-side airflow, and closet-friendly ~16 in. depth. Scaling up to 384 access ports, the system provides a variety of multigigabit and fiber options, supporting advanced routing, SD-Access capabilities, and network system virtualization for small to medium-sized campus environments.

The Catalyst C9400-LC-48HX 9400 Series switch 48-port multigigabit UPOE+ line card supports various speeds (10GBASET, 5/2.5Gbps, 1000/100Mbps), offering high-bandwidth PoE for Wi-Fi 6/6E. Compliant with IEEE 802.3bt, this 48-port mGig 90W UPOE+ card provides data and power over a single cable, ideal for devices like digital signage, security cameras, LED lighting. Cisco UPOE+ reduces costs and simplifies installation, supporting high-power applications, dual supervisors for uninterrupted power and data, real-time device info, centralized management, and remote control. It enables flexible device placement, minimizing proximity to outlets. The line cards prioritize energy efficiency through Energy Efficient Ethernet and deliver the lowest thermal dissipation per watt.

Key Features:

  • 48 nonblocking 10GBASET, 5/2.5G multigigabit, 1000/100M module (RJ-45) ports.
  • Supported on Cisco IOS XE Software Release 17.8 or later.
  • Cisco UPOE+ enables up to 90W on all ports.
  • Energy Efficient Ethernet 802.3az.
  • IEEE 802.3bt/af/at and Cisco pre-standard PoE.
  • IEEE 802.1AE (MACsec-256) capability in hardware.
  • Jumbo Frame support (9216 bytes) from Layer 2 to Layer 4.
  • Ideal for Wi-Fi 6/6E campus and branch applications demanding enhanced performance.

Bandwidth per slot by chassis type for C9400-LC-48HX line card.

Supervisor

Chassis C9404R

Chassis C9407R

Chassis C9410R

C9400 Supervisor Engine-2XL (C9400X-SUP-2XL)

Bandwidth per slot

480 Gbps

480 Gbps

480 Gbps

Oversubscription

1:1

1:1

1:1

C9400 Supervisor Engine-2 (C9400X-SUP-2)

Bandwidth per slot

240 Gbps

240 Gbps

240 Gbps

Oversubscription

2:1

2:1

2:1
