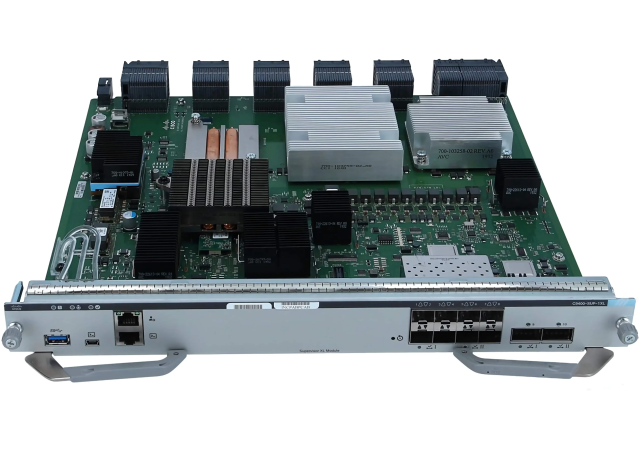

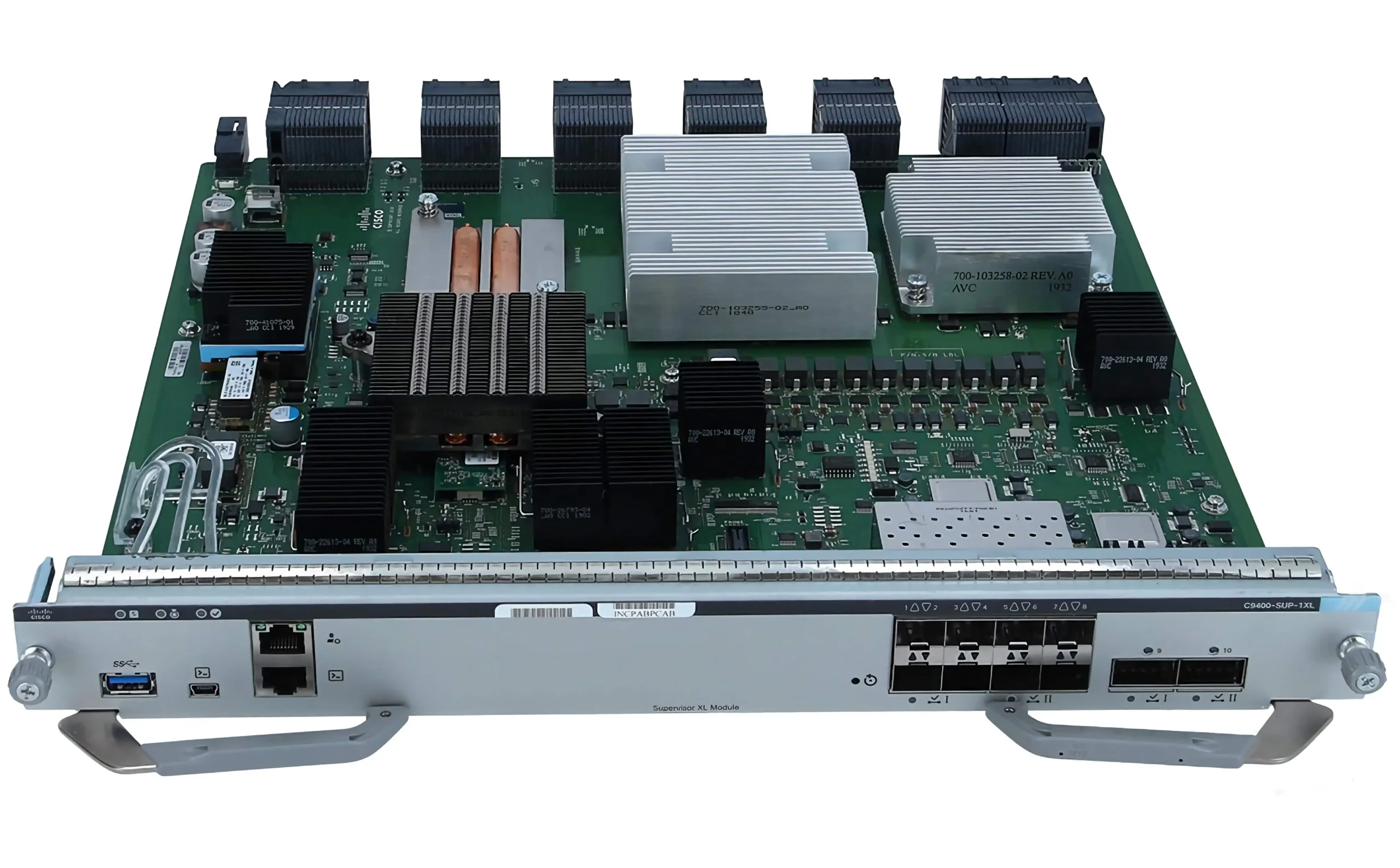

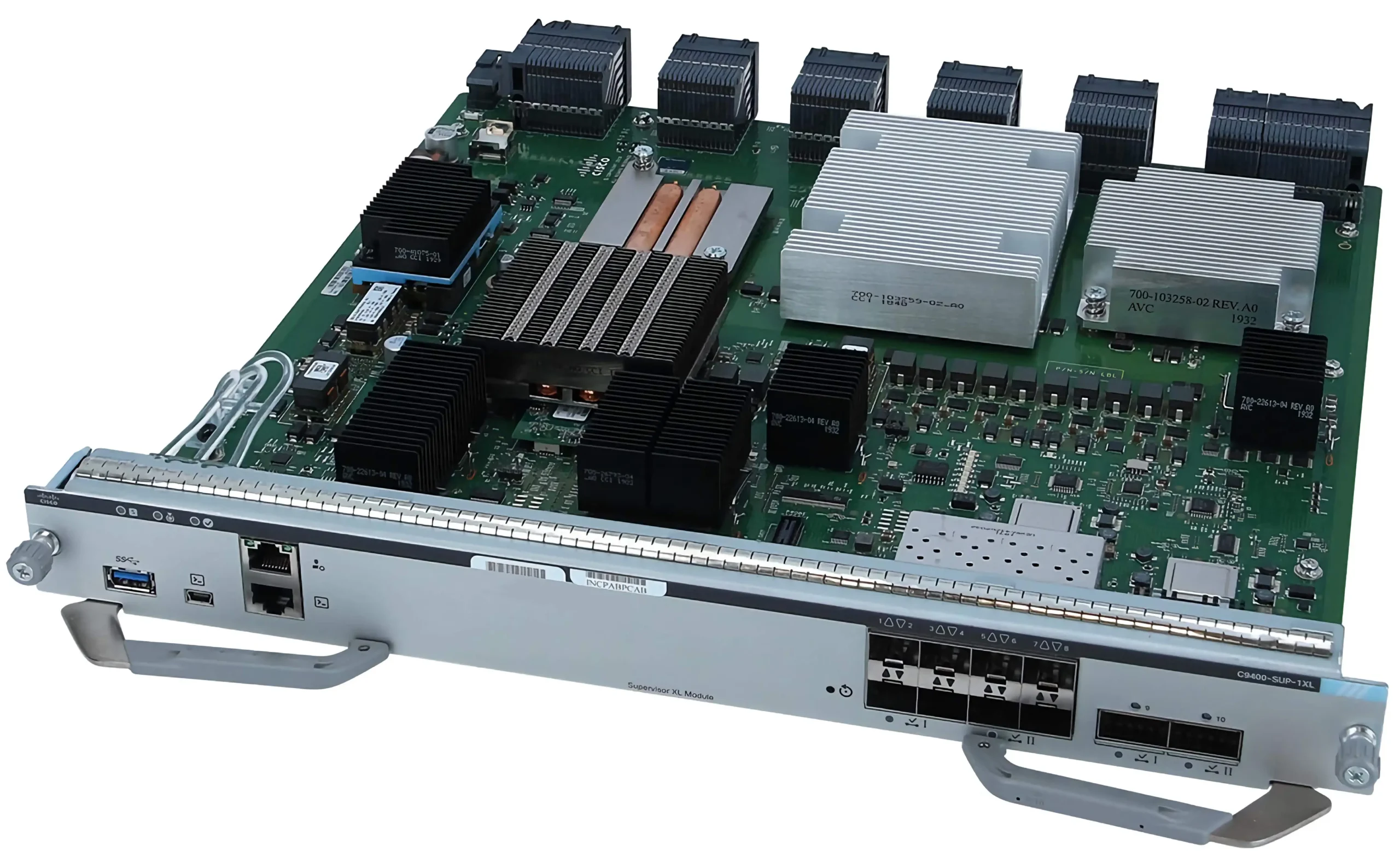

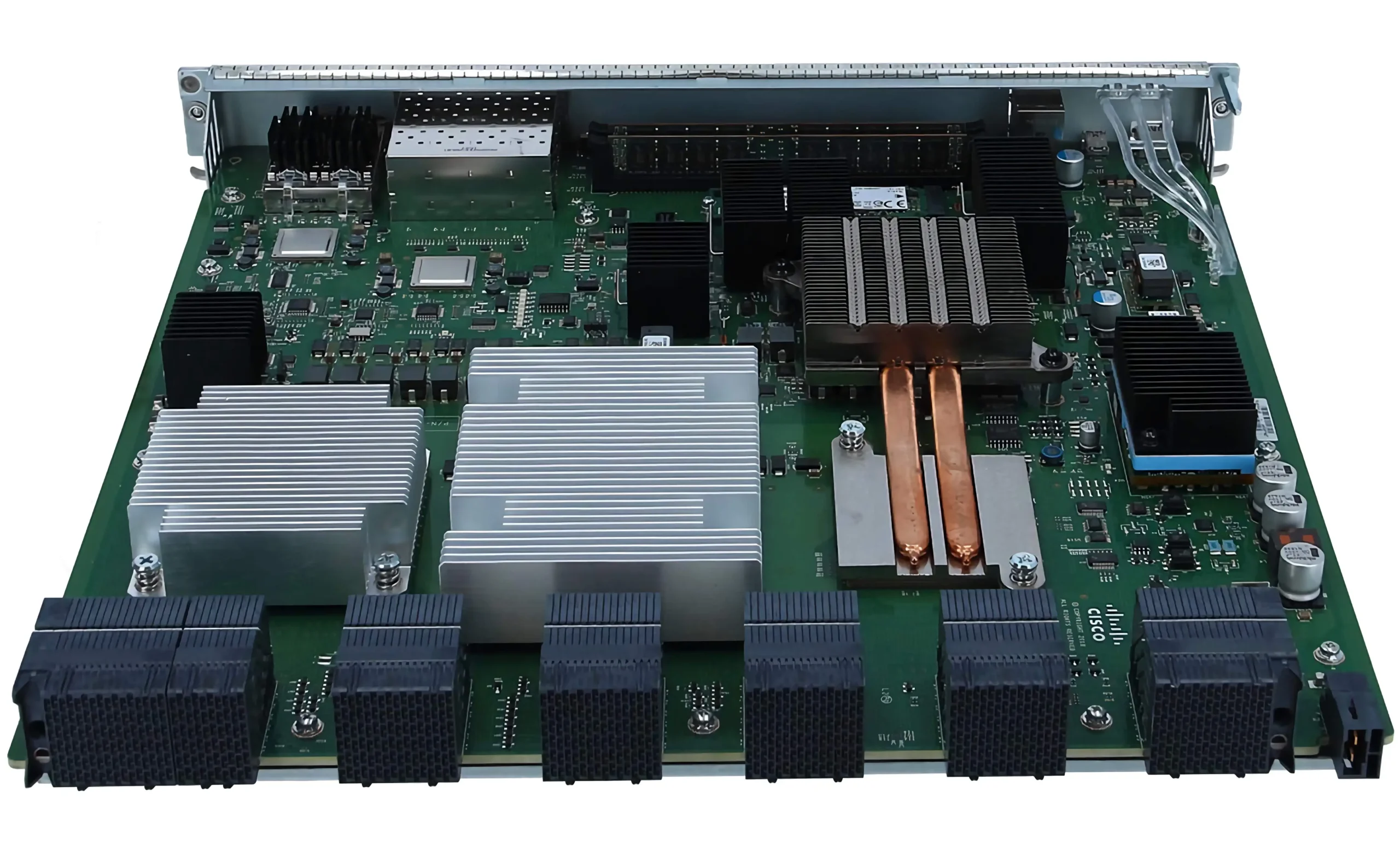

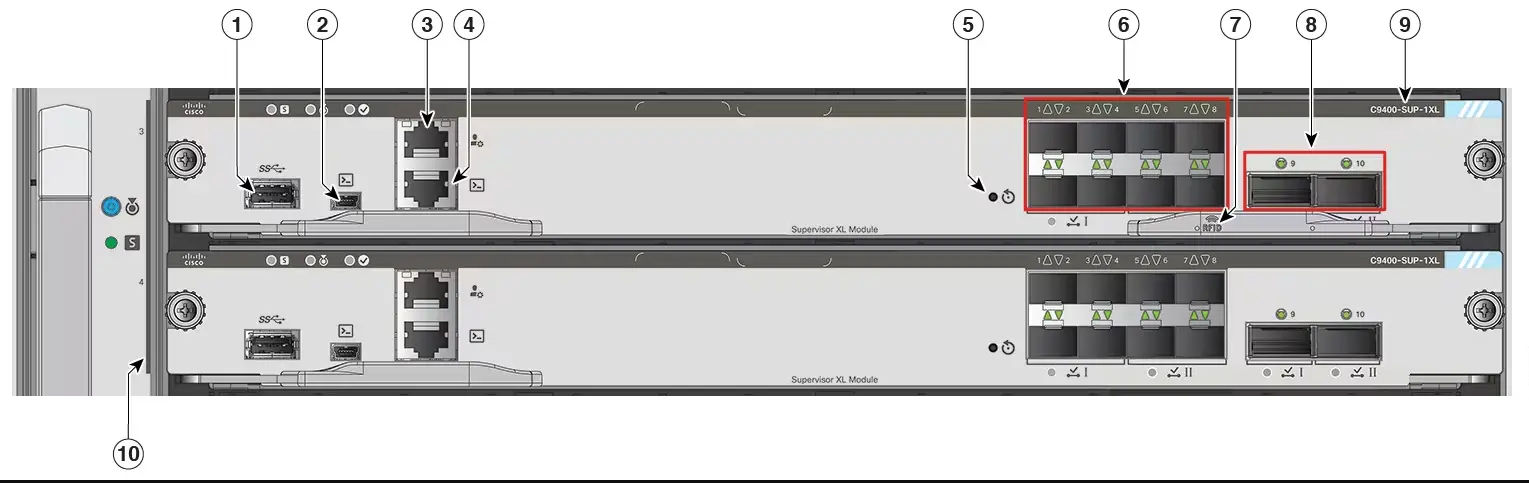

Cisco Part Number: C9400-SUP-1XL is a Cisco Catalyst 9400 Series Supervisor v1XL Module
The Cisco Catalyst 9400 Series switches, a flagship modular enterprise access switching platform within the Catalyst 9000 family, are designed to revolutionize networks for a hybrid world. In this landscape, the workplace is decentralized, endpoints are diverse, and applications are distributed across multiple locations.
Featuring five supervisors tailored for different campus setups—access and aggregation—the Cisco Catalyst 9400 Series switches, coupled with Cisco's campus-optimized 100G and 25G optics, provide the flexibility for architectural transformations while ensuring industry-leading investment protection.
The Cisco Catalyst C9400-SUP-1XL supervisor engine is a cutting-edge solution designed for enterprise-class core and aggregation layers, boasting up to 240 Gbps support. Its hardware facilitates advanced routing and infrastructure services, including MPLS, software-defined access control, and border capabilities like host tracking, cross-domain connectivity, and VRF-aware LISP. With flexible ASIC templates for optimized table sizes, it supports network system virtualization via Cisco StackWise Virtual technology, making it essential for deployment in the campus core.
Cisco Catalyst 9400 Supervisor Engine Line Card and Module Support:
|
Supervisor Engine |
Line card |
Description |
Minimum software |
|
C9400-SUP-1XL |
C9400-LC-48U |
Cisco Catalyst 9400 Series 48-Port UPOE 10/100/1000 (RJ-45) |
Cisco IOS XE 16.9.1 |
|
C9400-LC-48T |
Cisco Catalyst 9400 Series 48-Port 10/100/1000 (RJ-45) |
Cisco IOS XE 16.9.1 |
|
|
C9400-LC-48UX |
Cisco Catalyst 9400 Series 48-Port UPOE with 24p mGig 24p RJ-45 |
Cisco IOS XE 16.9.1 |
|
|
C9400-LC-24XS |
Cisco Catalyst 9400 Series 24-Port 10 Gigabit Ethernet (SFP+) |
Cisco IOS XE 16.9.1 |
|
|
C9400-LC-48P |
Cisco Catalyst 9400 Series 48-Port POE+ 10/100/1000 (RJ-45) |
Cisco IOS XE 16.9.1 |
|
|
C9400-LC-24S |
Cisco Catalyst 9400 Series 24-Port Gigabit Ethernet (SFP) |
Cisco IOS XE 16.9.1 |
|
|
C9400-LC-48S |
Cisco Catalyst 9400 Series 48-Port Gigabit Ethernet (SFP) |
Cisco IOS XE 16.9.1 |
|
|
C9400-LC-48H |
Cisco Catalyst 9400 Series 48-Port UPOE+ 10/100/1000 (RJ-45) |
Cisco IOS XE 16.12.1 |
|
|
C9400-LC-48HN |
Cisco Catalyst 9400 Series 48-Port 5G multiGigabit w/ full 90W UPOE+ |
Cisco IOS XE 17.5.1 |
Cisco Catalyst 9400 Supervisor Engines Performance and Scalability Features Comparison:
|
Features |
Performance and scalability |
|
|
||
|
Supervisor Engine |
C9400-SUP-1 |
C9400-SUP- 1XL/C9400-SUP-1XL-Y |
C9400X-SUP-2 |
C9400X-SUP-2XL |
|
|
Centralized wired capacity |
Up to 1.44 Tbps |
Up to 1.44 Tbps |
Up to 9.6 Tbps |
Up to 9.6 Tbps |
|
|
Per-slot switching Capacity |
80 Gbps |
240 Gbps – C9404R 120 Gbps – C9407R 80 Gbps – C9410R |
240 Gbps – C9404R 240 Gbps – C9407R 240 Gbps – C9410R |
480 Gbps – C9404R 480 Gbps – C9407R 480 Gbps – C9410R |
|
|
Total number of MAC addresses |
Up to 64,0001 |
Up to 64,0001,2 |
Up to 64,0001,2 |
Up to 64,0001,2 |
|
|
Total number of IPv4 routes (ARP plus learned routes) |
Up to 112,0003 |
Up to 144,0001,4 |
Up to 256,0005 |
Up to 256,0005 |
|
|
FNF entries (v4/v6) |
Up to 384,000/192,000 |
Up to 384,000/192,000 |
Up to 384,000/192,0006 |
Up to 384,000/192,0006 |
|
|
DRAM |
16 GB |
16 GB |
16 GB |
16 GB |
|
|
Flash |
10 GB |
10 GB |
10 GB |
10 GB |
|
|
VLAN IDs |
4096 |
4096 |
4096 |
4096 |
|
|
SSD capacity |
960 GB |
960 GB |
960 GB |
960 GB |
|
|
Total Switched Virtual Interfaces (SVIs) |
1,000 |
1,000 |
1,000 |
1,000 |
|
|
Jumbo frame |
9216 bytes |
9216 bytes |
9216 bytes |
9216 bytes |
|
|
Forwarding rate |
● 900 Mpps for IPv4
● 782.6 Mpps for IPv6 (@95 byte)
|
● 900 Mpps for IPv4
● 782.6 Mpps for IPv6 (@95 byte)
|
● 3 Bpps for IPv4 and IPv6
|
● 3 Bpps for IPv4 and IPv6
|
|
