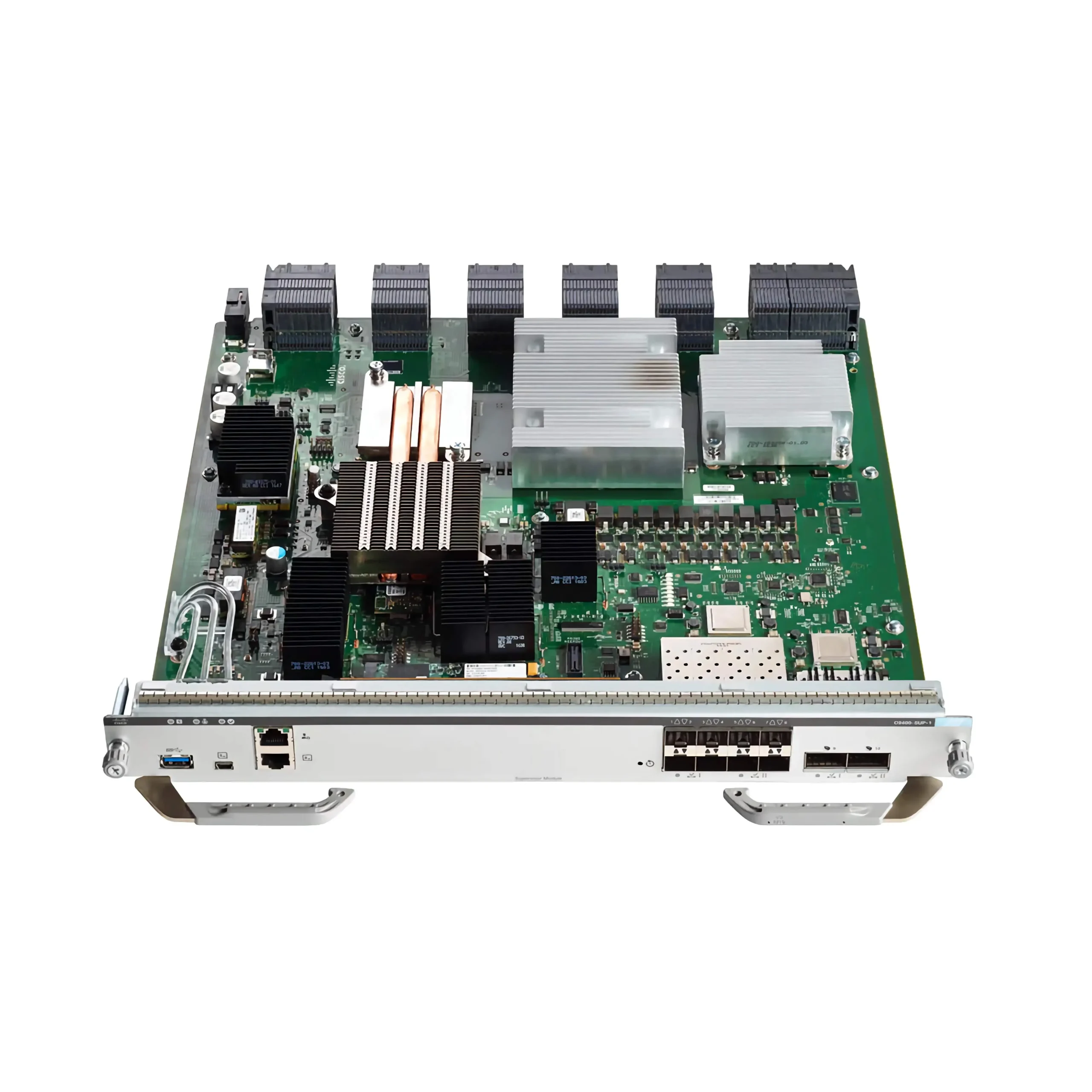

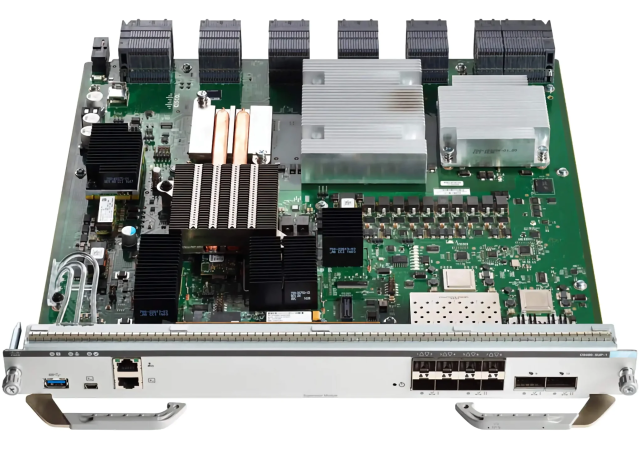

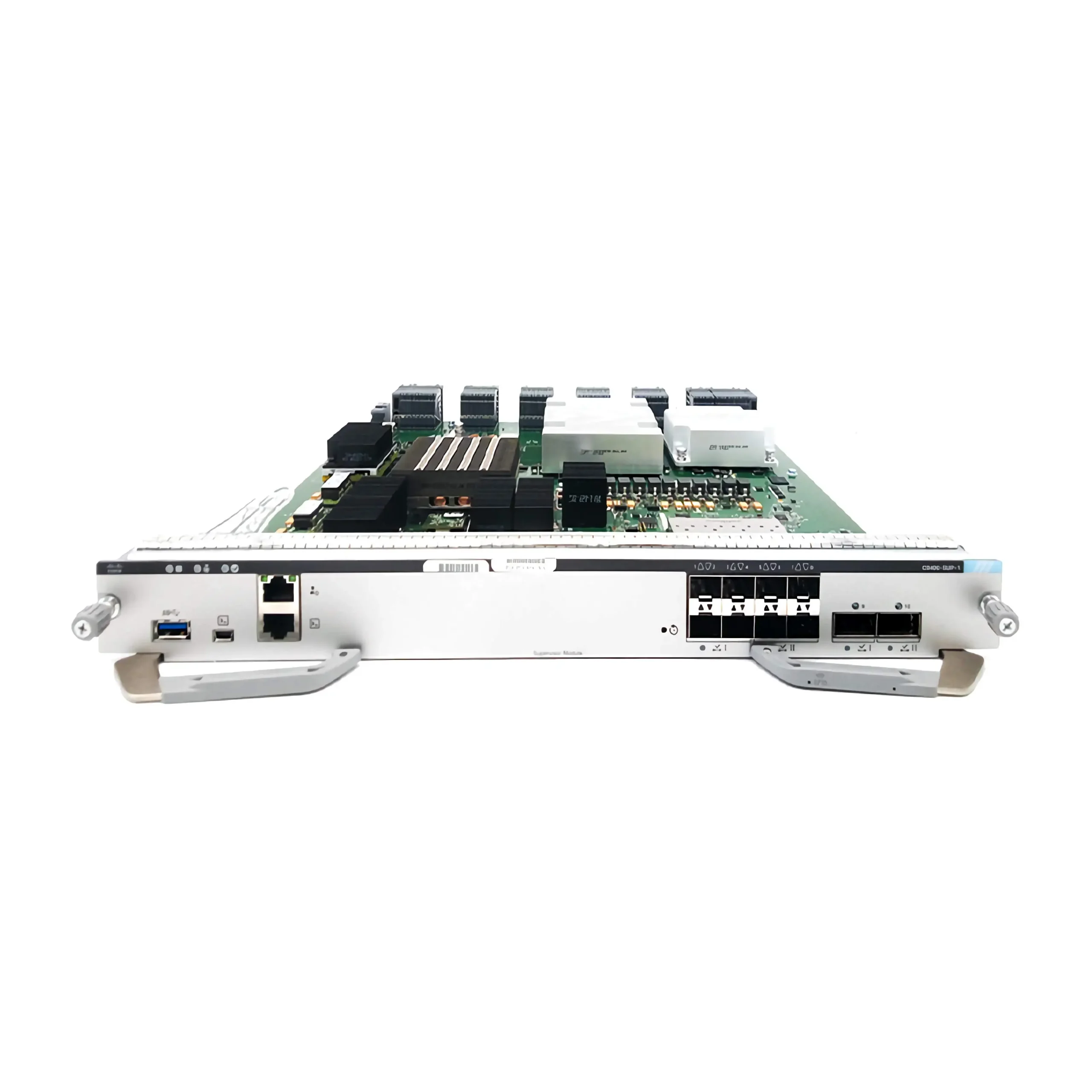

Cisco C9400X-SUP-2 - Supervisor Engine Module

MPN: C9400X-SUP-2
£10,985.98
£13,183.18 Incl. VAT
AVAILABLE TO ORDER
FINANCE AVAILABLE
Paypal Visa Mastercard American Express
Free Technical Support
Can't decide?
Free Technical Support
We can help you decide which hardware is best for you
[email protected] 020 3880 8840 Mon-Fri: 8AM-7PM
Description
Tech Overview
Our Services
Links & Documents

Cisco Part Number: C9400X-SUP-2 is a Cisco Catalyst 9400 Series Supervisor 2 Module

The Cisco Catalyst 9400 Series switches, a flagship modular enterprise access switching platform within the Catalyst 9000 family, are designed to revolutionize networks for a hybrid world. In this landscape, the workplace is decentralized, endpoints are diverse, and applications are distributed across multiple locations.

Featuring five supervisors tailored for different campus setups—access and aggregation—the Cisco Catalyst 9400 Series switches, coupled with Cisco's campus-optimized 100G and 25G optics, provide the flexibility for architectural transformations while ensuring industry-leading investment protection.

The Cisco Catalyst C9400X-SUP-2 supervisor engine is an advanced next-gen supervisor designed for enterprise-class access layers, featuring up to 240 Gbps per slot and 100G uplinks.

Cisco Catalyst 9400 Supervisor Engine Line Card and Module Support:

Supervisor Engine

Line card

Description

Minimum software

C9400X-SUP-2

C9400-LC-48U

Cisco Catalyst 9400 Series 48-Port UPOE 10/100/1000 (RJ-45)

Cisco IOS XE 17.7.1

C9400-LC-48T

Cisco Catalyst 9400 Series 48-Port 10/100/1000 (RJ-45)

Cisco IOS XE 17.7.1

C9400-LC-48UX

Cisco Catalyst 9400 Series 48-Port UPOE with 24p mGig 24p RJ-45

Cisco IOS XE 17.7.1

C9400-LC-24XS

Cisco Catalyst 9400 Series 24-Port 10 Gigabit Ethernet (SFP+)

Cisco IOS XE 17.7.1

C9400-LC-48P

Cisco Catalyst 9400 Series 48-Port POE+ 10/100/1000 (RJ-45)

Cisco IOS XE 17.7.1

C9400-LC-24S

Cisco Catalyst 9400 Series 24-Port Gigabit Ethernet (SFP)

Cisco IOS XE 17.7.1

C9400-LC-48S

Cisco Catalyst 9400 Series 48-Port Gigabit Ethernet (SFP)

Cisco IOS XE 17.7.1

C9400-LC-48H

Cisco Catalyst 9400 Series 48-Port UPOE+ 10/100/1000 (RJ-45)

Cisco IOS XE 17.7.1

C9400-LC-48HN

Cisco Catalyst 9400 Series 48-Port 5G multiGigabit w/ full 90W UPOE+

Cisco IOS XE 17.7.1

C9400-LC-48HX

Cisco Catalyst 9400 Series 48-Port 10G multiGigabit w/ full 90W UPOE+

Cisco IOS XE 17.8.1

C9400-LC-48XS

Cisco Catalyst 9400 Series 48-Port 10 Gigabit (SFP+)

Cisco IOS XE 17.8.1

C9400-LC-24XY

Cisco Catalyst 9400 Series 20-Port 25G (SFP28), 4-Port 10G (SFP+)

Cisco IOS XE 17.12.1

C9400-LC-12QC

Cisco Catalyst 9400 Series 12-Port 40G (QSFP+) or 4-Port 100G (QSFP28), 4-Port 40G (QSFP+)

Cisco IOS XE 17.12.1



Cisco Catalyst 9400 Supervisor Engines Performance and Scalability Features Comparison:

Features

Performance and scalability

Supervisor Engine

C9400-SUP-1

C9400-SUP- 1XL/C9400-SUP-1XL-Y

C9400X-SUP-2

C9400X-SUP-2XL

Centralized wired capacity

Up to 1.44 Tbps

Up to 1.44 Tbps

Up to 9.6 Tbps

Up to 9.6 Tbps

Per-slot switching Capacity

80 Gbps

240 Gbps – C9404R

120 Gbps – C9407R

80 Gbps – C9410R

240 Gbps – C9404R

240 Gbps – C9407R

240 Gbps – C9410R

480 Gbps – C9404R

480 Gbps – C9407R

480 Gbps – C9410R

Total number of MAC addresses

Up to 64,0001

Up to 64,0001,2

Up to 64,0001,2

Up to 64,0001,2

Total number of IPv4 routes (ARP plus learned routes)

Up to 112,0003

Up to 144,0001,4

Up to 256,0005

Up to 256,0005

FNF entries (v4/v6)

Up to 384,000/192,000

Up to 384,000/192,000

Up to 384,000/192,0006

Up to 384,000/192,0006

DRAM

16 GB

16 GB

16 GB

16 GB

Flash

10 GB

10 GB

10 GB

10 GB

VLAN IDs

4096

4096

4096

4096

SSD capacity

960 GB

960 GB

960 GB

960 GB

Total Switched Virtual Interfaces (SVIs)

1,000

1,000

1,000

1,000

Jumbo frame

9216 bytes

9216 bytes

9216 bytes

9216 bytes

Forwarding rate

●  900 Mpps for IPv4
●  782.6 Mpps for IPv6 (@95 byte)
●  900 Mpps for IPv4
●  782.6 Mpps for IPv6 (@95 byte)
●  3 Bpps for IPv4 and IPv6
●  3 Bpps for IPv4 and IPv6

1 24,000 host + 32,000 indirect
2 Varies based on selected flexible ASIC template. Flexible ASIC template currently not supported on C9400X-SUP-2/2XL in software
3 48,000 host + 64,000 indirect
4 80,000 host + 64,000 indirect
5 Currently 112,000 IPv4/IPv6 Routes are supported without template
6 Currently 288,000/144,000 FNF entries are supported without template
