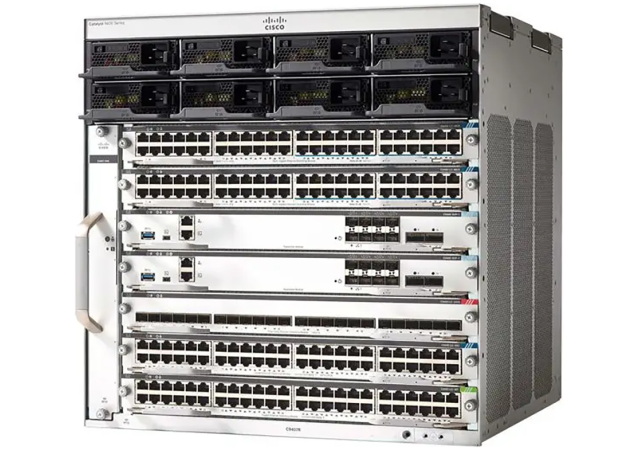

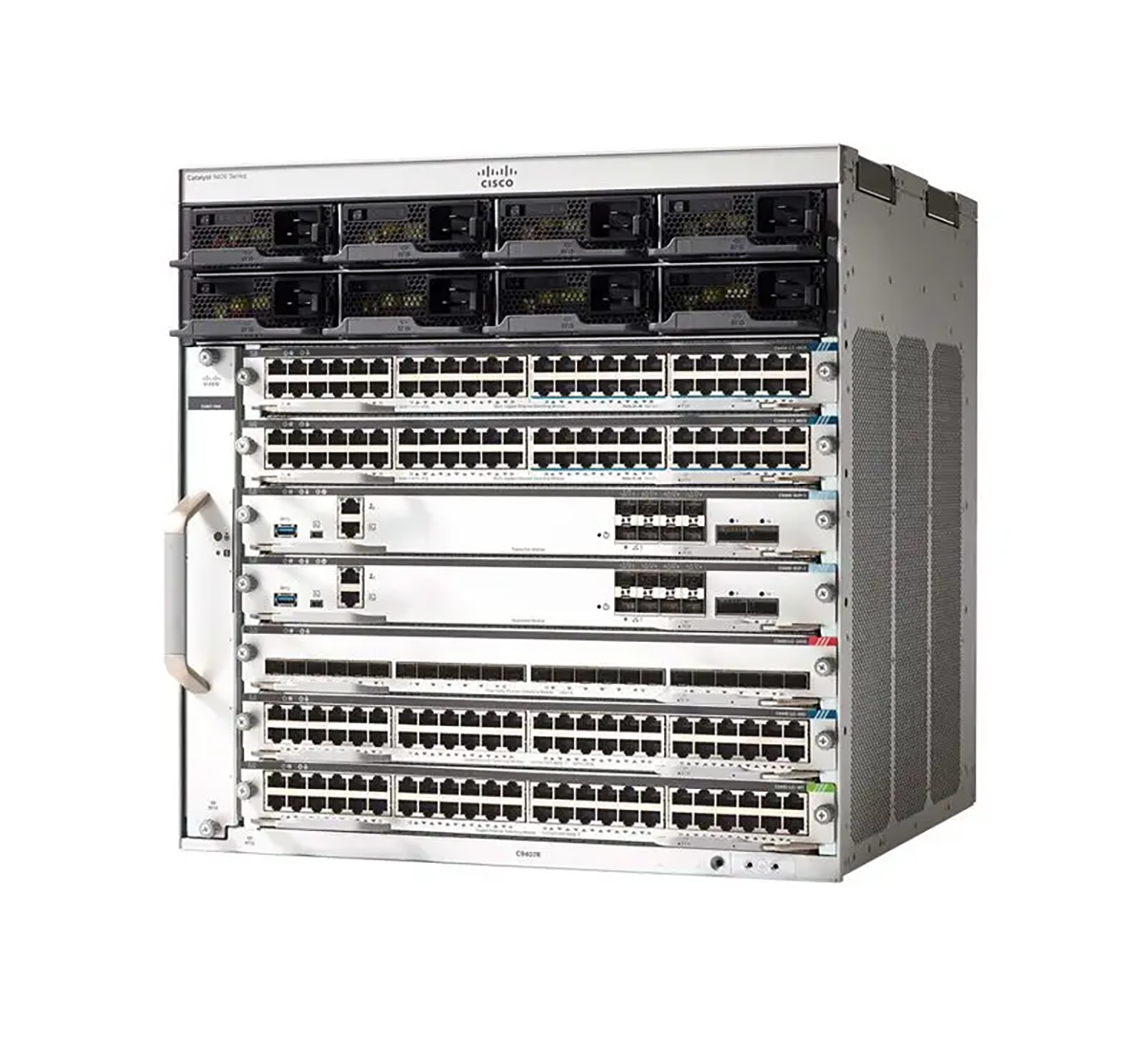

Cisco Catalyst C9407R - Network Equipment Chassis

Brand: Cisco MPN: C9407R
Available on request
Cisco Catalyst 9400 Series 7 slot chassis

£3,157.21

£3,788.65 Incl VAT

Need Help Ordering?

Call 020 3880 8840

Add to Quote
Description
Tech overview

Cisco Part Number: C9407R is a Cisco Catalyst 9400 Series 7 slot chassis

The Cisco Catalyst 9400 Series switches represent the forefront of Cisco’s modular enterprise access switching platform. As integral members of the Catalyst 9000 family, these switches are designed to revolutionize your network, adapting to the demands of a hybrid world where the workplace extends beyond traditional boundaries, endpoints exhibit diverse characteristics, and applications are distributed across various locations. With the Catalyst 9400 Series, which encompasses the Catalyst 9400 SUP-2/2XL supervisor and line cards, Cisco remains at the forefront of innovation. This ongoing commitment to advancement allows you to reshape connections, enhance security measures, and redefine the overall experience for your hybrid workforce, regardless of its size or scope.

Cisco Catalyst C9407R Chassis Overview

The Cisco Catalyst 9400 Series provides a versatile solution with three chassis options and an extensive selection of line cards. Featuring a unified architecture that can scale up to 400 ports, this series leverages Cisco StackWise Virtual technology, effectively doubling the port density by virtually stacking two Catalyst 9400 modular switches into a single logical switch.

Designed for enterprise optimization, the Catalyst 9400 Series chassis ensures efficient side-to-side airflow and complete front accessibility for all removable components. This includes supervisors, line cards, power supplies, and the fan tray. Additionally, the chassis offers optional rear accessibility for fan trays, promoting effective cable management.

For streamlined asset and inventory management, the Catalyst 9400 Series chassis, supervisors, line cards, power supplies, and fan trays are equipped with embedded RFID tags. These tags enable easy tracking and identification using standard commercial RFID readers.

Cisco Catalyst 9400 Series chassis features

Feature

Cisco Catalyst C9404R Chassis

Cisco Catalyst C9407R Chassis

Cisco Catalyst C9410R Chassis

Total number of slots

4

7

10

Line-card slots

2

5

8

Supervisor engine slots

21

22

23

Dedicated supervisor engine slot numbers

2 and 34

3 and 44

5 and 64

Supervisor engine redundancy

Yes

Yes

Yes

Supervisor engines supported

C9400X-SUP-2XL, C9400X-SUP-2,
C9400-SUP-1XL,
C9400-SUP-1XL-Y, C9400-SUP-1

C9400X-SUP-2XL, C9400X-SUP-2,
C9400-SUP-1XL,
C9400-SUP-1XL-Y, C9400-SUP-1

C9400X-SUP-2XL, C9400X-SUP-2,
C9400-SUP-1XL,
C9400-SUP-1XL-Y, C9400-SUP-1

Maximum PoE per slot

4320W5

4320W5

4320W5

Maximum Bandwidth scalability per line-card slot

Up to 480 Gbps on all slots6

Up to 480 Gbps on all slots7

Up to 480 Gbps on all slots8

Number of power supply bays

4

8

8

AC input power

Yes

Yes

Yes

Integrated PoE

Yes

Yes

Yes

Power supplies supported

3200W AC, 2100W AC,

3200W DC

3200W AC, 2100W AC,

3200W DC

3200W AC, 2100W AC,

3200W DC

Number of fan-tray bays

1

1

1

Location of 19-inch rack-mount

Front

Front

Front

1 Slots 2 and 3 are reserved for supervisor engines only in Cisco Catalyst C9404R; slots 1 and 4 are reserved for line cards.
2 Slots 3 and 4 are reserved for supervisor engines only in Cisco Catalyst C9407R; slots 1-2 and 5-7 are reserved for line cards.
3 Slots 5 and 6 are reserved for supervisor engines only in Cisco Catalyst C9410R; slots 1-4 and 7-10 are reserved for line cards.
4 Line cards are not supported in the Supervisor slots.
5 Maximum PoE mentioned is as per the current shipping line card, however chassis is capable ~4800W PoE per slot.
6 480Gbps per line-card slot when used with C9400X-SUP-2XL, 240Gbps per line card slot when used with C9400X-SUP-2, 240Gbps per line-card slot when used with C9400-SUP-1XL, C9400-SUP-1XL-Y and 80Gbps per line-card slot when used with C9400-SUP-1.
7 480Gbps per line-card slot when used with C9400X-SUP-2XL, 240Gbps per line card slot when used with C9400X-SUP-2, 120Gbps per line-card slot when used with C9400-SUP-1XL, C9400-SUP-1XL-Y and 80Gbps per line-card slot when used with C9400-SUP-1.
8 480Gbps per line-card slot when used with C9400X-SUP-2XL, 240Gbps per line card slot when used with C9400X-SUP-2, 80Gbps per line-card slot when used with C9400-SUP-1XL, C9400-SUP-1XL-Y and 80Gbps per line-card slot when used with C9400-SUP-1.
