BRAND: Cisco

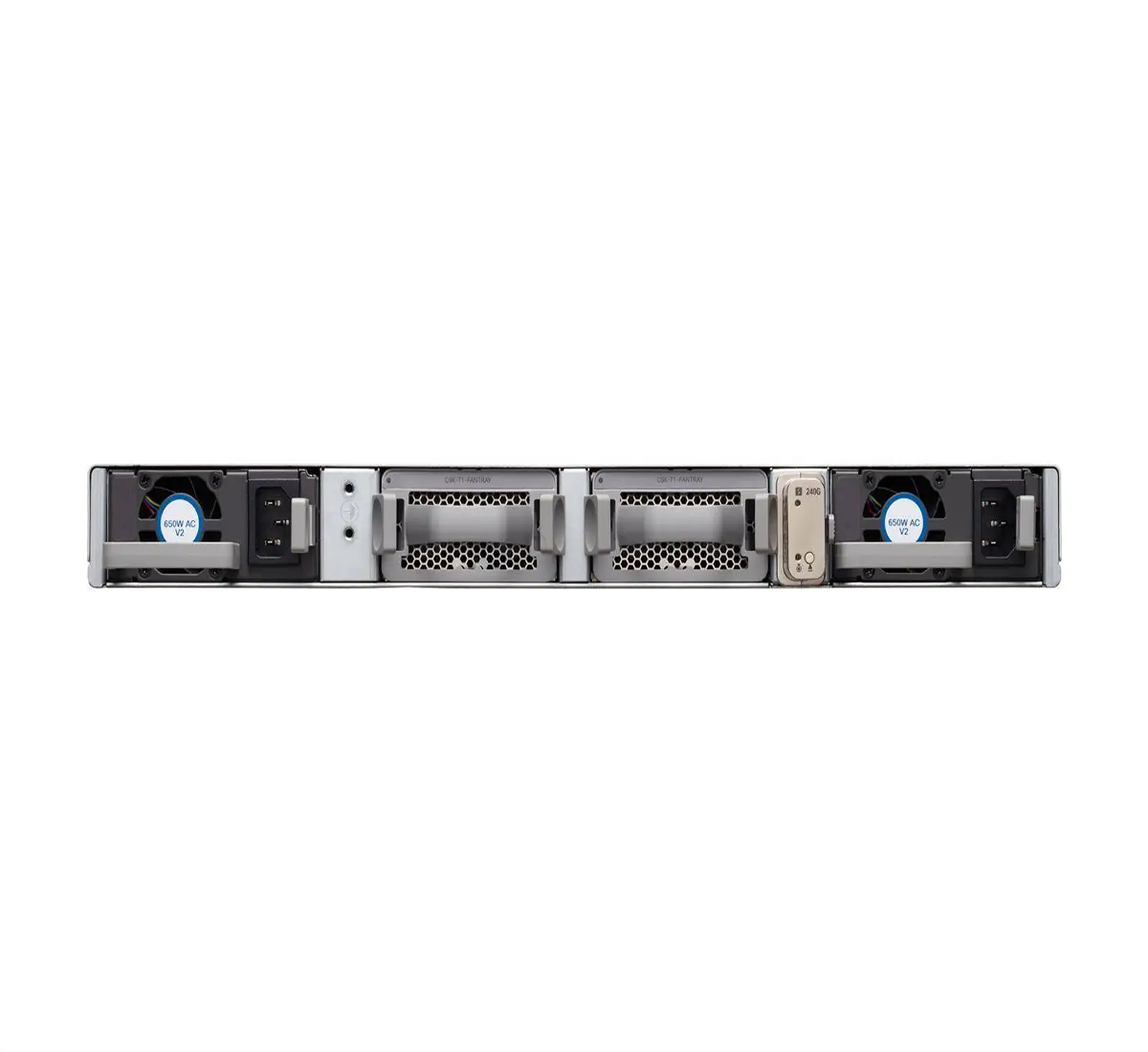

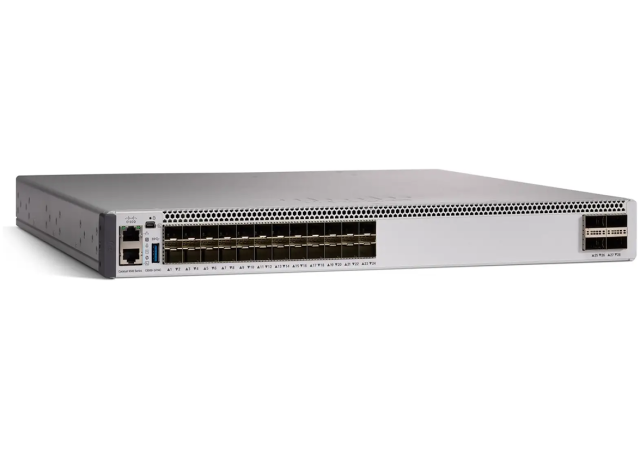

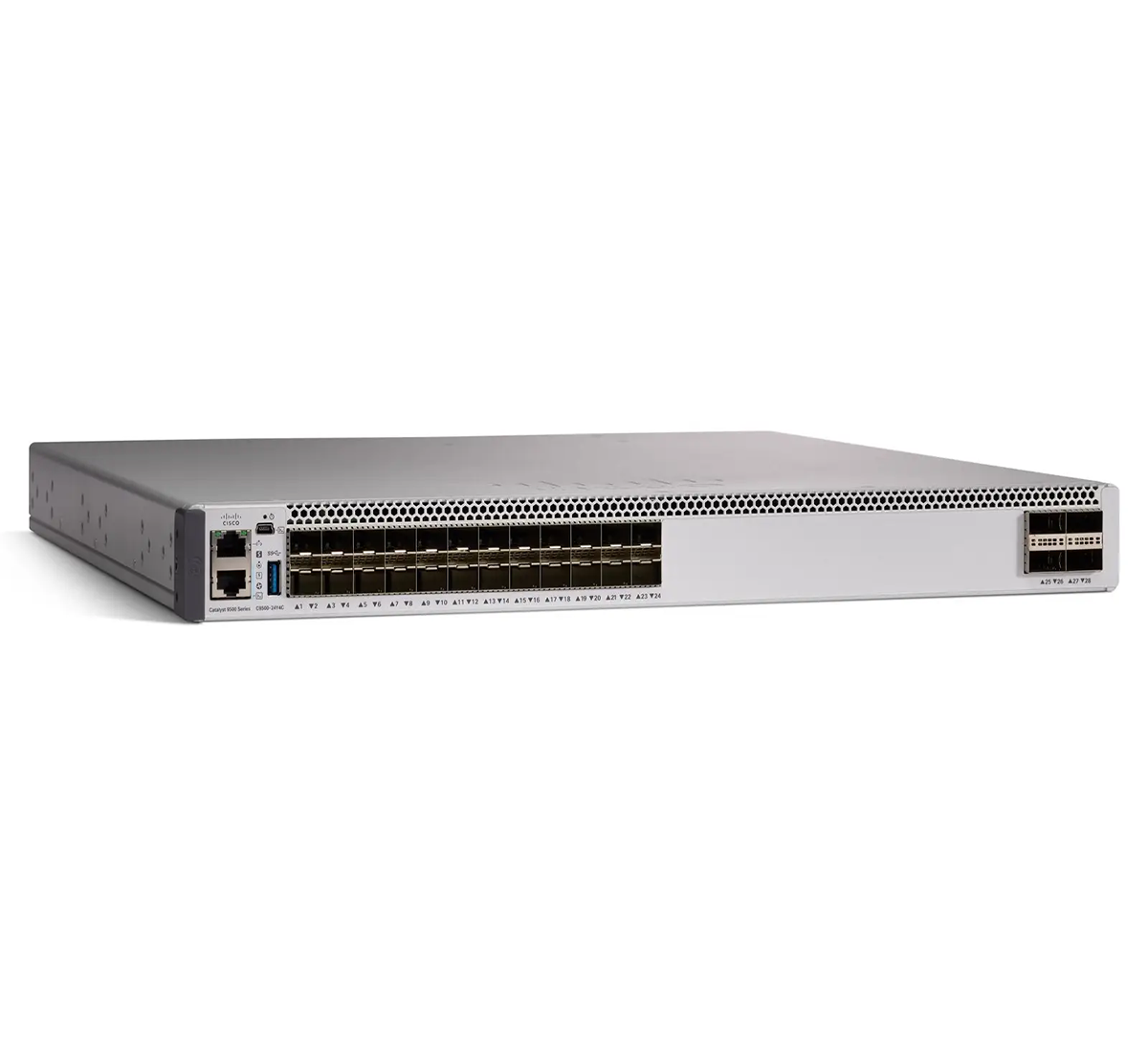

Cisco Catalyst C9500-24Y4C-A - Core and Distribution Switch

MPN: C9500-24Y4C-A
£15,604.40 Incl. VAT
Paypal Visa Mastercard American Express
Free Technical Support
Can't decide?
Free Technical Support
We can help you decide which hardware is best for you 020 3880 8840 Mon-Fri: 8AM-7PM
Tech Overview
Links & Documents

Cisco Part Number: C9500-24Y4C-A is a Cisco Catalyst 9500 Series high performance 24-port 1/10/25G switch, NW Adv. License

The Cisco Catalyst 9500X switch, powered by Cisco Silicon One Q200 ASIC, is purpose-built for the next-gen core, offering a programmable pipeline (P4). With switching capacity up to 12.8 Tbps full duplex, it excels in the enterprise, providing high-performance, full routing and switching capabilities without external memories. The Q200 ASIC, featuring on-chip High Bandwidth Memory (HBM), ensures efficient operation. The Catalyst 9500X is equipped with a high-performance multiple-core x86 CPU, serving as Cisco's premier fixed core and edge services enterprise switching platform. It caters to security, IoT, and cloud requirements, making it the industry's first fixed 10, 25, 50, 40, 100, 200, and 400 Gigabit Ethernet switch tailored for the enterprise campus. Offering unparalleled forwarding scale and deep buffering for enterprise applications, the Catalyst 9500X includes non-blocking 50 Gigabit Ethernet SFP-56 and non-blocking 400 Gigabit Ethernet QSFP-DD ports.

Cisco Catalyst 9500 Series Features:

  • Unified Access Data Plane ASIC for advanced tech support.
  • Switching capacity up to 6.4 Tbps, 2 Bpps forwarding.
  • 36 MB unified buffer per ASIC.
  • Intel 2.4-GHz x86 CPU with up to 960 GB storage.
  • Nonblocking ports: 32x100G, 32x40G, 48x25G, 48x10G.
  • Scalable Layer 3 routing and Layer 2 switching tables.
  • Hardware support for Application Hosting (e.g., Cisco ThousandEyes Enterprise Agent).
  • Built-in IEEE 802.1ba AV Bridging (AVB) for improved AV experience.
  • Precision Time Protocol (PTP) for accurate clock synchronization.
  • Support for static/dynamic NAT and Port Address Translation (PAT).
  • Cisco StackWise Virtual for operational efficiency and high resiliency.
  • Platinum-rated AC and/or DC power supplies.
  • Field-replaceable fan-tray units.
  • Meraki Cloud monitoring option available.

Catalyst C9500-24Y4C-A performance specification comparison:

Performance numbers for all switch models C9500-24Q C9500-12Q C9500-40X C9500-16X C9500-32C C9500-32QC C9500-48Y4C C9500-24Y4C-A C9500X-28C8D C9500X-60L4D
ASIC UADP 2.0 UADP 3.0 Q200
Switching capacity Up to 1920 Gbps Up to 960 Gbps Up to 960 Gbps Up to 480 Gbps Up to 6.4 Tbps2 Up to 3.2 Tbps2 Up to 3.2 Tbps2 Up to 2.0 Tbps2 Up to 12 Tbps Up to 9.2 Tbps
Forwarding rate Up to 1440 Mpps Up to 720 Mpps Up to 720 Mpps Up to 360 Mpps Up to 2 Bpps Up to 1 Bpps Up to 1 Bpps Up to 1 Bpps 8 Bpps 8 Bpps
Total number of MAC addresses Up to 64,0001 Up to 82,0001 Up to 256,0001
DRAM 16 GB 16 GB 32 GB
Flash 16 GB 16 GB 16 GB
VLAN IDs 4,094 4,094 4,094
Jumbo frame 9,198 bytes 9,216 bytes 9,216 bytes

2 Line rate for 187byte packet size and above.
