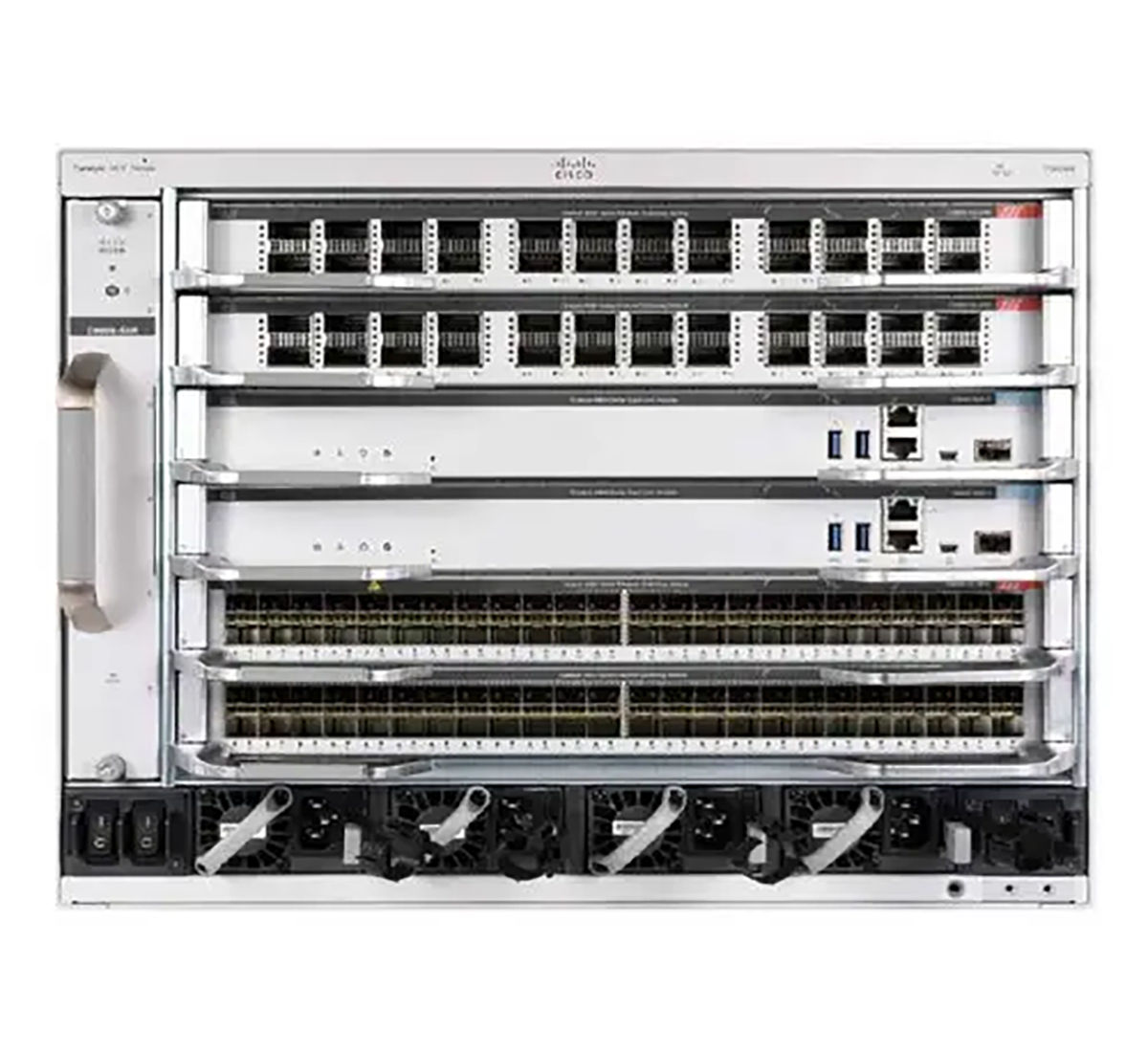

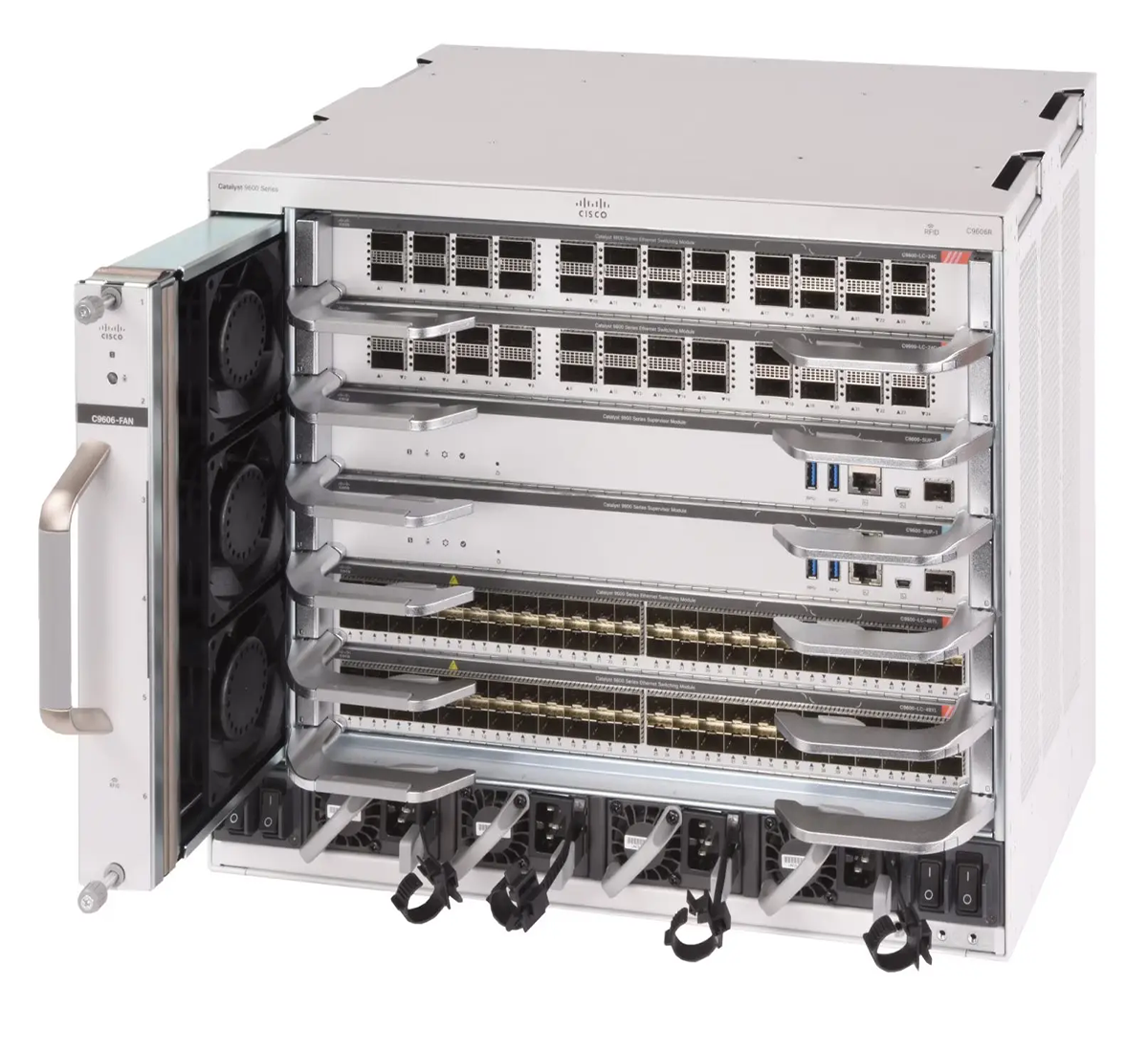

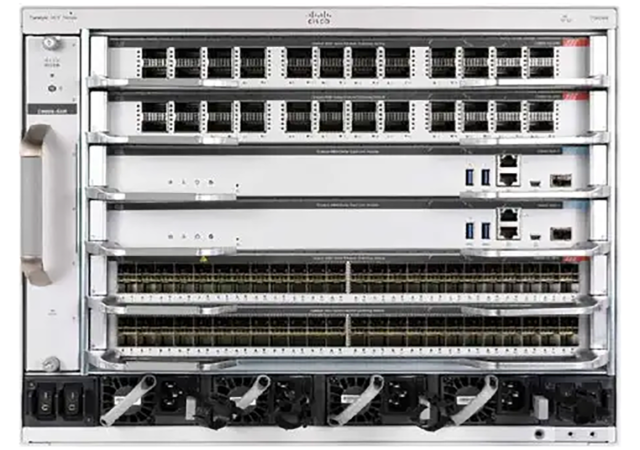

Cisco Part Number: C9606R is a Cisco Catalyst 9600 Series 6 Slot Chassis
Tailored for scalability and resilience, Cisco Catalyst 9600 Series Switches ensure unparalleled security, enabling cost-effective business expansion. Rooted in the Catalyst 9000 foundation, this series provides essential scale and security for constant operation.
Cisco Catalyst C9606R Series Chassis
- Hardware supports up to 25.6 Tbps wired switching, 6.4 Tbps per slot.
- Cisco Catalyst 9600 Series Supervisor Engine 2 unlocks 25.6 Tbps capacity, while Supervisor Engine 1 provides 9.6 Tbps and 3 Bpps.
- Future-ready for 32 ports of 400G Gigabit Ethernet QSFP-DD with Supervisor Engine 2.
- Supervisor Engine 2 accommodates 256 nonblocking 50G/25G/10G ports, while Supervisor Engine 1 offers 192 nonblocking 10G multigigabit ports.
- Supervisor Engine 2 supports 128 nonblocking 40G Ethernet ports and 96 nonblocking 40G Ethernet ports with Supervisor Engine 1.
- Options for up to 48 nonblocking 100G Ethernet ports with Supervisor Engine 1, and up to 128 with Supervisor Engine 2.
- Supervisor Engine 1 provides 192 nonblocking 10G multigigabit RJ45 copper ports; Supervisor Engine 2 supports speeds at and above 10 GBps.
- Choose platinum-rated (2KW) or titanium-rated (3KW) AC/DC power supplies for robust performance.
Chassis Features
| Feature |
Cisco Catalyst C9606R chassis |
| Total number of slots |
6 |
| Line Card slots |
4 |
| Supervisor Engine slots |
2 |
| Dedicated Supervisor Engine slot numbers |
3 and 4 |
| Supervisor Engine Redundancy |
Yes |
| Supervisor Engines Supported |
C9600-SUP-1, C9600X-SUP-2 |
| Maximum bandwidth scalability per Line Card slot |
6.4 Tbps with C9600X-SUP-2 |
| 2.4 Tbps with C9600-SUP-1 |
| Number of Power Supply bays |
4 |
| Minimum number of Power Supplies |
21 |
| Power Supplies supported |
3000W AC, 2000W AC, and 2000W DC |
| Number of Fan-tray bays |
1 |
