BRAND: Cisco

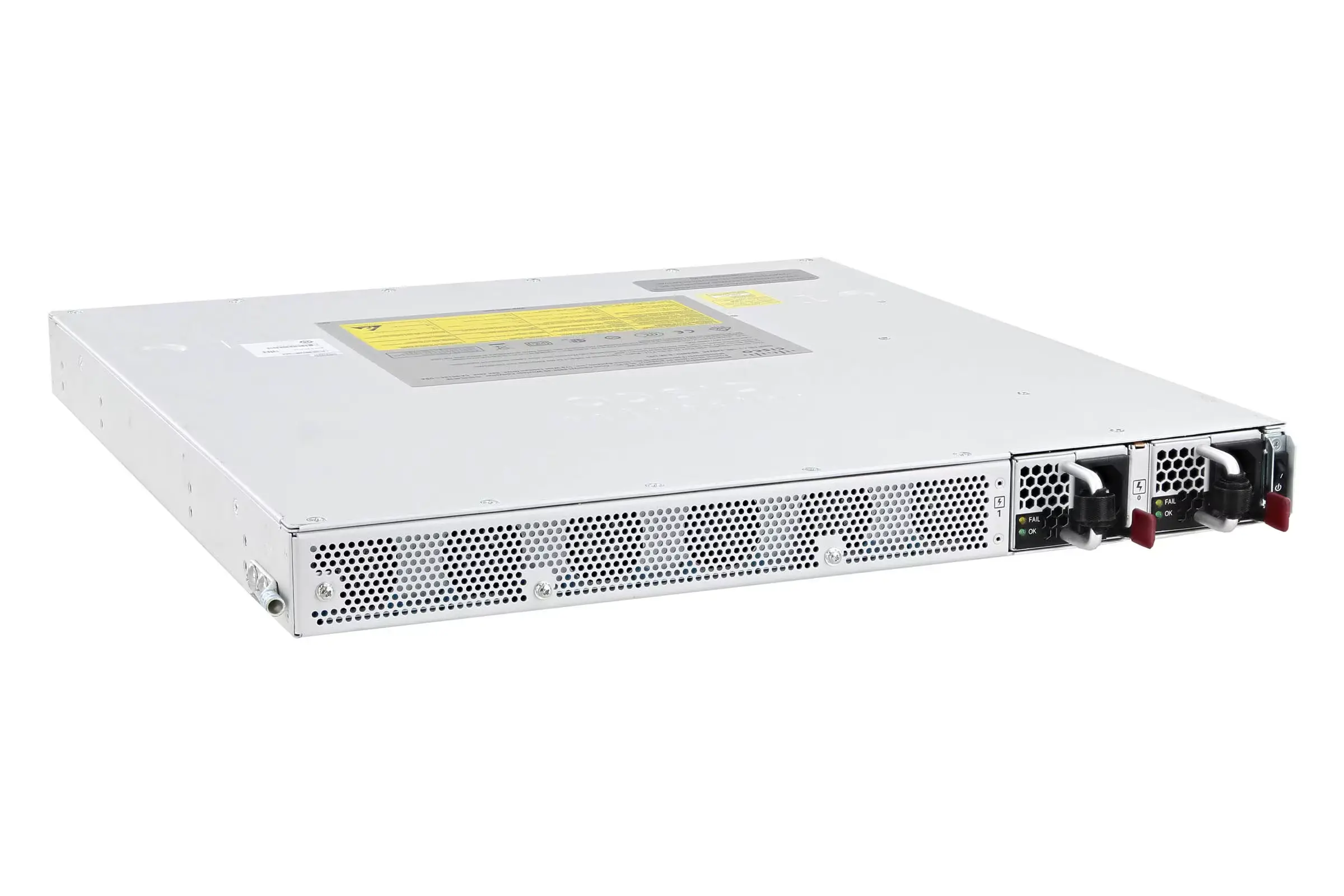

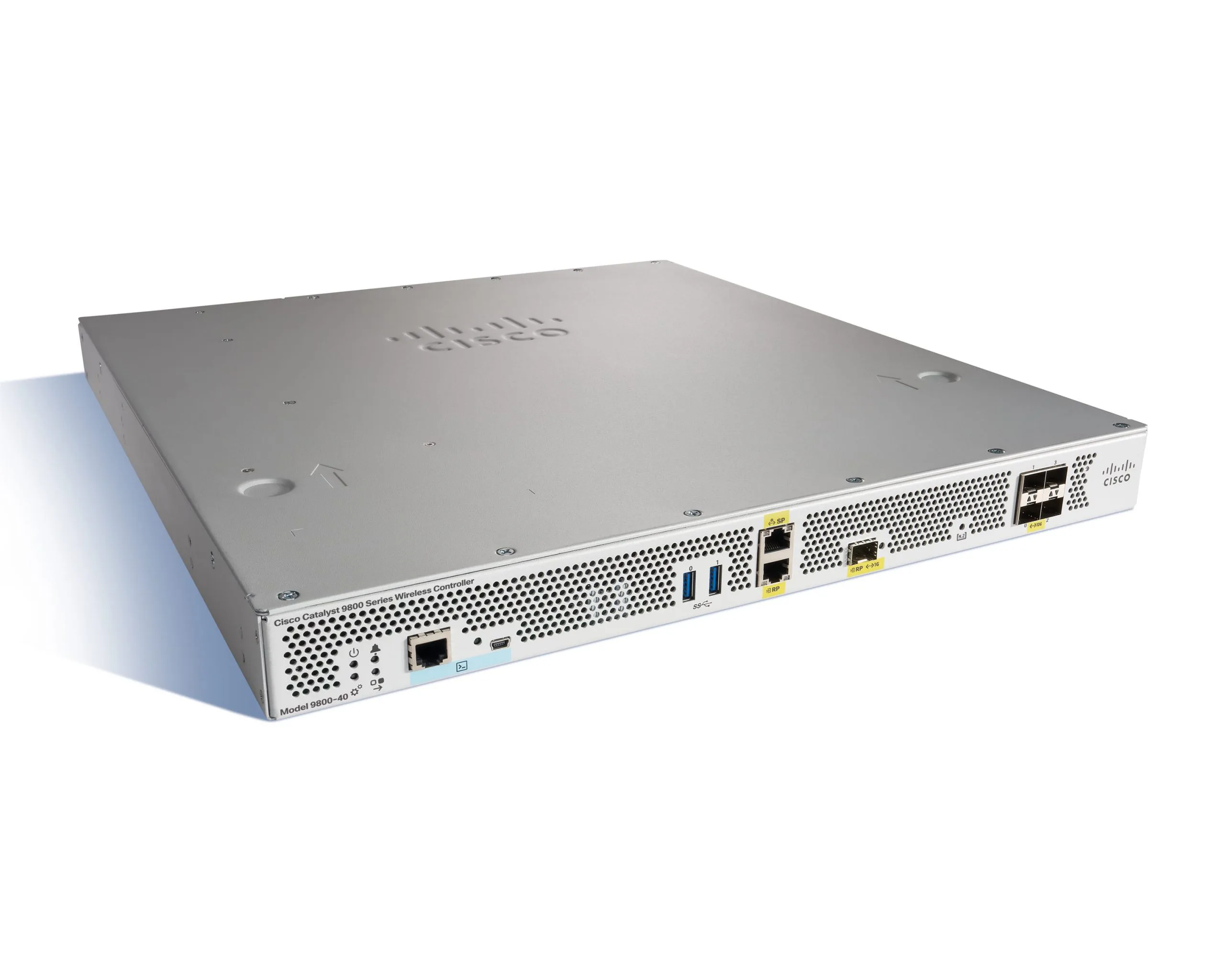

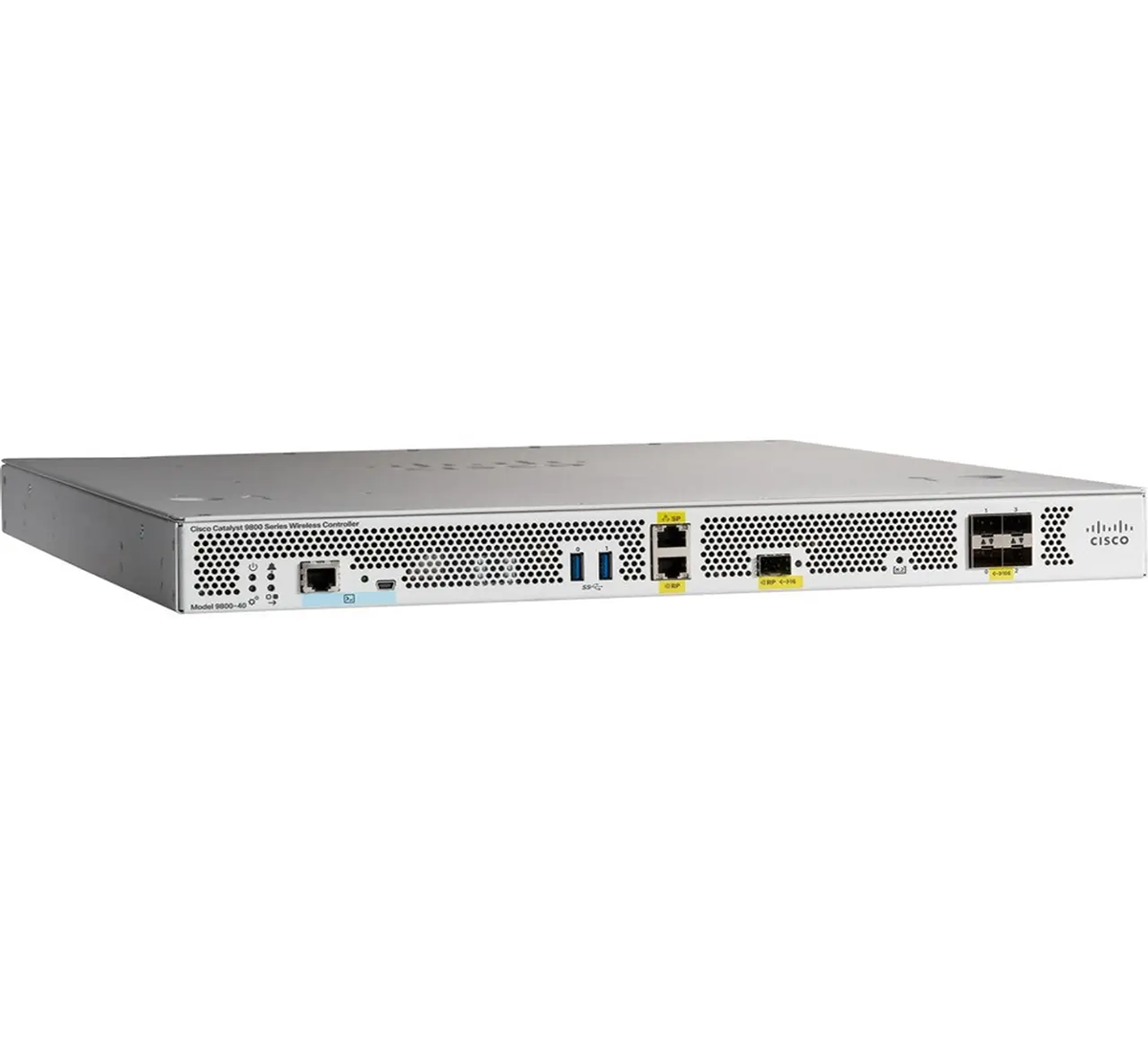

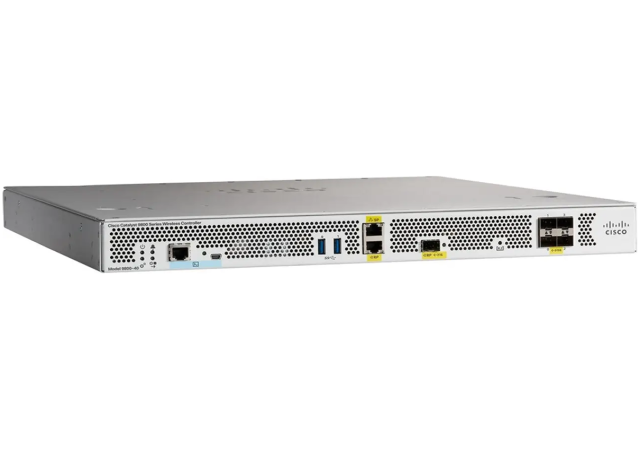

Cisco Catalyst C9800-40-K9 - Wireless Controller

MPN: C9800-40-K9
£30,793.48 Incl. VAT
Paypal Visa Mastercard American Express
Free Technical Support
Can't decide?
Free Technical Support
We can help you decide which hardware is best for you 020 3880 8840 Mon-Fri: 8AM-7PM
Tech Overview

Cisco Part Number: C9800-40-K9 is a Cisco Catalyst 9800-40 Wireless Controller

The Cisco Catalyst 9800 Series Wireless Controllers are purpose-built for intent-based networking and Cisco DNA. They run on Cisco IOS XE and seamlessly integrate the outstanding RF capabilities of Cisco Aironet access points, delivering a top-notch wireless solution for your organization's evolving needs.

This series is constructed upon an open and programmable architecture, featuring built-in security, streaming telemetry, and advanced analytics.

Based on three key pillars of network excellence—always on, secure, and deployed anywhere—the Cisco Catalyst 9800 Series strengthens your network by providing unparalleled wireless performance without sacrificing security or flexibility. This not only ensures a superior wireless experience but also saves both time and resources.

The Cisco Catalyst C9800-40-K9 Wireless Controller boasts a range of features:

  • Memory: It supports up to 32 GB of DDR3 error-correcting code (ECC) protected memory, offering single-bit error correction and multi-bit error detection.

  • Forwarding Processor: The controller is equipped with a fixed forwarding processor capable of sustaining up to 40 Gbps of data traffic throughput across the chassis.

  • Security Processing: It can handle up to 30 Gbps of security and crypto processing via a dedicated security processor.

  • Console Connectivity: Features RJ-45 console ports as well as a mini USB console port for convenient connectivity.

  • Storage: Includes 32 GB of internal bootflash storage and supports an embedded USB (eUSB) flash module for 32 GB of nonvolatile Flash storage.

  • USB Ports: Equipped with two USB 3.0 ports that are backward compatible with USB 2.0 for versatile connectivity options.

  • Hard Disk: Supports a SATA hard disk for additional storage capabilities.

  • Network Ports: Features four built-in 10 GE SFP+ ports capable of SyncE and MACsec.

  • Clocking: Offers Stratum 3E network clocking compliant with GR-1244-CORE, utilizing either 10 GE or 1 GE interfaces as timing sources.

  • Indicators: LED indicators provide status information for Ethernet and console connectivity, as well as visual system state indications.

  • Management: Provides a range of management options including command-line interface (CLI), alarms, network management, logging, statistics aggregation, and on-board failure logging (OBFL).

  • Chassis Management: Supports environmental chassis management for efficient operation.

  • TCAM: Includes 80 Mb ternary content-addressable memory (TCAM) for optimized performance.

  • Field-Replaceable Units (FRU): Components are designed to be field-replaceable, ensuring easy maintenance and upgrades.

The Cisco Catalyst 9800-40 Wireless Controller offers robust capabilities to manage and optimize wireless network operations.
