Cisco CAB-L195-10-SM-SF - RF Cable

Cisco Part Number: CAB-L195-10-SM-SF is a Cisco SMA(m) to SMA(f), LMR-195, 10 ft. cable

Cisco CAB-L195-10-SM-SF

The Cisco CAB-L195-10-SM-SF is a 10-foot, LMR-195 coaxial cable with SMA male connectors on both ends. It is specifically designed to connect external antennas to Cisco Catalyst IR1800 Series Routers in industrial applications. The cable's low-loss LMR-195 design ensures maximum signal transfer between the routers and antennas, which is crucial for high throughput and reliable connectivity in demanding environments

Key Features

• 10 ft (3.05m) Length: Provides flexibility for antenna placement.
• LMR-195 Coaxial Cable: Low-loss type designed for minimal signal degradation and optimal performance in RF applications.

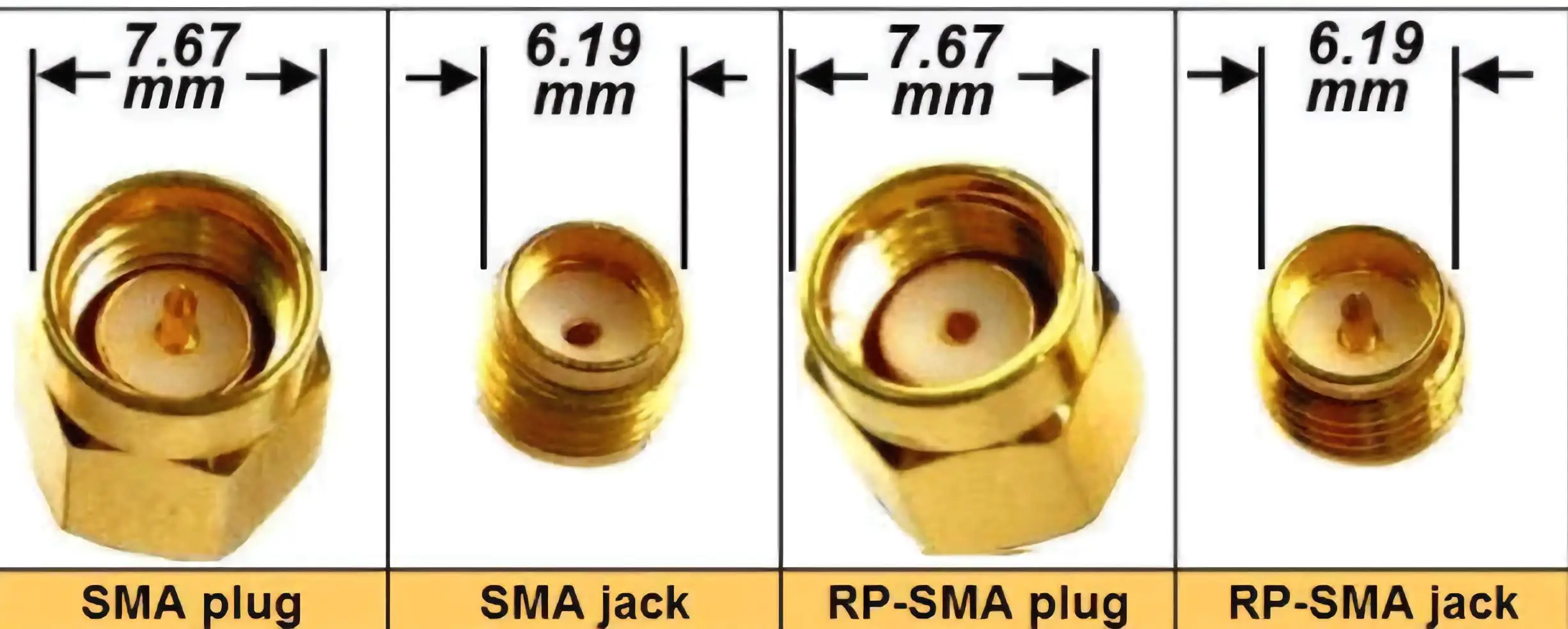

• SMA Male Connectors: Ensures compatibility with a wide range of RF equipment, including antennas and routers that utilize SMA female ports.
• Flexible and Durable: The cable's construction allows for easy installation and withstands the rigors of industrial environments.
• Low Signal Loss: Contributes to high throughput and reliable connectivity for antennas.
• Applications: Primarily used for connecting external antennas to Cisco Catalyst IR1800 Series Routers in industrial environments. It's also suitable for general RF applications requiring high-performance connections with SMA male connectors, including Wi-Fi antenna connections.

Specification:

• LMR-195, 10ft, cable
• Type: FR/CMR (Communication Cable Riser)

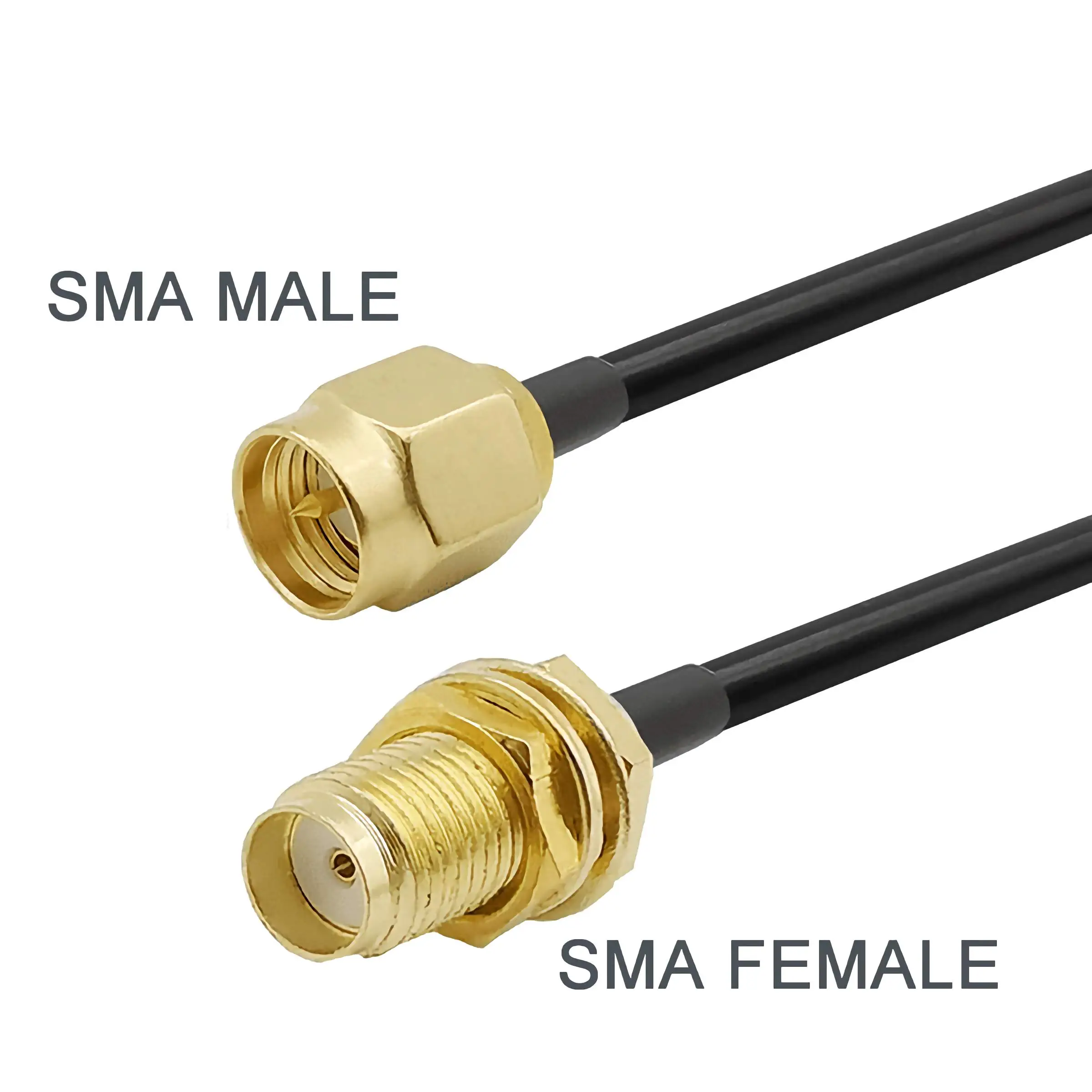

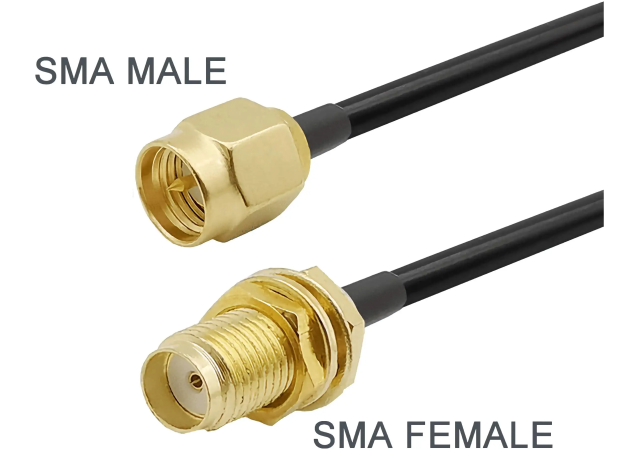

• SMA(m) to SMA(f)

RF Loss:

• 1.2 dB @ 1.0 GHz
• 2.2 dB @ 3.0 GHz
• 3.0 dB @ 5.0 GHz
• 3.6 dB @ 7.0 GHz
