BRAND: Cisco

Cisco FMC1700-K9 - Secure Firewall Management Center

MPN: FMC1700-K9
£22,998.01 Incl. VAT
Paypal Visa Mastercard American Express
Free Technical Support
Can't decide?
Free Technical Support
We can help you decide which hardware is best for you 020 3880 8840 Mon-Fri: 8AM-7PM
Tech Overview

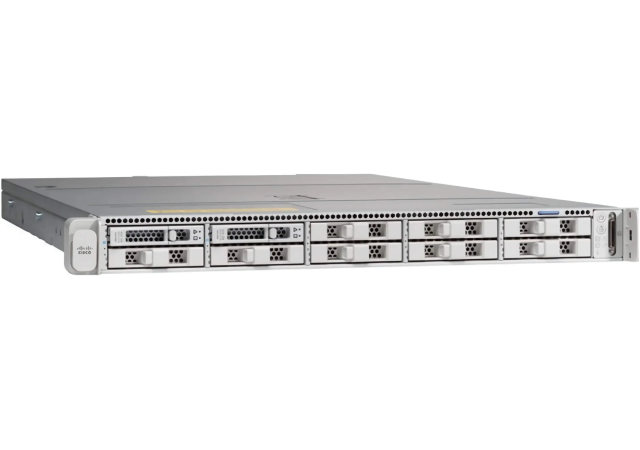

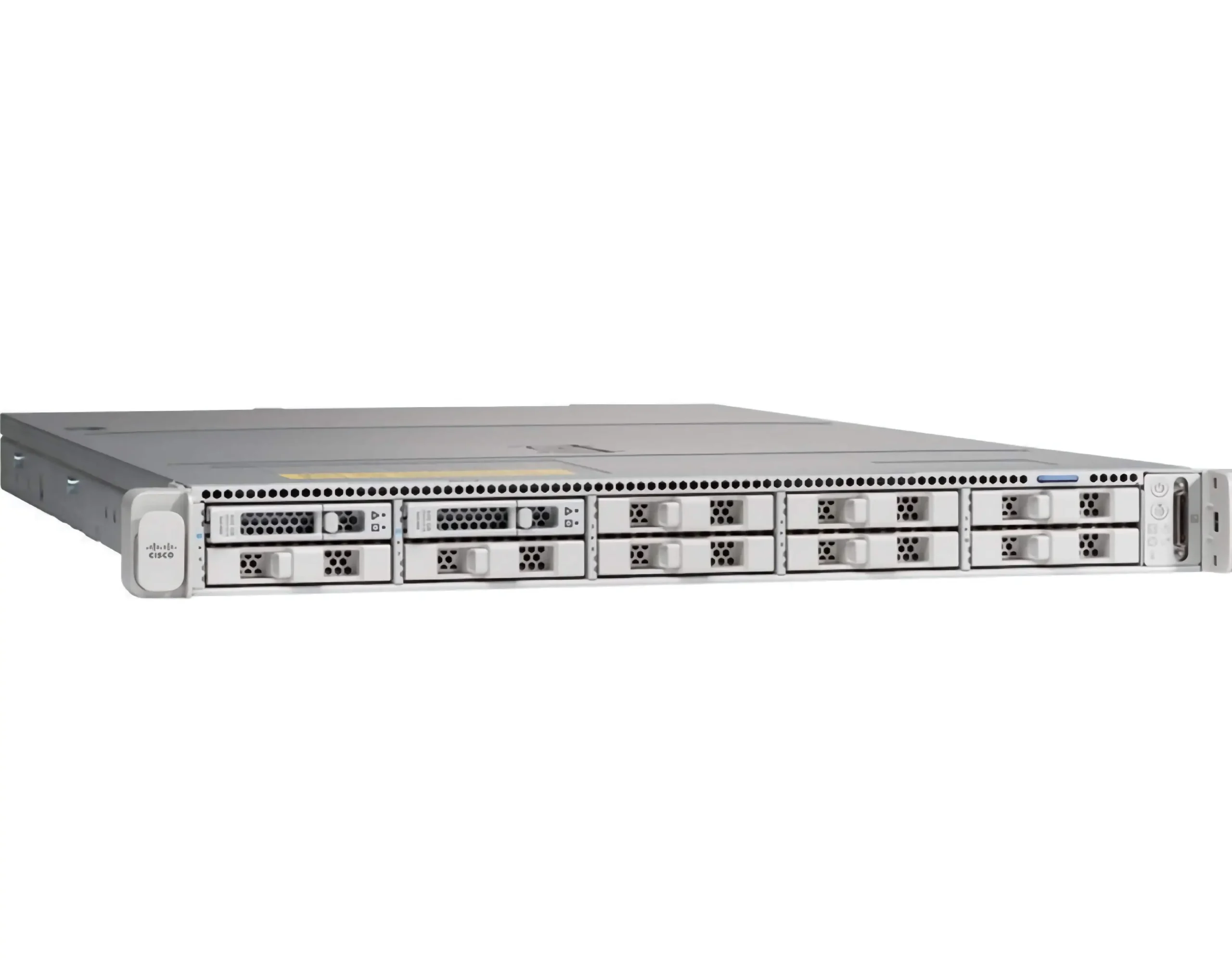

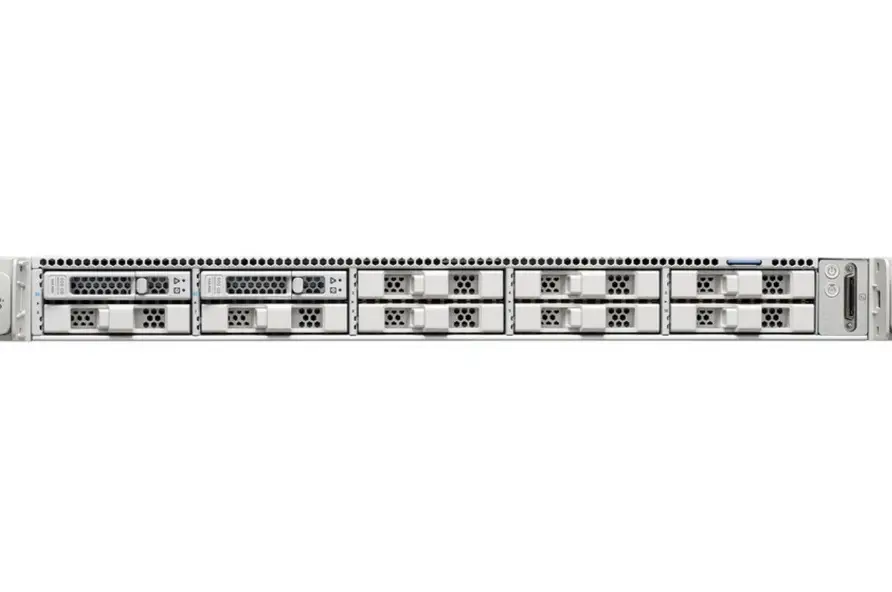

Cisco Part Number: FMC1700-K9 is a Cisco Secure Firewall Management Center 1700

The Cisco Secure Firewall Management Center (FMC) serves as the central hub for administering essential Cisco network security solutions. Offering comprehensive oversight, it allows seamless management of firewalls, application control, intrusion prevention, URL filtering, and advanced malware protection. Transition effortlessly from firewall management to application control, swiftly investigating threats and addressing malware incidents. As an integral component of the expansive Cisco Secure portfolio, it delivers thorough analysis, simplified security administration spanning both network and cloud environments, and expedited incident handling. Compatible with both Cisco and third-party technologies, it ensures holistic security management and swift response capabilities.

The Firewall Management Center is the centralized event and policy manager for:

●     Cisco Secure Firewall Threat Defense (FTD), both on-premises and virtual

●     Cisco Secure IPS (formerly Firepower NGIPS)

●     Cisco Firepower Threat Defense for ISR

●     Cisco Malware Defense (formerly Advanced Malware Protection, or AMP)

FMC1700-K9 specification:

Feature 1700
Form factor 1 RU
Rack mount Standard 19-inch (48.3 cm) 4-post EIA rack
Airflow Front to rear
Cold aisle to hot aisle
Power button On the rear panel
Processor One AMD A7232P 8-core 3.1-GHz processor
Memory 32-GB RAM
Internal component only; not field-replaceable
Two 16-GB DDR4-3200-MHz DIMMs
Management ports Two built-in 10-Gigabit Ethernet RJ45 OCP 3.0 NIC SFP+ ports (eth0 and eth1)
Support for 100/1000/10000 Mbps
The primary management port is eth0. You can use eth1, eth2, and eth3 as secondary management or event ports.
USB ports Two USB 3.0 Type A
VGA port One 3-row 15-pin DB-15 connector
Enabled by default
SFP ports Two fixed SFP+ ports (eth2 and eth3)
Serial console port RJ-45 serial port running RS-232 (RS-232D TIA-561)
System power Two 1050-W AC power supplies
Hot-swappable and redundant as 1+1
Power consumption 2626 BTU/hr
Fans Eight fans for front-to-rear cooling
Internal component only; not field-replaceable
Storage Two 1.2-TB 10-K SAS SFF HDDs
RAID 1, hot-swappable
RAID controller 1
The chassis has a dedicated internal riser for a PCIe-style Cisco modular RAID controller card.
Internal component only; not field replaceable.
