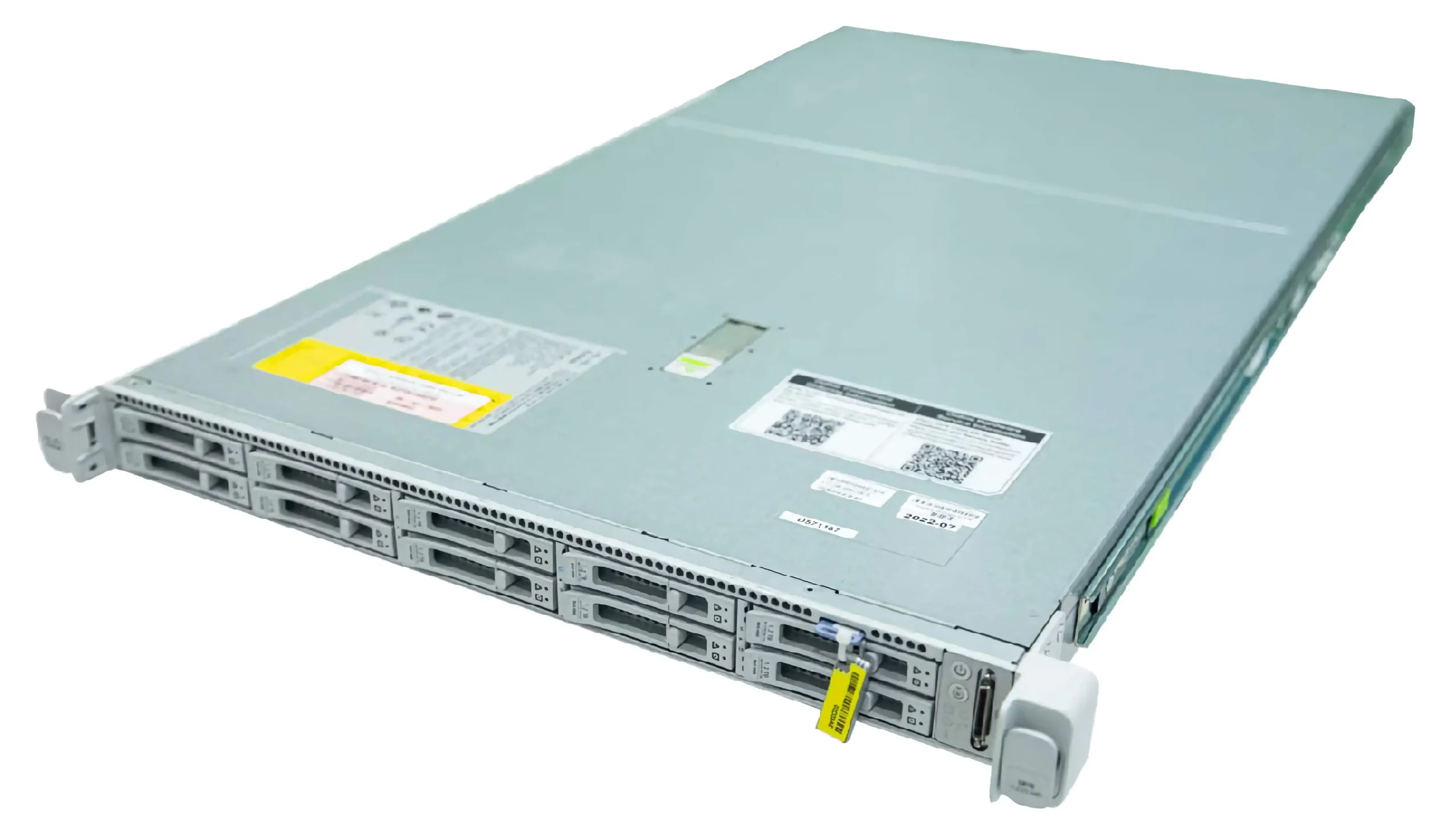

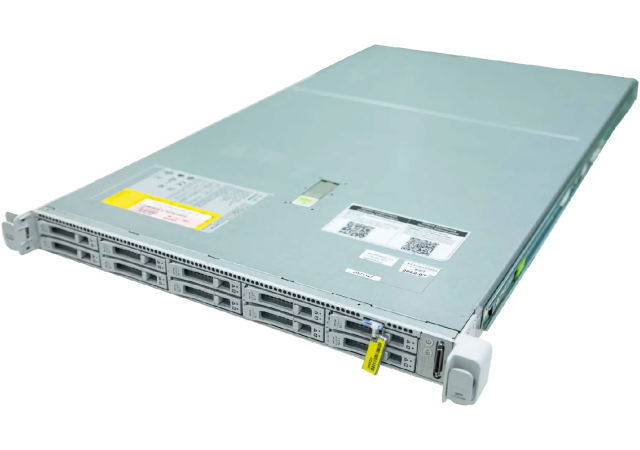

Cisco Part Number: FMC4700-K9 is a Cisco Secure Firewall Management Center 4700
The Cisco Secure Firewall Management Center (FMC) serves as the central hub for administering essential Cisco network security solutions. Offering comprehensive oversight, it allows seamless management of firewalls, application control, intrusion prevention, URL filtering, and advanced malware protection. Transition effortlessly from firewall management to application control, swiftly investigating threats and addressing malware incidents. As an integral component of the expansive Cisco Secure portfolio, it delivers thorough analysis, simplified security administration spanning both network and cloud environments, and expedited incident handling. Compatible with both Cisco and third-party technologies, it ensures holistic security management and swift response capabilities.
The Firewall Management Center is the centralized event and policy manager for:
● Cisco Secure Firewall Threat Defense (FTD), both on-premises and virtual
● Cisco Secure IPS (formerly Firepower NGIPS)
● Cisco Firepower Threat Defense for ISR
● Cisco Malware Defense (formerly Advanced Malware Protection, or AMP)
FMC4700-K9 specification:
| Feature | 4700 |
|---|---|
| Form factor | 1 RU |
| Rack mount | Standard 19-inch (48.3 cm) 4-post EIA rack |
| Airflow | Front to rear Cold aisle to hot aisle |
| Power button | On the rear panel |
| Processor | One AMD A7352 24-core 2.3-GHz processor |
| Memory | 128-GB RAM |
| RDIMMs Internal component only; not field-replaceable |
Eight 16-GB DDR4-3200-MHz DIMMs |
| Management ports | Two built-in 10-Gigabit Ethernet RJ45 OCP 3.0 NIC SFP+ ports (eth0 and eth1) Support for 100/1000/10000 Mbps The primary management port is eth0. You can use eth1, eth2, and eth3 as secondary management or event ports. |
| USB ports | Two USB 3.0 Type A |
| VGA port | One 3-row 15-pin DB-15 connector Enabled by default |
| SFP ports | Two fixed SFP+ ports (eth2 and eth3) |
| Serial console port | RJ-45 serial port running RS-232 (RS-232D TIA-561) |
| System power | Two 1050-W AC power supplies Hot-swappable and redundant as 1+1 |
| Power consumption | 2626 BTU/hr |
| Fans | Eight fans for front-to-rear cooling Internal component only; not field-replaceable |
| Storage | Ten 1.2-TB 10-K SAS SFF HDDs RAID 6, hot-swappable |
| RAID controller | 1 The chassis has a dedicated internal riser for a PCIe-style Cisco modular RAID controller card. Internal component only; not field replaceable. |
