Cisco Part Number: GPS-ACT-ANTM-SMA= is a Cisco 4G LTE indoor active GPS antenna with 17ft cable

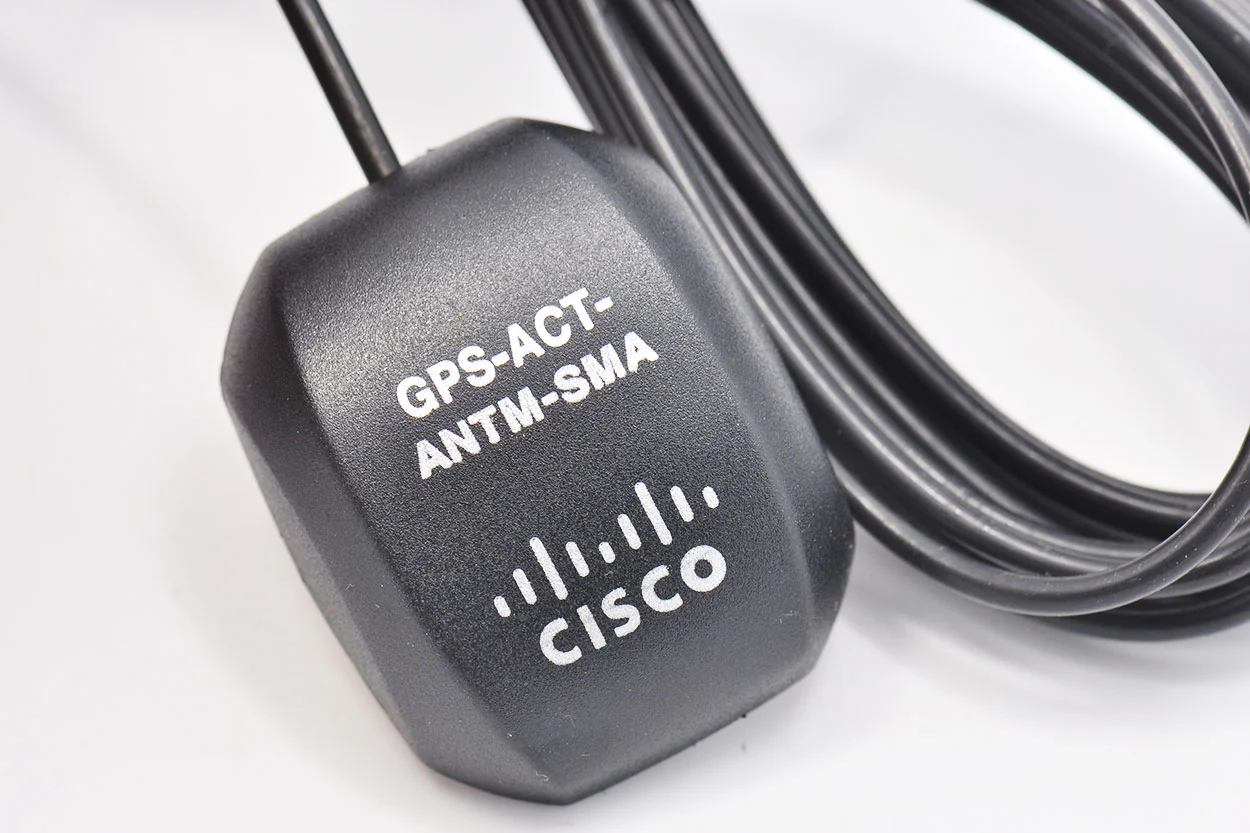

Cisco GPS-ACT-ANTM-SMA=: Indoor/Outdoor Active GPS Antenna
The Cisco GPS-ACT-ANTM-SMA= is a high-performance active GPS antenna designed for both indoor and outdoor applications. It provides reliable GPS signal reception for Cisco Integrated Services Routers (ISRs) and Enhanced High-Speed WAN Interface Cards (EHWICs), ensuring accurate location tracking and timing synchronization.
Key Features
- Wide Frequency Range: Operates between 1574.42 MHz and 1576.42 MHz, suitable for GPS applications.
- High Gain: Offers a maximum peak gain of 4 dBi, enhancing signal reception quality.
- Low Noise Figure: Features a typical noise figure of 1.5 dB at 25°C, ensuring clear signal amplification.
- Robust Design: Built to withstand harsh environments with an operating temperature range of –40° to 85°C and shock resistance up to 50G.

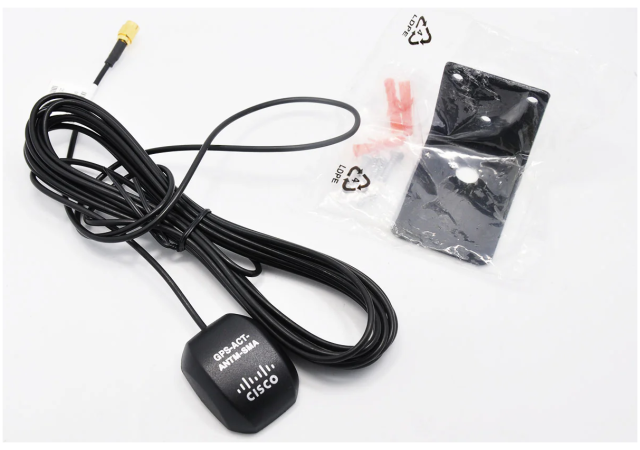

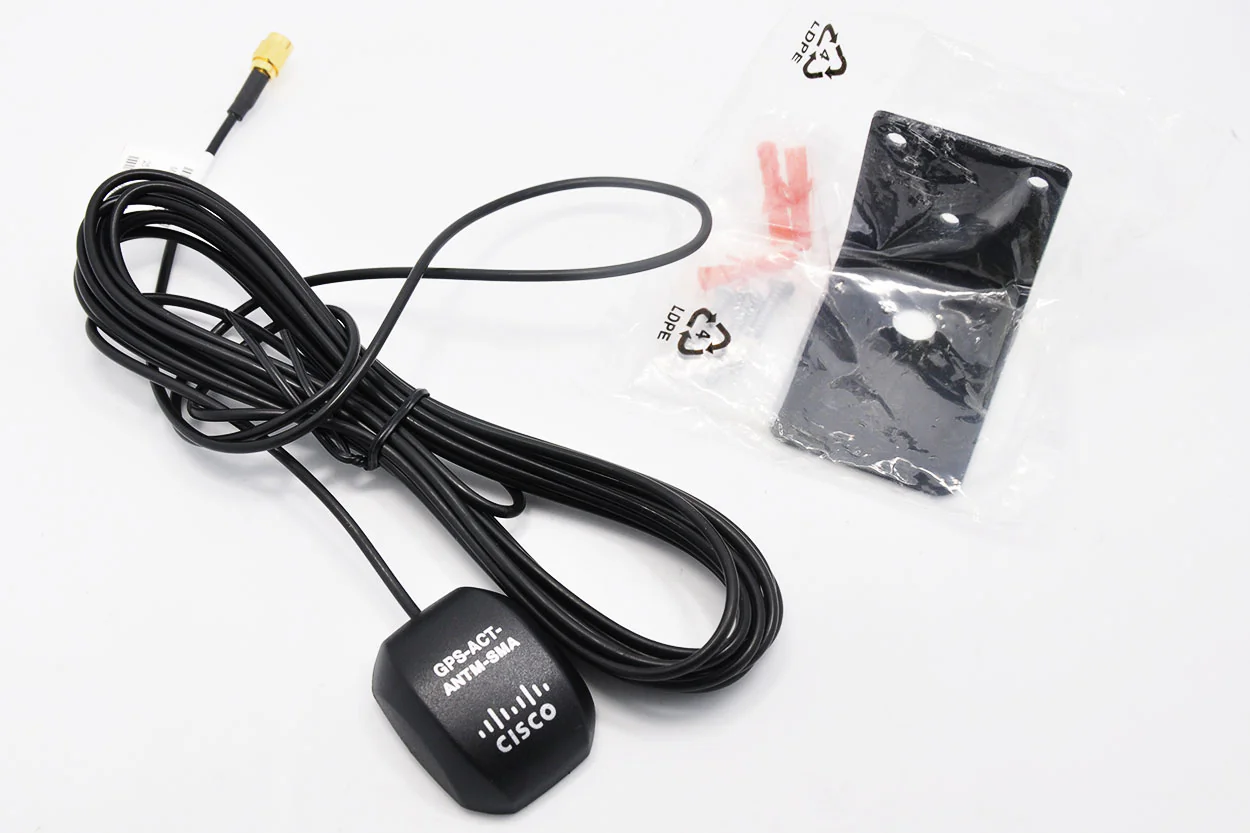

- Versatile Mounting Options: Includes a 17-foot (5.18 meters) cable and supports both bracket and magnetic mounting for flexible installation.
- Standard Connector: Equipped with an SMA male connector, compatible with various Cisco devices.
Technical Specifications
| Specification |
Details |
| Frequency Range |
1574.42 – 1576.42 MHz |
| Gain |
4 dBi |
| Noise Figure |
1.5 dB typical @25°C |
| VSWR |
2:1 or less |
| Impedance |
50 Ohms |
| Polarization |
Right-Hand Circular Polarized (RHCP) |
| Connector Type |
SMA Male |
| Cable Length |
17 ft (5.18 meters) |
| Operating Temperature |
–40° to 85°C (–40° to 185°F) |
| Dimensions |
1.7" L x 1.4" W x 0.55" H (44 x 36 x 14 mm) |
| Color |
Black |
| Mounting Options |
Wall mount with bracket or magnetic mount |
Installation Guidelines
- Ensure the antenna has a clear view of the sky for optimal GPS signal reception.
- Avoid placing the antenna near large metal objects or sources of RF interference.
- For indoor installations, position the antenna near a window to maximize signal strength.
- Use the provided bracket and screws for secure wall mounting, or utilize the magnetic base for temporary setups.
The Cisco GPS-ACT-ANTM-SMA= antenna is an essential component for organizations requiring precise GPS data for network synchronization and location-based services. Its durable construction and flexible installation options make it suitable for a wide range of deployment scenarios.
