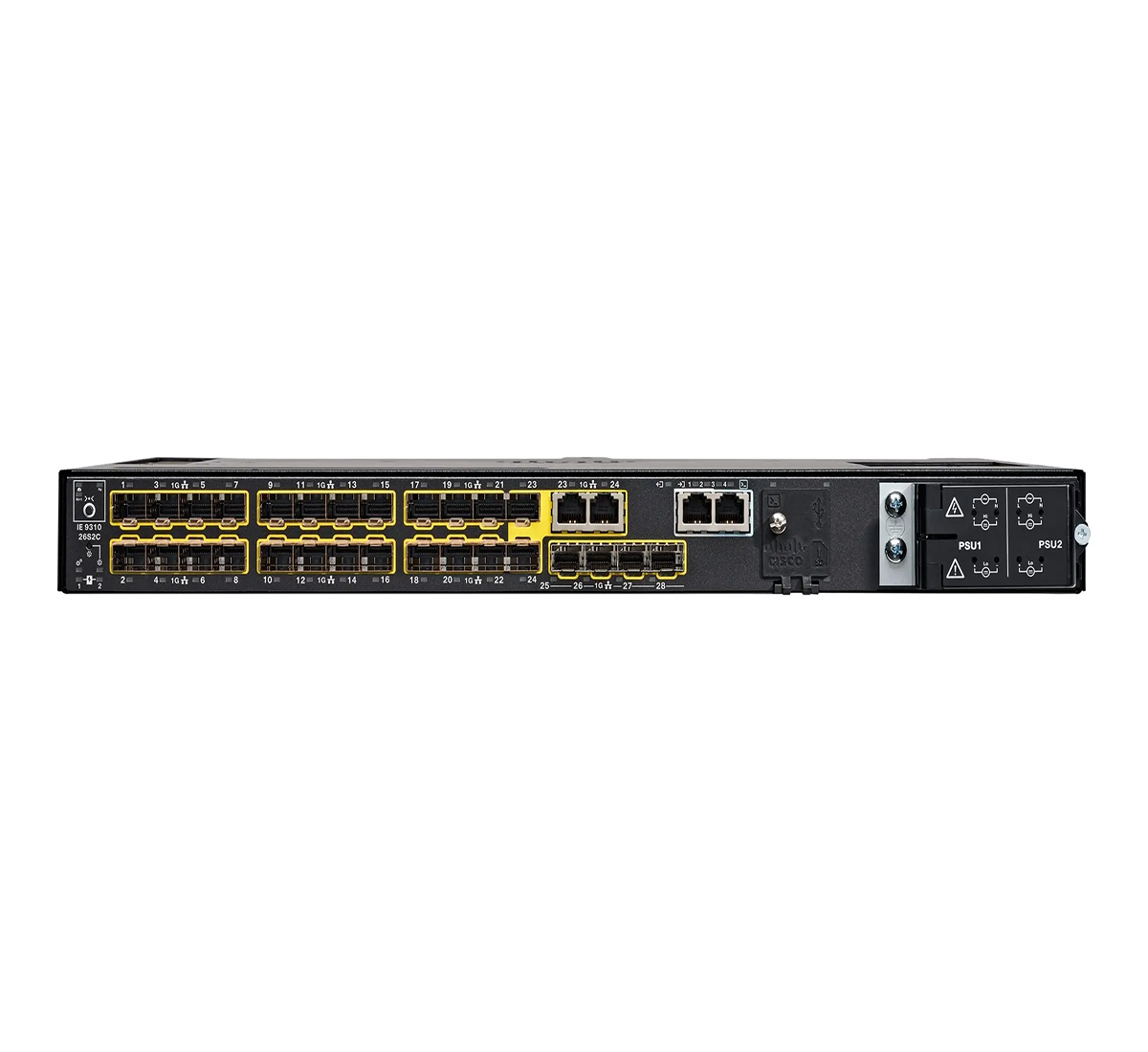

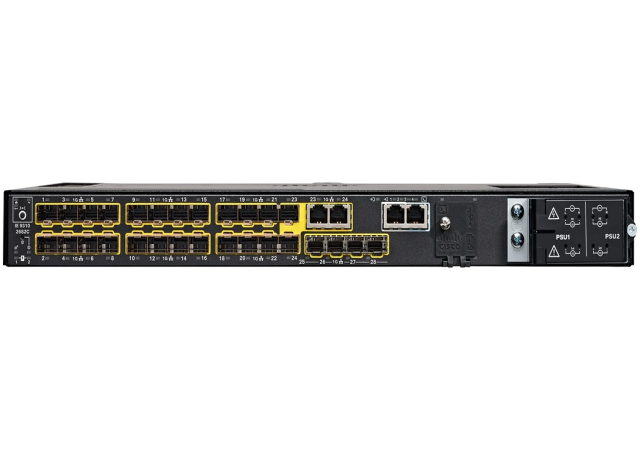

Cisco Catalyst IE-9310-26S2C-E - Industrial Switch

Brand: Cisco MPN: IE-9310-26S2C-E
Available on request
Catalyst IE9300 w/ 24 Ports GE SFP Downlinks and 4 Ports GE SFP uplinks, NE

£4,432.84

£5,319.41 Incl VAT

Need Help Ordering?

Call 020 3880 8840

Add to Quote
Description
Tech overview

Cisco Part Number: IE-9310-26S2C-E is a Catalyst IE9300 w/ 24 Ports GE SFP Downlinks and 4 Ports GE SFP uplinks, NE

The Cisco Catalyst IE9300 Rugged Series switches boast 28 ports of both Gigabit and 10 Gigabit Ethernet interfaces, offering swift Ethernet connectivity in a compact design tailored for various industrial applications that demand resilient equipment. Specifically engineered for durability, these switches are well-suited for challenging environments found in manufacturing, energy, transportation, mining, smart cities, and oil and gas sectors. Whether deployed in outdoor enclosures or exposed to harsh conditions, these switches adhere to overall IT network design principles, compliance standards, and performance requirements.

Powered by the Cisco IOS XE operating system, these switches incorporate essential security features such as Secure Boot, image signing, and the Cisco® Trust Anchor module, ensuring a foundation of trust and integrity. The Cisco IOS XE operating system also facilitates API-driven configuration, supporting open APIs and data models.

For efficient management, the Cisco Catalyst IE9300 Rugged Series can be easily controlled using the robust Cisco Catalyst Center management tool. Additionally, the switches offer a user-friendly and redesigned graphical user interface (GUI) tool named WebUI for straightforward setup and configuration.

Delivering advanced monitoring capabilities, the platform supports Full Flexible NetFlow (FNF), providing real-time visibility into traffic patterns and enabling threat analysis. This is complemented by compatibility with Cisco Cyber Vision and Cisco Secure Network Analytics, enhancing the switches’ capabilities in identifying and mitigating potential security threats.

IE-9310-26S2C-E for deployments that need high-density fiber access ports and easy scalability:

  • ​​​​26 GE fiber and 2 GE dual-media ports
  • ​​Advanced industrial security and lossless resiliency protocols

Hardware configuration

Product number Total ports Downlinks Uplinks
(SFP/SFP+)
Software license
(default)
IE-9310-26S2C-E 28 22 ports 100/1000M SFP and 2 ports Dual-Media (100/1000M SFP or 10/100/1000M RJ45) 4 ports 100/1000M Network Essentials



Hardware specifications

Hardware specification IE-9310-26S2C-E IE-9320-26S2C-E/-A
IE-9320-22S2C4X-E/-A
IE-9320-24P4S-E/-A
IE-9320-24T4X-E/-A
IE-9320-24P4X-E/-A
IE-9320-24P4X-E/-A
IE-9320-16P8U4X-E/-A
Hardware 4-GB DRAM
8-GB onboard flash memory1
4-GB DRAM
8-GB onboard flash memory1
Removable storage USB2,3, SD card2 USB2,3, SD card2
Alarms 4 dry-contact alarm inputs
1 dry-contact Form-C relay alarm output
4 dry-contact alarm inputs
1 dry-contact Form-C relay alarm output
Console ports 1 RS-232 (via RJ-45), 1 Micro USB 1 RS-232 (via RJ-45), 1 Micro USB
Power inputs Dual AC/DC power inputs Dual AC/DC power inputs
Cisco StackWise ports 2 stacking ports

1 User-accessible flash memory is approximately 2.5 GB.

2 The SD card and USB are optional and are not shipped by default with the switch.
3 USB 2.0 to load system images and set configurations.
