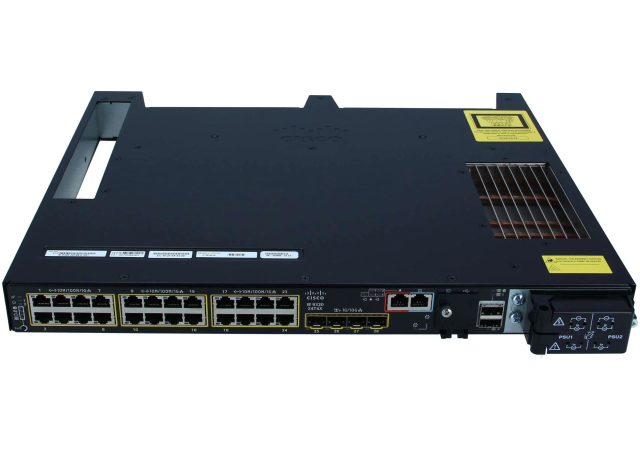

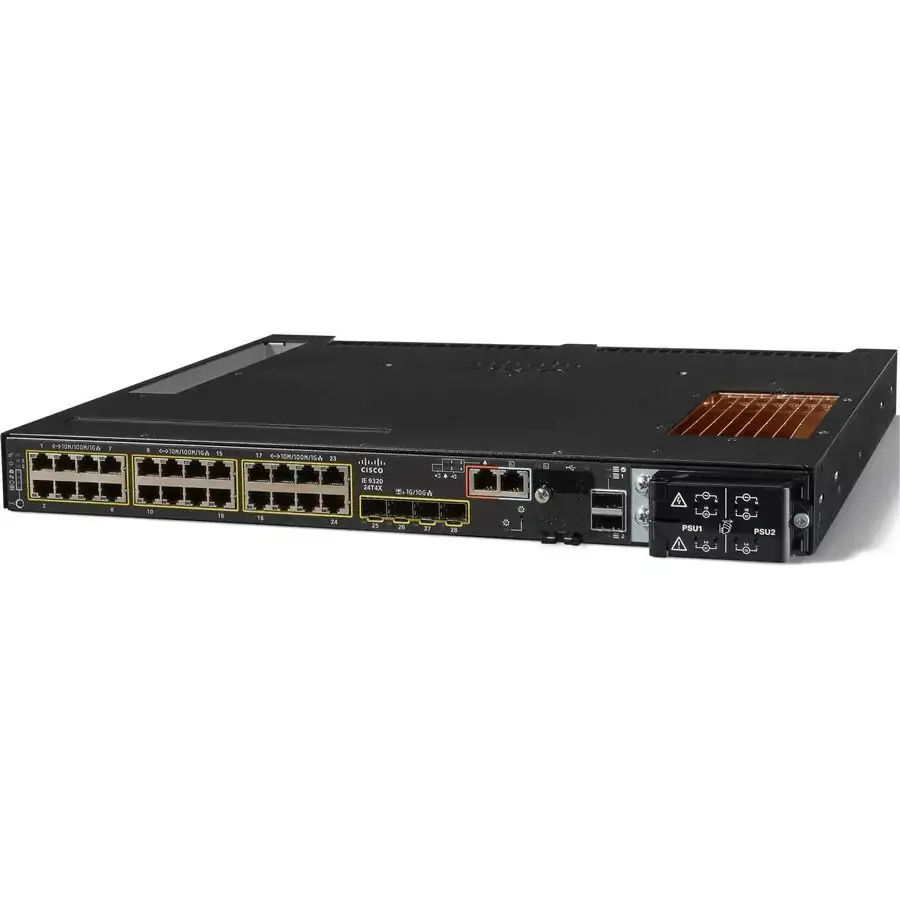

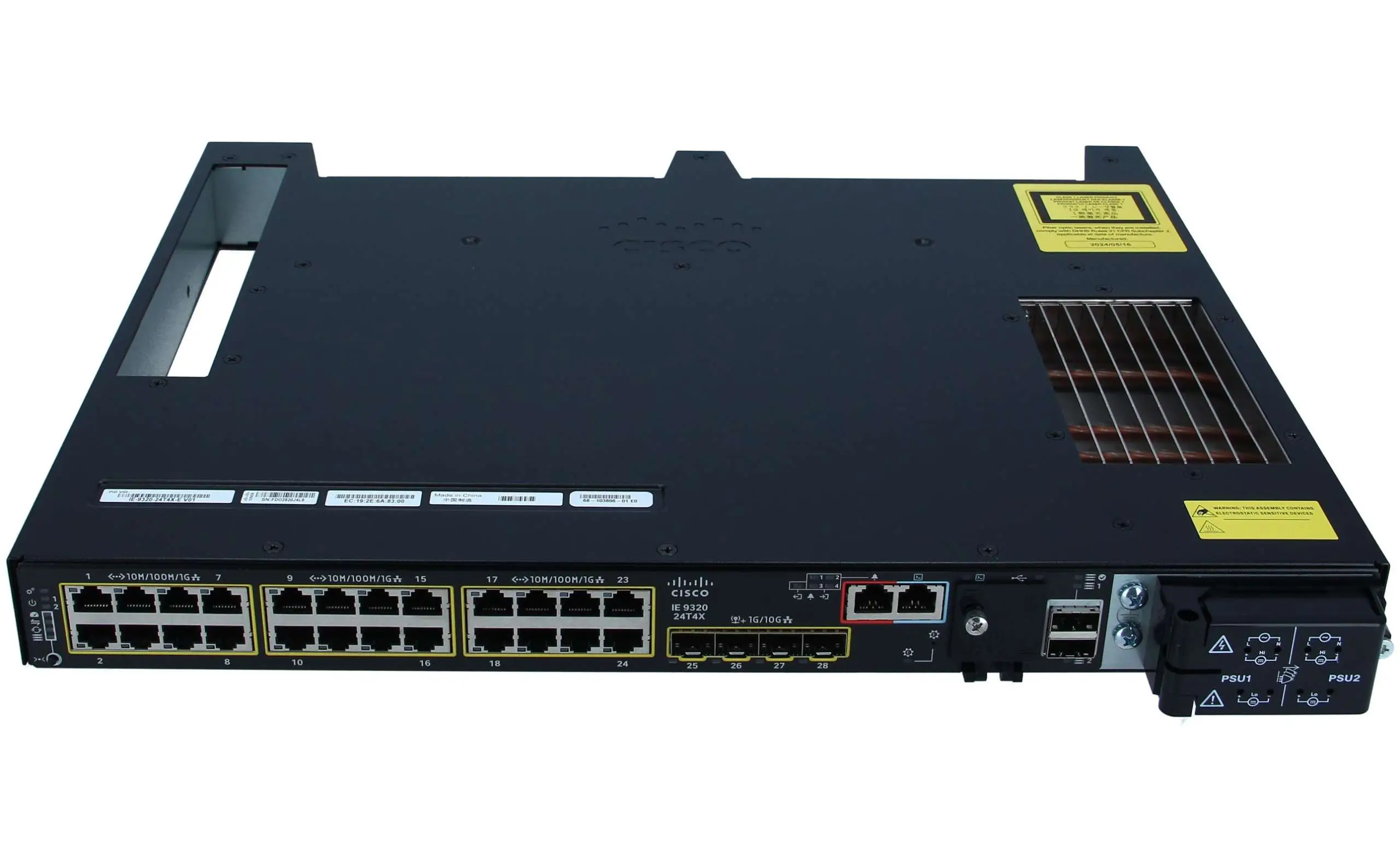

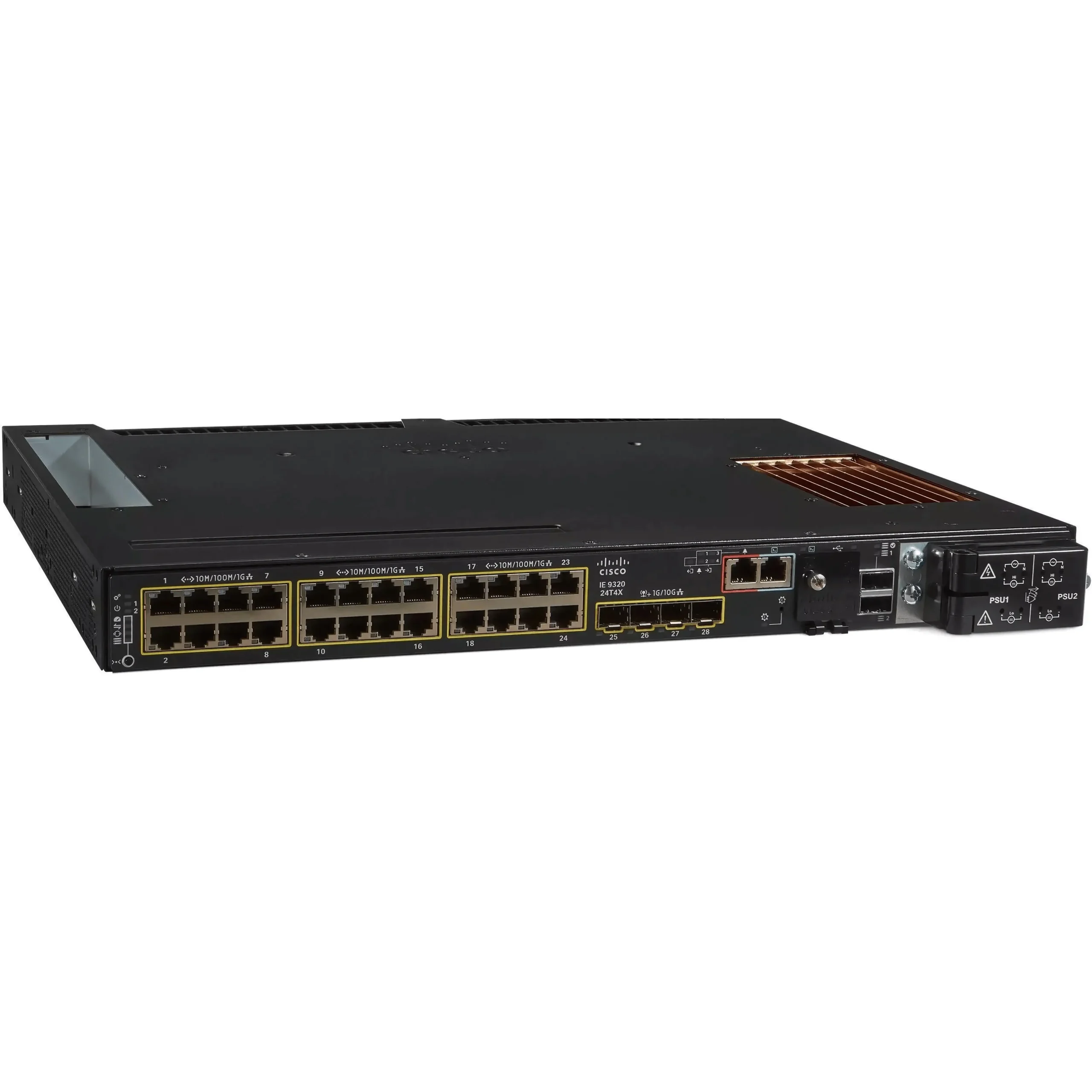

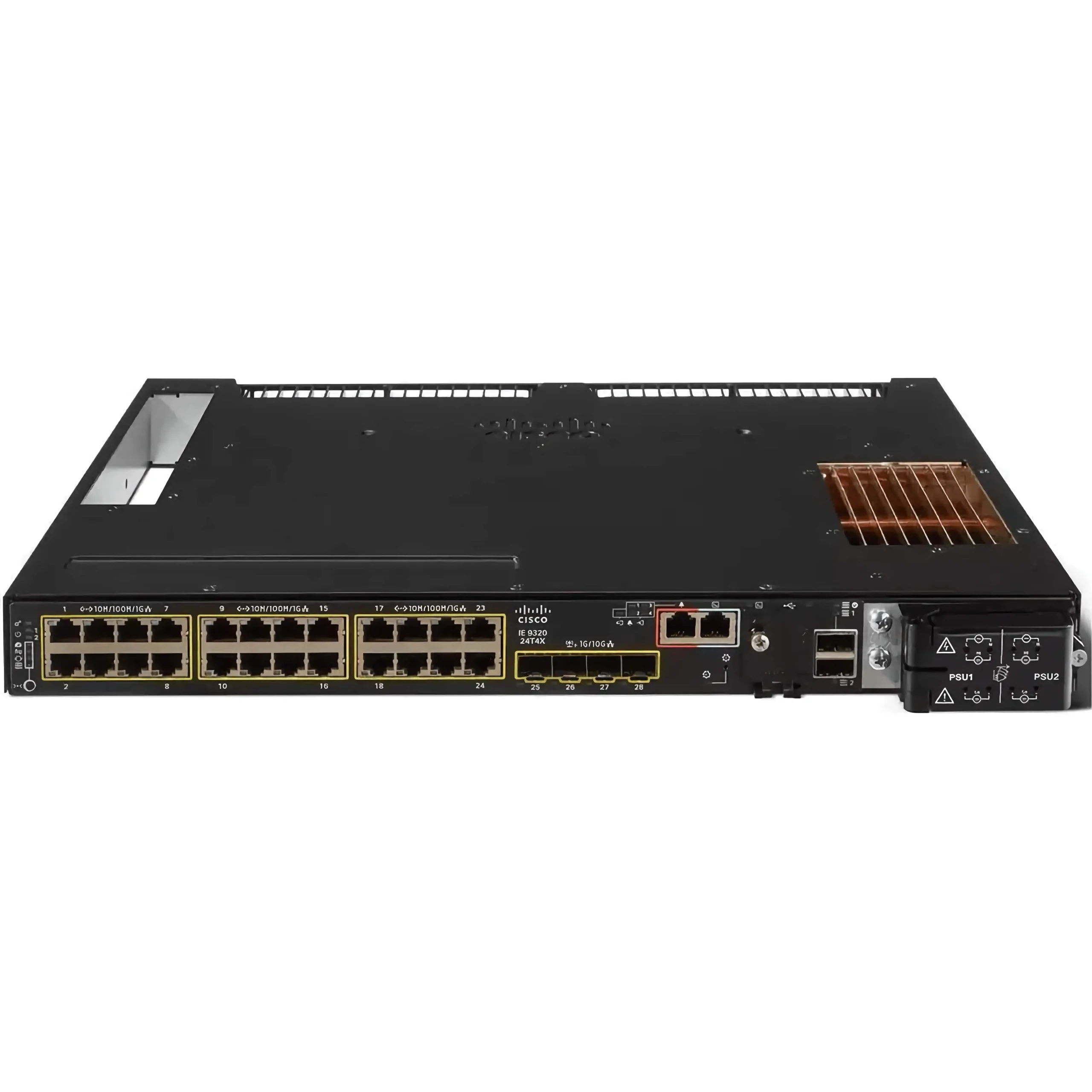

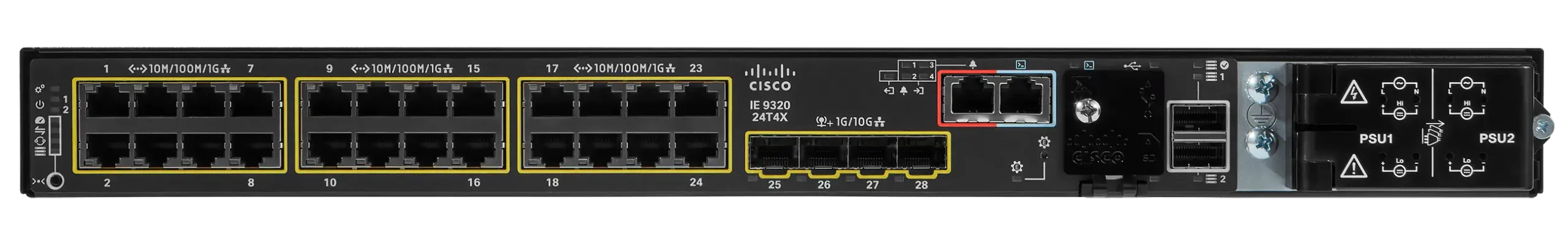

Cisco Part Number: IE-9320-24T4X-A is a Catalyst IE9300 w/ 24 Ports GE Cu Downlinks and 4 Ports 10G SFP+ uplinks, Stackable, Network Advantage
The Cisco Catalyst IE9300 Rugged Series switches boast 28 ports of both Gigabit and 10 Gigabit Ethernet interfaces, offering swift Ethernet connectivity in a compact design tailored for various industrial applications that demand resilient equipment. Specifically engineered for durability, these switches are well-suited for challenging environments found in manufacturing, energy, transportation, mining, smart cities, and oil and gas sectors. Whether deployed in outdoor enclosures or exposed to harsh conditions, these switches adhere to overall IT network design principles, compliance standards, and performance requirements.
Powered by the Cisco IOS XE operating system, these switches incorporate essential security features such as Secure Boot, image signing, and the Cisco® Trust Anchor module, ensuring a foundation of trust and integrity. The Cisco IOS XE operating system also facilitates API-driven configuration, supporting open APIs and data models.
For efficient management, the Cisco Catalyst IE9300 Rugged Series can be easily controlled using the robust Cisco Catalyst Center management tool. Additionally, the switches offer a user-friendly and redesigned graphical user interface (GUI) tool named WebUI for straightforward setup and configuration.
Delivering advanced monitoring capabilities, the platform supports Full Flexible NetFlow (FNF), providing real-time visibility into traffic patterns and enabling threat analysis. This is complemented by compatibility with Cisco Cyber Vision and Cisco Secure Network Analytics, enhancing the switches' capabilities in identifying and mitigating potential security threats.
IE-9320-24T4X-A for deployments that need high-density copper ports, easy scalability, and traffic aggregation:
Hardware configuration
| Product number | Total ports | Downlinks | Uplinks (SFP/SFP+) |
Software license (default) |
|---|---|---|---|---|
| IE-9320-24T4X-A | 28 | 24 ports 10/100/1000M RJ45 | 4 ports 1/10G | Network Advantage |
Hardware specifications
| Hardware specification | IE-9310-26S2C -E/-A | IE-9320-26S2C-E/-A IE-9320-22S2C4X-E/-A IE-9320-24P4S-E/-A IE-9320-24T4X-A IE-9320-24P4X-E/-A IE-9320-24P4X-E/-A IE-9320-16P8U4X-E/-A |
|---|---|---|
| Hardware | 4-GB DRAM 8-GB onboard flash memory1 |
4-GB DRAM 8-GB onboard flash memory1 |
| Removable storage | USB2,3, SD card2 | USB2,3, SD card2 |
| Alarms | 4 dry-contact alarm inputs 1 dry-contact Form-C relay alarm output |
4 dry-contact alarm inputs 1 dry-contact Form-C relay alarm output |
| Console ports | 1 RS-232 (via RJ-45), 1 Micro USB | 1 RS-232 (via RJ-45), 1 Micro USB |

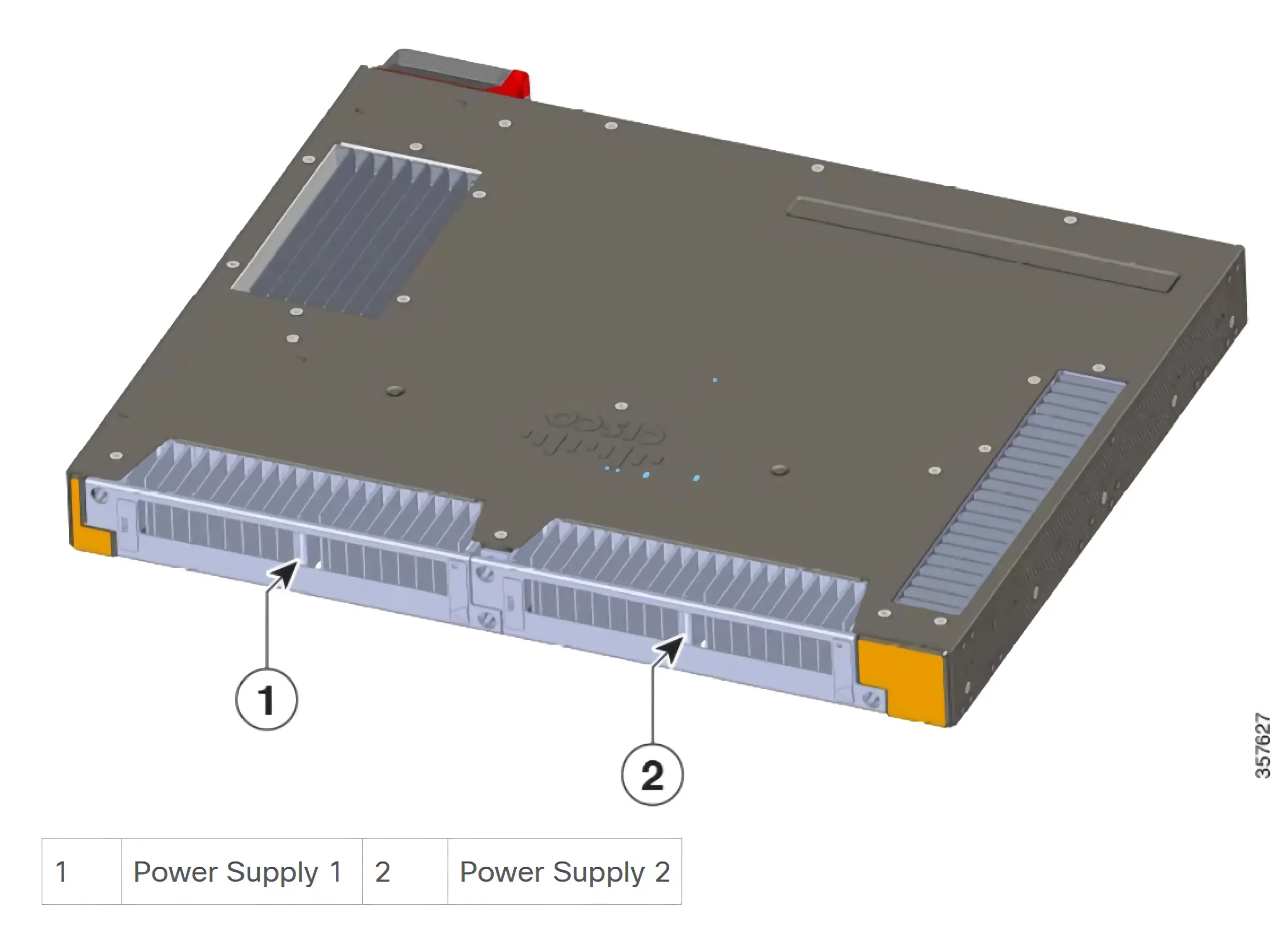

| Power inputs | Dual AC/DC power inputs | Dual AC/DC power inputs |
| Cisco StackWise ports | – | 2 stacking ports |
1 User-accessible flash memory is approximately 2.5 GB.
