BRAND: Cisco

Cisco ISR1100X-4G - Integrated Services Router

MPN: ISR1100X-4G
£415.62
£498.74 Incl. VAT
AVAILABLE ON REQUEST
FINANCE AVAILABLE
Paypal Visa Mastercard American Express
Free Technical Support
Can't decide?
Free Technical Support
We can help you decide which hardware is best for you
orders@cloudappliances.co.uk 020 3880 8840 Mon-Fri: 8AM-7PM
Description
Tech Overview

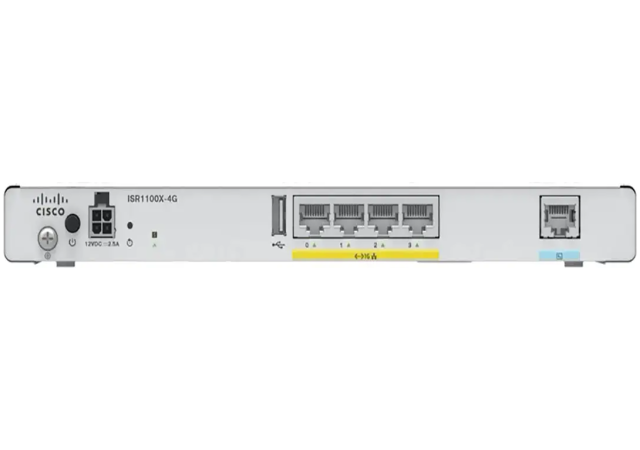

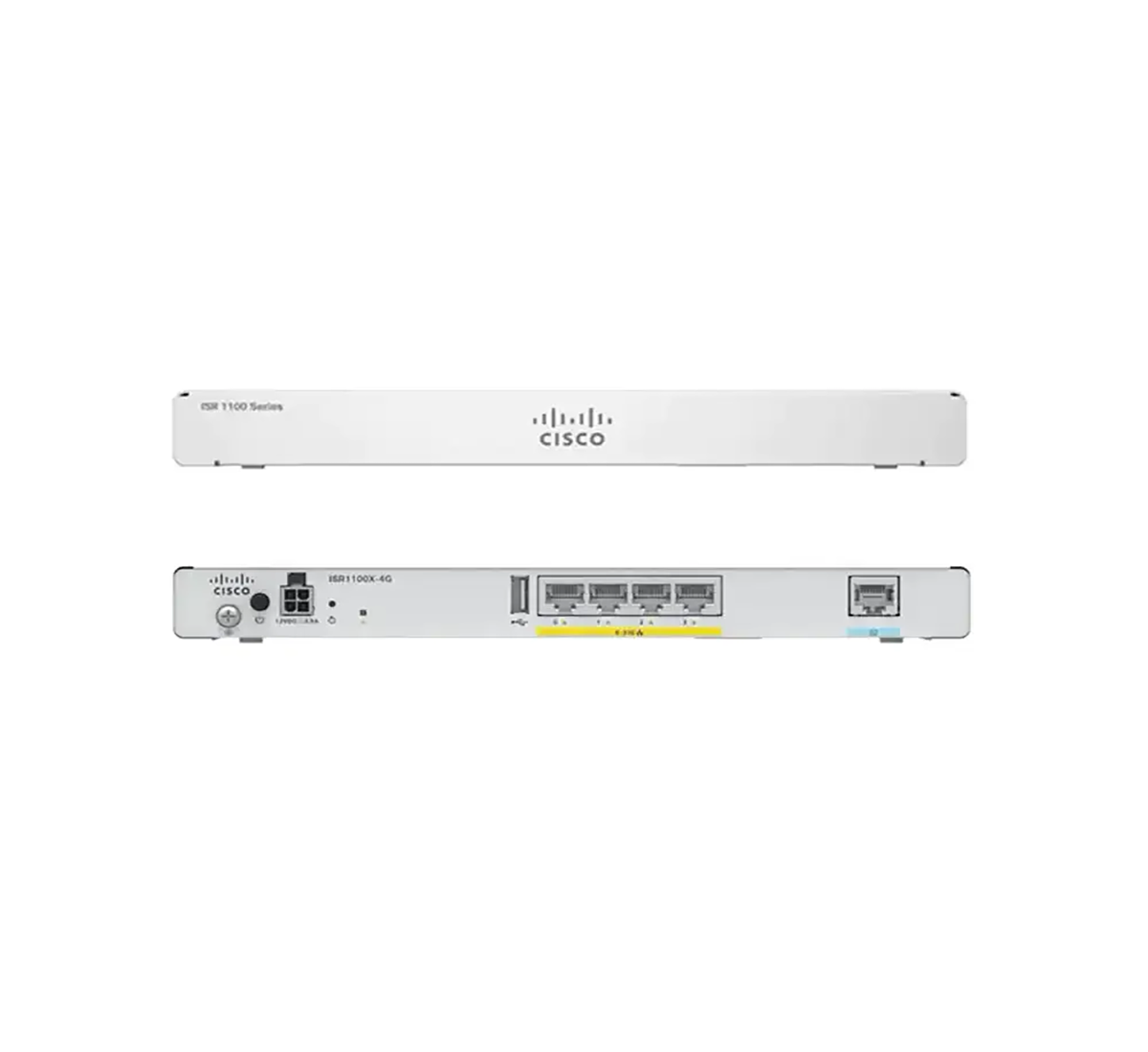

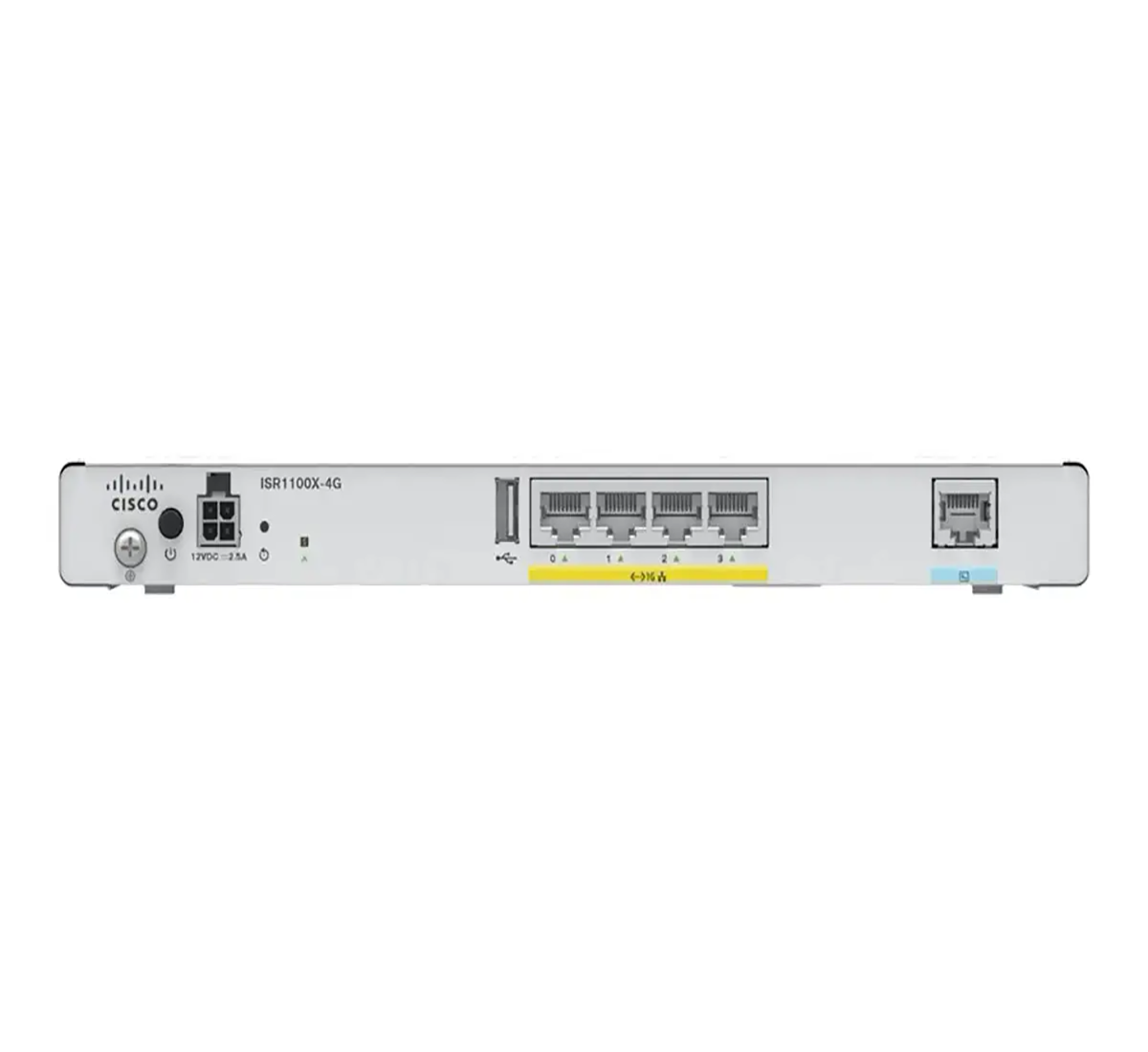

Cisco Part Number: ISR1100X-4G is a Cisco ISR1100 Series Router, 4 Eth LAN/WAN Ports, 8G RAM

The ISR 1100 Series and ISR 1100X Series, integral components of the Cisco 1000 Series Integrated Services Routers (ISR), operate on either the Viptela operating system or the IOS XE SD-WAN operating system. These devices seamlessly integrate wide area network (WAN) capabilities with robust security features, presenting a high-performance, wired platform.

Designed to deliver enterprise-grade performance coupled with top-tier SD-WAN functionality, both the ISR 1100 Series and ISR 1100X Series routers provide a powerful solution for diverse networking needs. The ISR 1100 Series is equipped with 4GB DRAM, while the ISR 1100X Series boasts 8GB DRAM, catering to varying requirements.

Cisco Software-Defined WAN (SD-WAN) introduces a cloud-first approach, furnishing unmatched visibility into your WAN infrastructure, ensuring optimal connectivity for end-users, and delivering a comprehensive security framework for safeguarding your network. This innovative architecture offers transport independence, a wide array of network and security services, and flexibility in endpoint configurations.

Functioning as perimeter devices for sites like remote offices, branch offices, campuses, or data centers, the ISR 1100 Series and ISR 1100X Series routers play a pivotal role in establishing secure virtual overlay networks across diverse WAN transports. Operating in controller mode, they facilitate the creation and management of these networks, ensuring robust security and seamless connectivity.

Performance specification of the ISR1100 series

Performance parameter

ISR 1100X-6G

ISR 1100-6G

ISR 1100X-4G

ISR 1100-4G

SD-WAN IPsec throughput

(1400 Bytes)

1889 Mbps

1889 Mbps

477 Mbps

477 Mbps

SD-WAN IPsec throughput

(IMIX)

972 Mbps

972 Mbps

411 Mbps

411 Mbps

SD-WAN overlay tunnels

3000

1500

500

250


Cisco ISR1100X-4G chassis specification:

Item Specification
Services and Slot Density
CPU Intel 2.2 GHz 4-core
RJ45 Console 1
USB Type A USB 3.0, 4.5 W Maximum
Bulk Flash 8 GB eMMC pSLC (5.8 GB usable)
Serial Flash Dual 16MB
Memory DDR4 ECC DRAM Cisco ISR1100-4G: 4 GB
Cisco ISR1100X-4G: 8 GB
GE WAN Ports 4
Physical Specifications
Form Factor 10.2 in x 7 in x 1.1 in
Operating Conditions
Temperature Fanless design
0 to 40°C (32 to 104°F) at sea level (temperature de-rating of 1.5 deg C per 1000 feet of altitude applicable up to max of 10,000 feet or 3000 m)
Altitude Max 3000 m (10000 ft)
Humidity 10 to 85% RH non-condensing
Transportation/Storage Conditions
Temperature -40 to 70°C (-40 to 158°F)
Humidity 5 to 95% RH non-condensing
Altitude 4570 m (15,000 ft)
Reliability
MTBF Approximately 1.6 million hours (about 183 years) at 25°C ambient
