Cisco LTE-ANTM-SMA-D= - LTE Antenna

Cisco Part Number: LTE-ANTM-SMA-D= is a Cisco LTE SMA dipole antenna 698-960,1448-1511,1710-2690

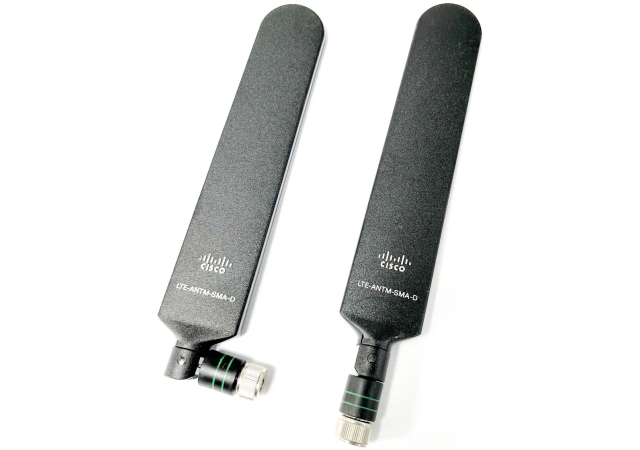

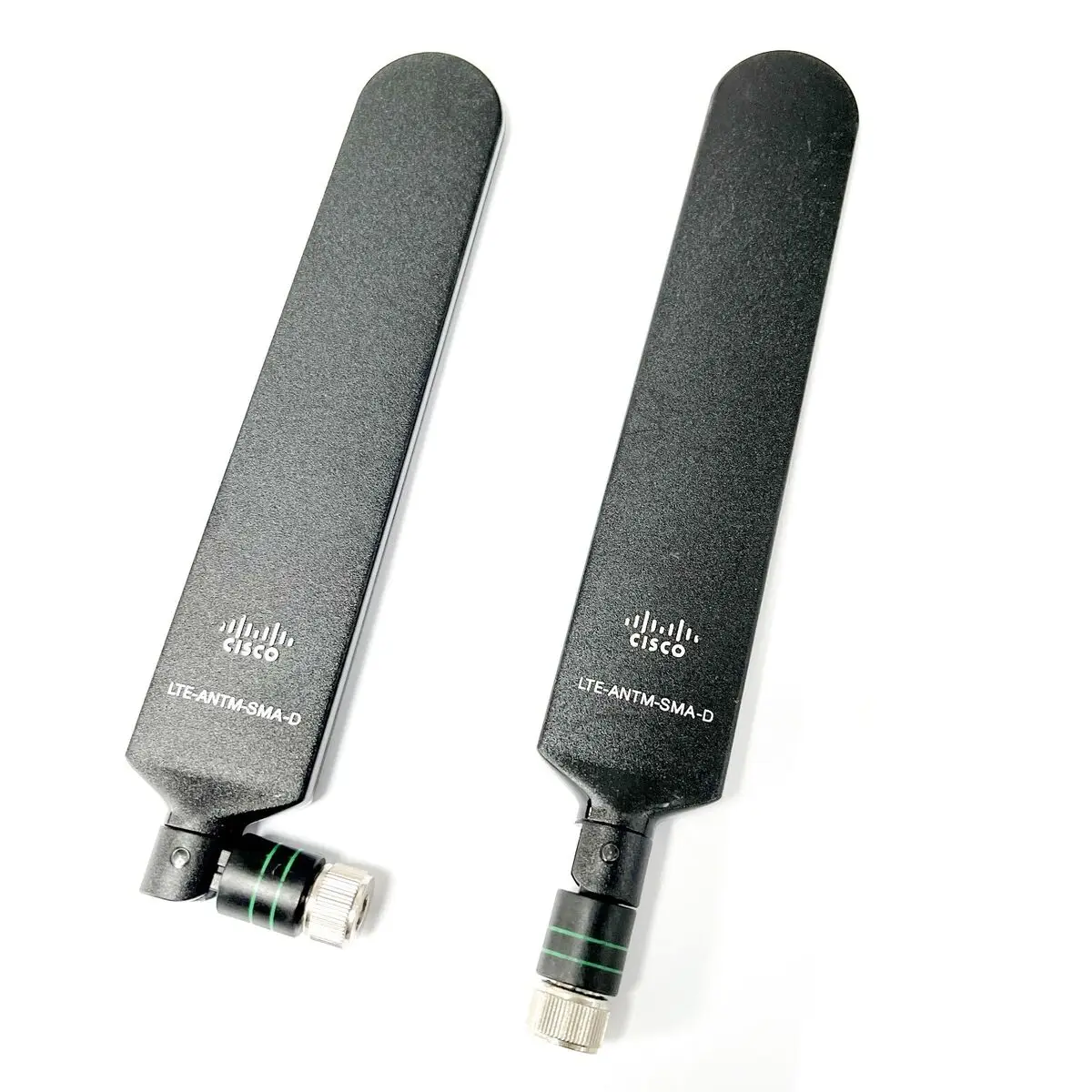

Cisco LTE-ANTM-SMA-D= Omnidirectional Dipole Antenna

The Cisco LTE-ANTM-SMA-D= is an indoor omnidirectional dipole antenna designed to enhance cellular connectivity for Cisco 3G, 4G LTE, and LTE Advanced (LTE-A) routers and modules. Its compact form factor and articulating joint make it ideal for deployments requiring flexible positioning and reliable performance.

• Frequency Support: 698–960 MHz, 1447–1511 MHz, and 1710–2690 MHz
• Gain: 2.0 dBi (698–960 MHz), 2.8 dBi (1447–1511 MHz), 3.7 dBi (1710–2690 MHz)
• Connector: Male SMA with enhanced rotational friction for secure attachment

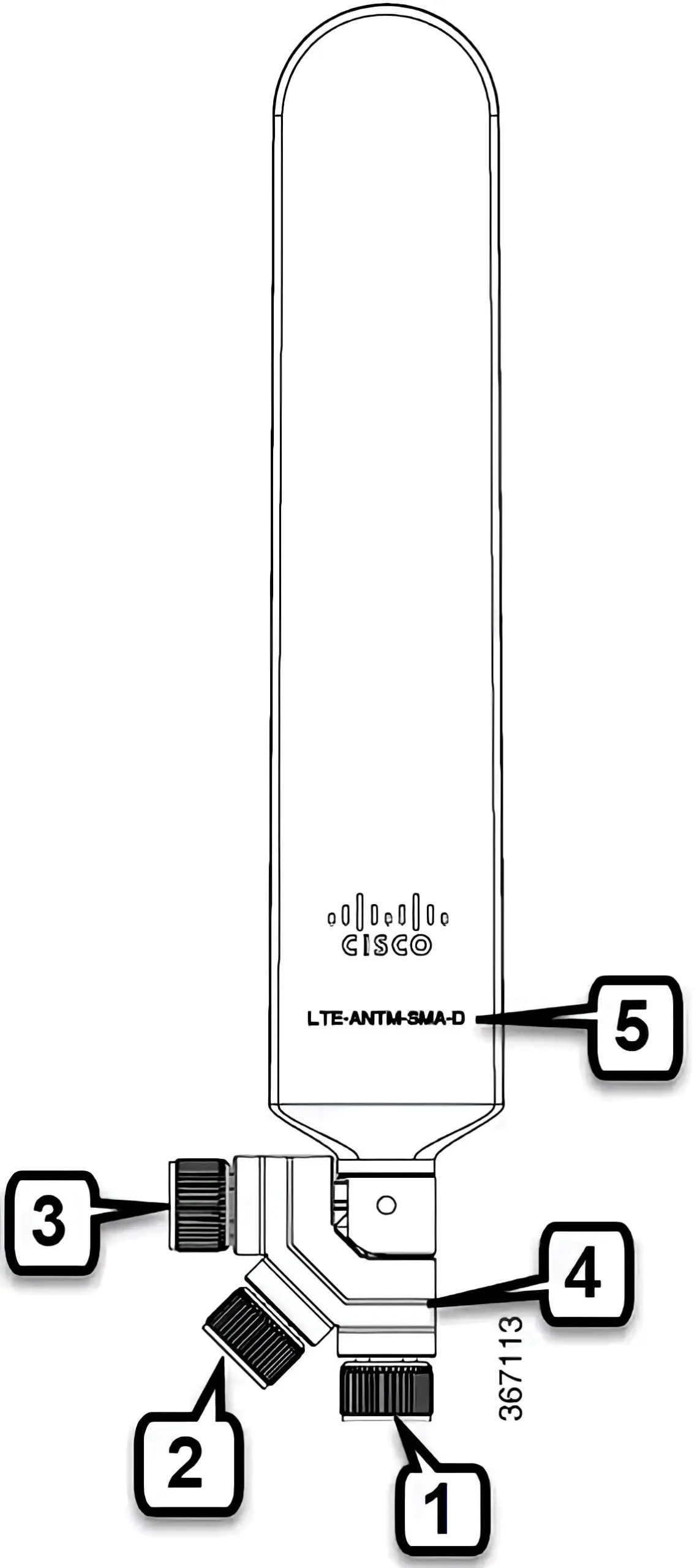

• Articulation: Adjustable joint with 0°, 45°, and 90° positions for optimal alignment
• Impedance: 50 Ohms
• VSWR: ≤ 2.5:1 (698–960 MHz and 1447–1511 MHz), ≤ 2.0:1 (1710–2690 MHz)
• Maximum Input Power: 5 Watts
• Dimensions: 9” (L) x 1.46” (W) x 0.43” (D) (229 x 37 x 11 mm)
• Weight: 56.8 grams
• Operating Temperature: -30°C to +70°C
• Storage Temperature: -40°C to +85°C

Designed for seamless integration with Cisco routers and pluggable modules featuring SMA connectors, this antenna ensures robust and consistent cellular performance. The dual green bands indicate compatibility with Cisco LTE-A devices, facilitating easy identification during installation.

For optimal performance, it is recommended to use two antennas to leverage MIMO technology on supported Cisco cellular routers.
