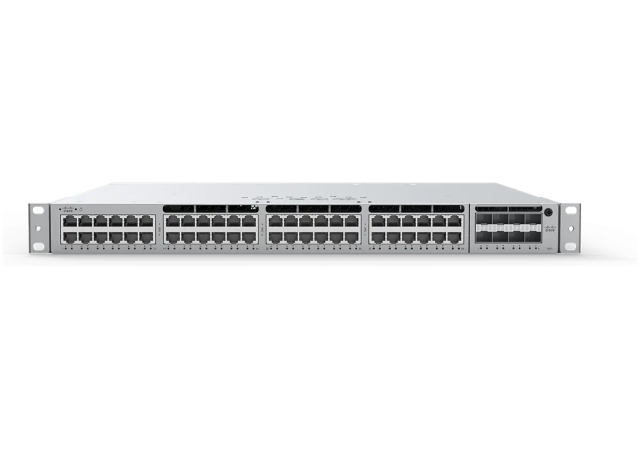

Cisco Meraki MS390-48UX-HW - Access Switch

Brand: Cisco Meraki MPN: MS390-48UX-HW
Available on request
Meraki 36-port 2.5GbE + 12-port mGbE UPoE/802.3bt switch switch

£7,637.99

£9,165.59 Incl VAT

Need Help Ordering?

Call 020 3880 8840

Add to Quote
Description
Tech overview

Cisco Meraki Part Number: MS390-48UX-HW is a Meraki 36-port 2.5GbE + 12-port mGbE UPoE/802.3bt switch switch

Quick Spec:

  • 36 x 100M/1G/2.5G + 12 x 100M/1G/2.5G/5G/10G
  • Modular Uplink 10/40GbE
  • 2 x 120G Stacking ports
  • UPoE/802.3bt
  • 490W PoE

The Meraki MS390 seamlessly combines the Meraki dashboard’s simplicity with robust switching hardware to address enterprise needs. It offers multigigabit ports, 480G stacking, and modular 10/40G uplinks for high-bandwidth applications and 802.11ax/wifi-6 access points. With fast stack convergence, StackPower, and Adaptive Policy, it ensures resiliency and scalable security. Integrated under the Meraki dashboard, the MS390 provides a powerful solution for wired access applications.

Cisco Meraki MS390 series highlights:

  • Layer-3
  • 40G or 10G modular uplink options on all models
  • mGig support
  • Dual Dedicated 120G Hardware Stacking Ports
  • PoE+, UPoE Support , 802.3bt (60W)
  • StackPower in a ring topology supporting up to 4 switches
  • Netflow version 10 (IPFIX) and Encrypted Traffic Analytics
  • Micro-Segmentation via Adaptive Policy (Security Group Tags)

Technical Specifications:

Model Interfaces

Uplink 10/40GbE
(SFP+, QSFP+)

120G Hardware Stack Port

Dedicated Management
Interface

PoE/ UPoE
Capabilities

MS390-24 24 x 1GbE RJ45 Modular 2 1 n/a
MS390-24P 24 x 1GbE RJ45 Modular 2 1 PoE
MS390-24U 24 x 1GbE RJ45 Modular 2 1 UPoE/802.3bt
MS390-24UX 24 x 100M/1G/2.5G/5G/10G RJ45 Modular 2 1 UPoE/802.3bt
MS390-48 48 x 1GbE RJ45 Modular 2 1 n/a
MS390-48P 48 x 1GbE RJ45 Modular 2 1 PoE
MS390-48U 48 x 1GbE RJ45 Modular 2 1 UPoE/802.3bt
MS390-48UX-HW

36 x 100M/1G/2.5G +

12 x 100M/1G/2.5G/5G/10G

Modular 2 1 UPoE/802.3bt
MS390-48UX2 48 x 100M/1G/2.5G/5G Modular 2 1 UPoE/802.3bt



Performance comparison:

Model

Switching Capacity Stacking Bandwidth Forwarding rate
MS390-24 208 Gbps 480 Gbps 154.76 Mpps
MS390-24P 208 Gbps 480 Gbps 154.76 Mpps
MS390-24U 208 Gbps 480 Gbps 154.76 Mpps
MS390-24UX 640 Gbps 480 Gbps 476.19 Mpps
MS390-48 256 Gbps 480 Gbps 190.48 Mpps
MS390-48P 256 Gbps 480 Gbps 190.48 Mpps
MS390-48U 256 Gbps 480 Gbps 190.48 Mpps
MS390-48UX-HW 580 Gbps 480 Gbps 431.54 Mpps
MS390-48UX2 640 Gbps 480 Gbps 476.19 Mpps
