Name: Cisco Meraki MS390-48UX2-HW
Brand: Cisco Meraki
SKU: IM#677SY33
Availability: BackOrder

Cisco Meraki Part Number: MS390-48UX2-HW is a Cisco Meraki 48 x 100M/1G/2.5G/5GE L3 UPoE/802.3bt switch

Quick Spec:

48 x 100M/1G/2.5G/5G
Modular Uplink 10/40GbE
2 x 120G Stacking ports
UPoE/802.3bt
645W UPoE

The Meraki MS390 seamlessly combines the Meraki dashboard's simplicity with robust switching hardware to address enterprise needs. It offers multigigabit ports, 480G stacking, and modular 10/40G uplinks for high-bandwidth applications and 802.11ax/wifi-6 access points. With fast stack convergence, StackPower, and Adaptive Policy, it ensures resiliency and scalable security. Integrated under the Meraki dashboard, the MS390 provides a powerful solution for wired access applications.

Cisco Meraki MS390 series highlights:

Layer-3
40G or 10G modular uplink options on all models
mGig support
Dual Dedicated 120G Hardware Stacking Ports
PoE+, UPoE Support , 802.3bt (60W)
StackPower in a ring topology supporting up to 4 switches
Netflow version 10 (IPFIX) and Encrypted Traffic Analytics
Micro-Segmentation via Adaptive Policy (Security Group Tags)

Technical Specifications:

Model	Interfaces	Uplink 10/40GbE (SFP+, QSFP+)	120G Hardware Stack Port	Dedicated Management Interface	PoE/ UPoE Capabilities
MS390-24	24 x 1GbE RJ45	Modular	2	1	n/a
MS390-24P	24 x 1GbE RJ45	Modular	2	1	PoE
MS390-24U	24 x 1GbE RJ45	Modular	2	1	UPoE/802.3bt
MS390-24UX	24 x 100M/1G/2.5G/5G/10G RJ45	Modular	2	1	UPoE/802.3bt
MS390-48	48 x 1GbE RJ45	Modular	2	1	n/a
MS390-48P	48 x 1GbE RJ45	Modular	2	1	PoE
MS390-48U	48 x 1GbE RJ45	Modular	2	1	UPoE/802.3bt
MS390-48UX	36 x 100M/1G/2.5G + 12 x 100M/1G/2.5G/5G/10G	Modular	2	1	UPoE/802.3bt
MS390-48UX2-HW	48 x 100M/1G/2.5G/5G	Modular	2	1	UPoE/802.3bt

Performance comparison:

Model	Switching Capacity	Stacking Bandwidth	Forwarding rate
MS390-24	208 Gbps	480 Gbps	154.76 Mpps
MS390-24P	208 Gbps	480 Gbps	154.76 Mpps
MS390-24U	208 Gbps	480 Gbps	154.76 Mpps
MS390-24UX	640 Gbps	480 Gbps	476.19 Mpps
MS390-48	256 Gbps	480 Gbps	190.48 Mpps
MS390-48P	256 Gbps	480 Gbps	190.48 Mpps
MS390-48U	256 Gbps	480 Gbps	190.48 Mpps
MS390-48UX	580 Gbps	480 Gbps	431.54 Mpps
MS390-48UX2-HW	640 Gbps	480 Gbps	476.19 Mpps

Brand	Cisco Meraki
Product type	Switch
Product Family	Meraki
Number of ports	48 ports
Ports specification	48 x 100/1000/2.5G/5GBase-T (UPOE)
Switching layer	L3
Managed	Yes
Power Over Ethernet (PoE)	UPOE
PoE Budget	645 W
Forwarding rate	476.19 Mpps
Switching capacity	640 Gbps
MAC Address Table Size	32000
VLANs supported	4094
Routing Protocols	OSPF, VRRP, OSPFv2, static IP routing, RSTP, STP
Stackable	Yes
Interfaces	48 x 100/1000/2.5G/5G RJ-45 UPOE ¦ 2 x network stack device QSFP uplink ¦ 1 x management
RAM	N/A
Flash	N/A
Expansion Slots	1 (total) / 1 (free) x Expansion Slot
Max Operating Temperature	45 °C
Min Operating Temperature	-5 °C
MTBF	198,647 hours
Power Supply	Internal power supply
Included Accessories	1 x Power Supply (MA-PWR-1100WAC), Rack mount brackets and screw kit, 3 x Pre-Installed Fans, Cable guide
Width	44.5 cm
Depth	56.4 cm
Height	4.4 cm
Weight	9.09 kg
Warranty	Full lifetime hardware warranty with next-day advanced replacement included

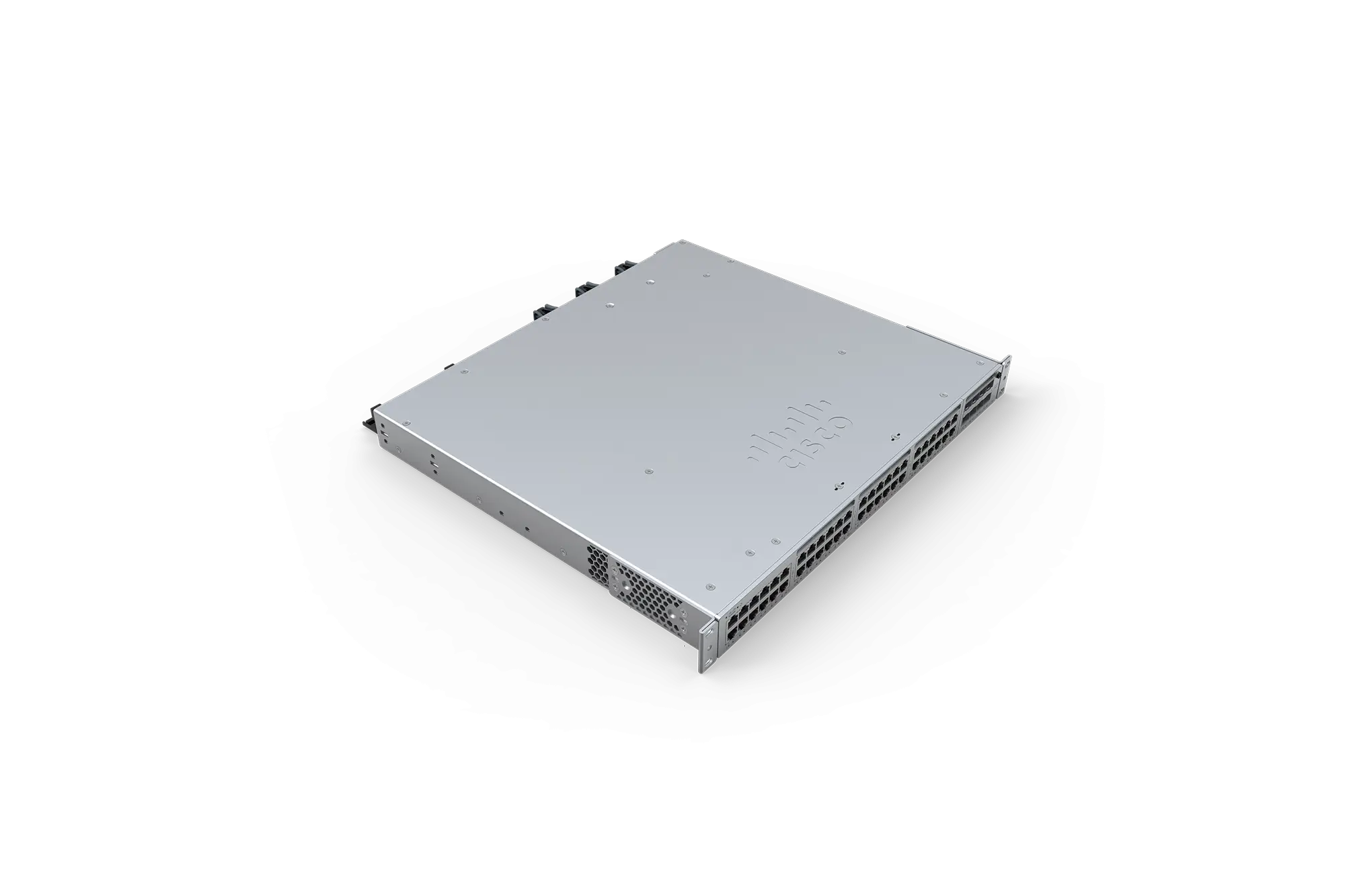

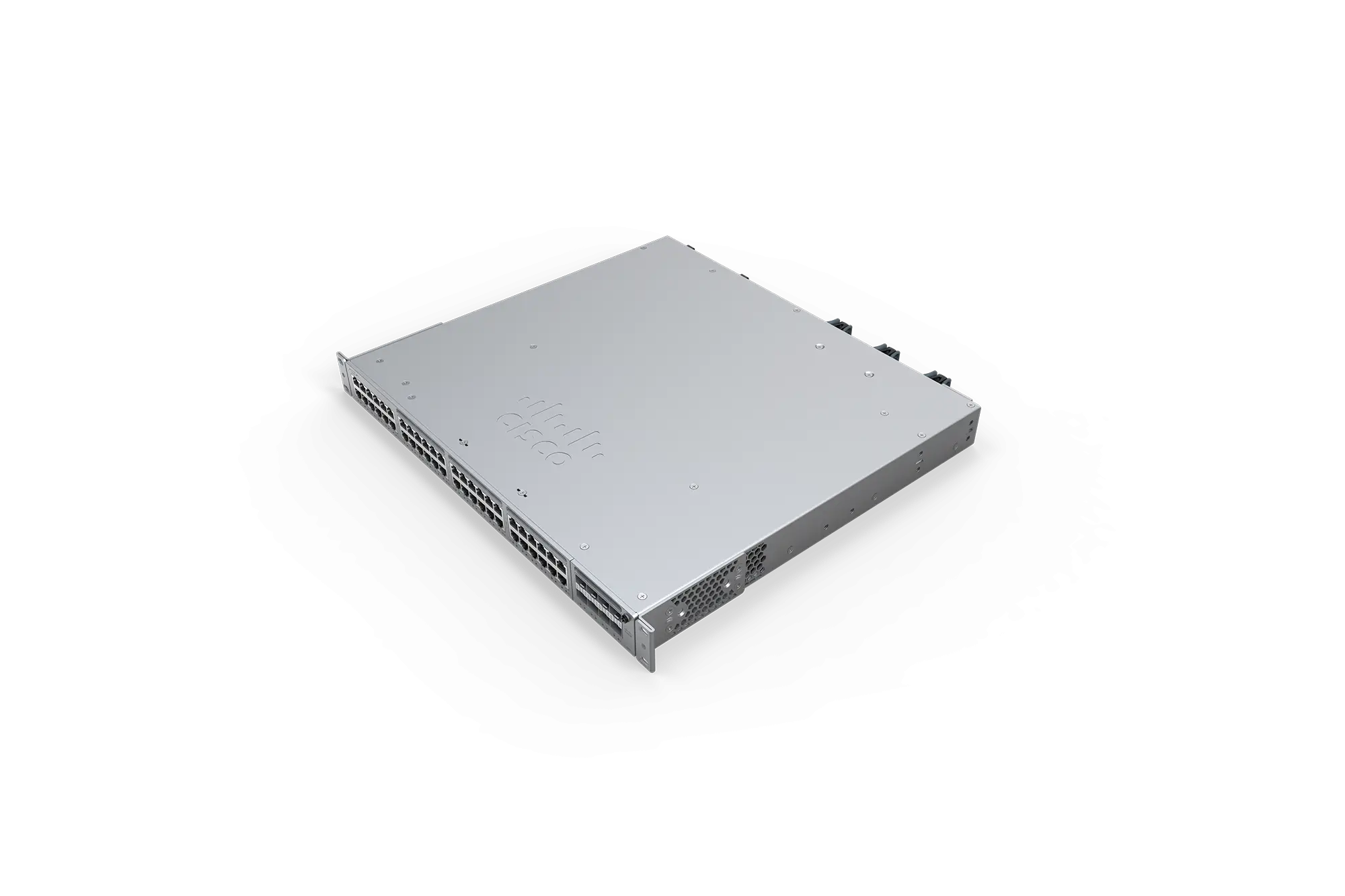

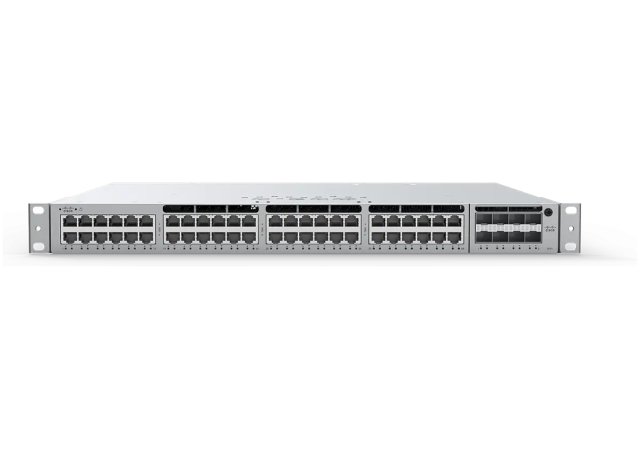

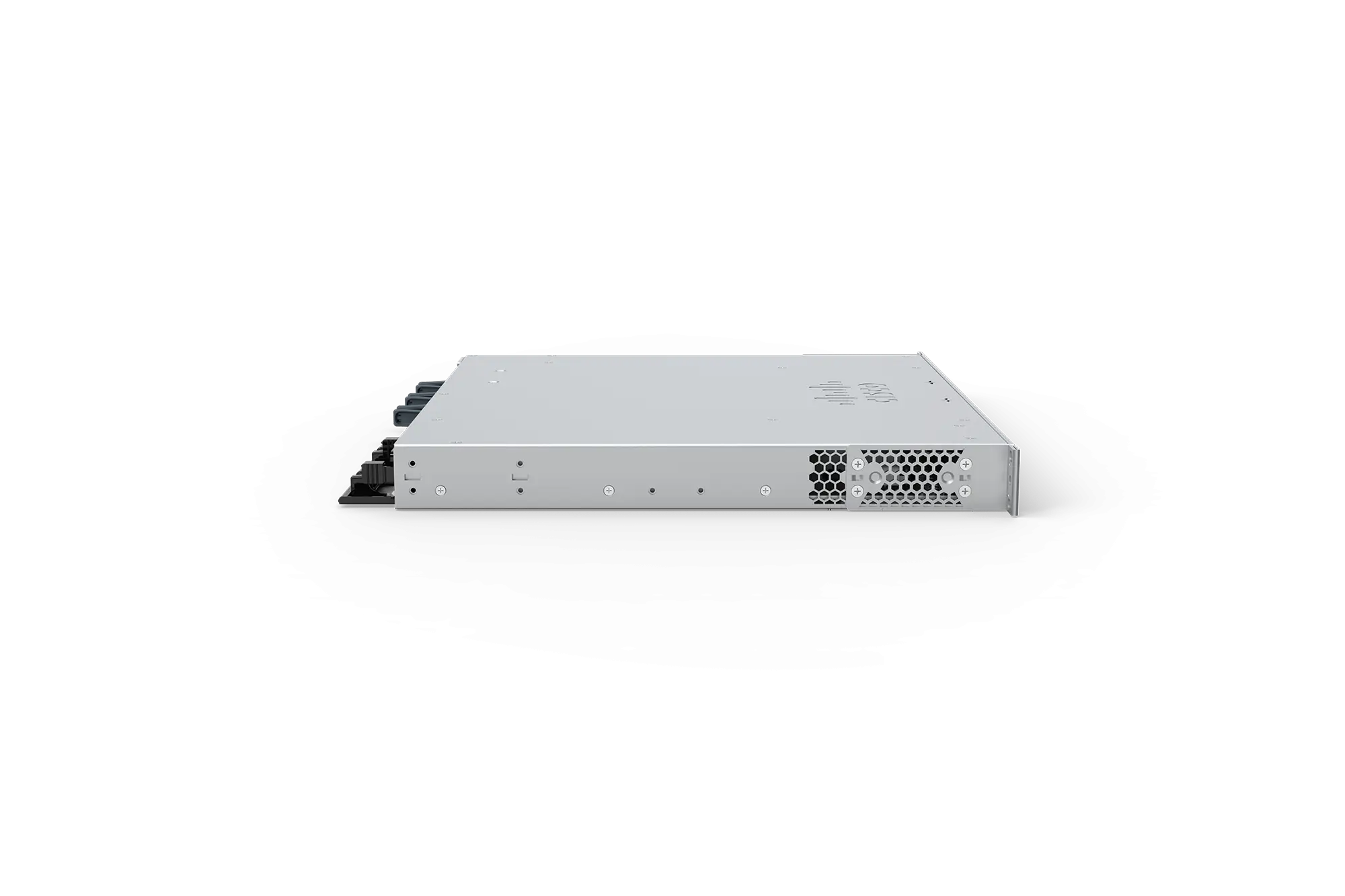

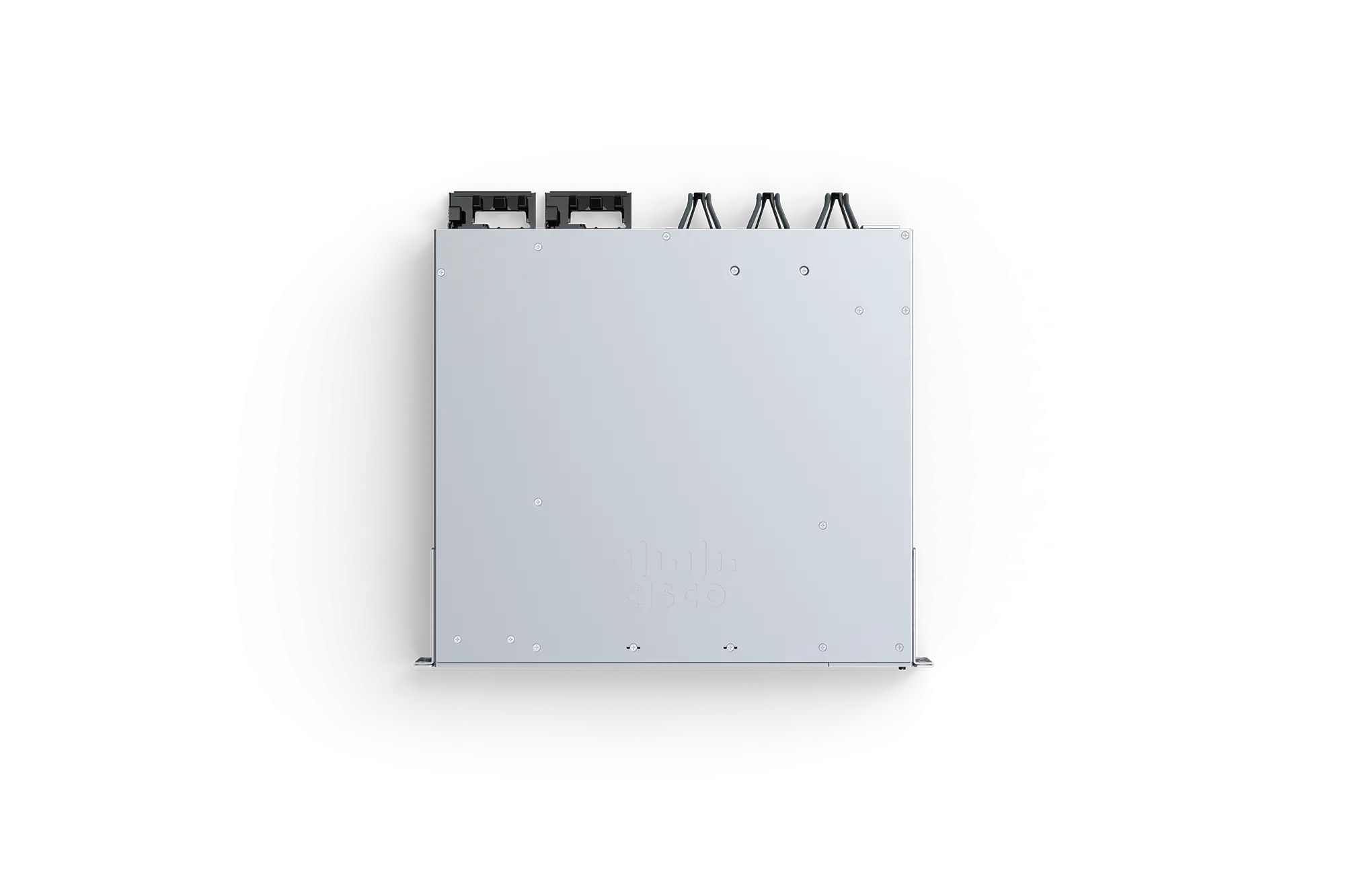

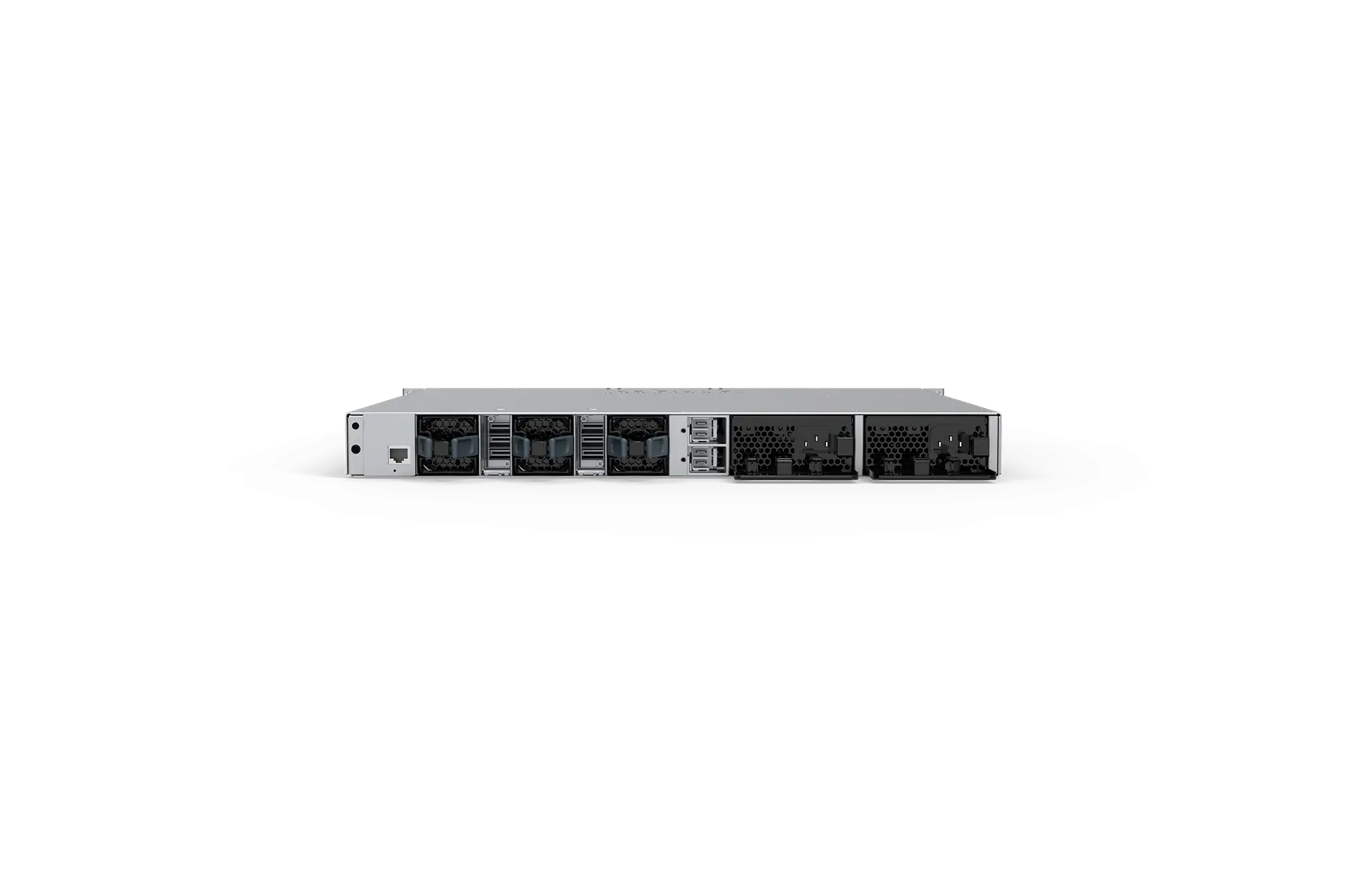

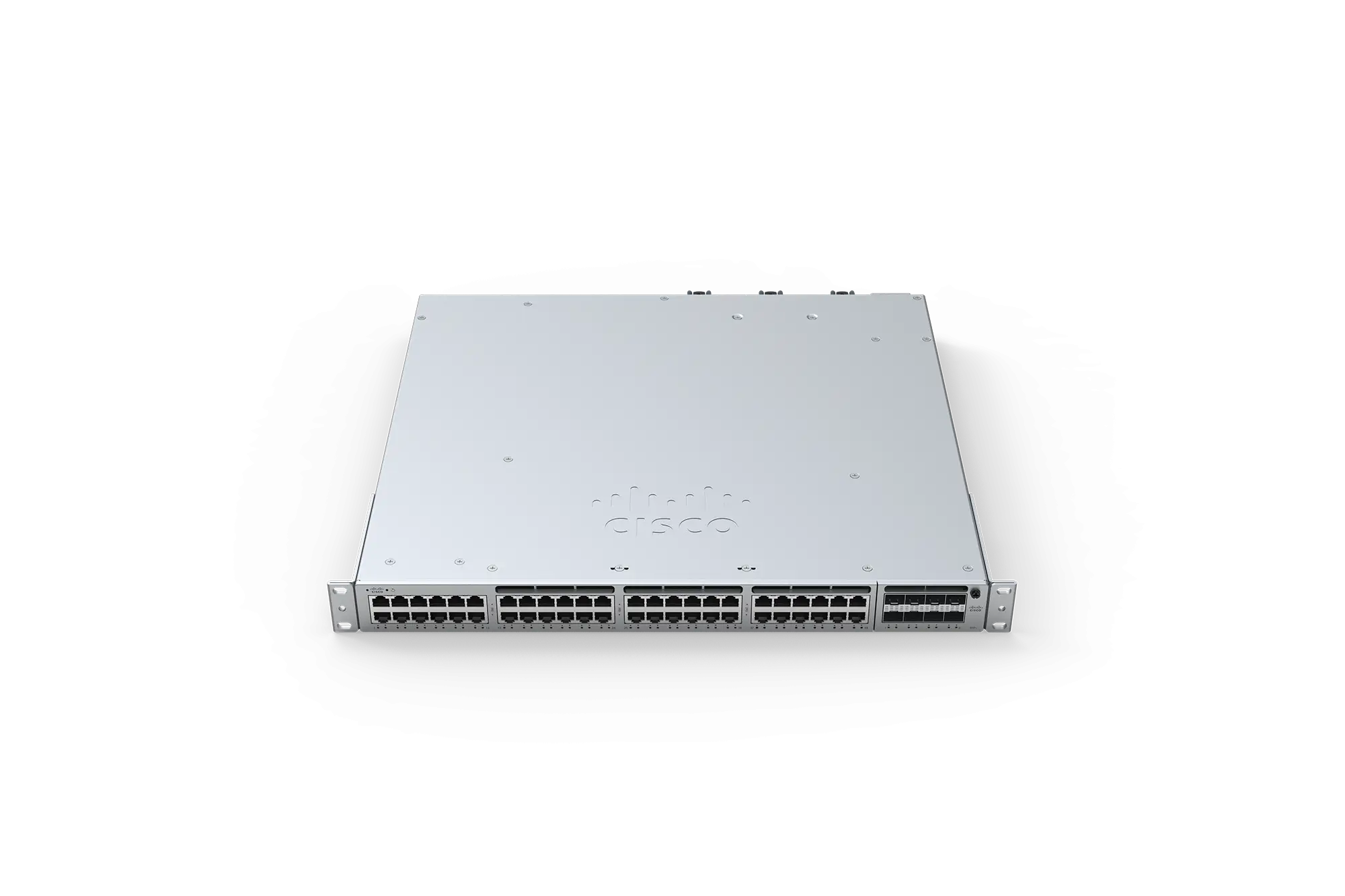

Cisco Meraki MS390-48UX2-HW - Access Switch
