Name: Cisco Meraki MX68CW-HW-WW
Brand: Cisco Meraki
SKU: TD#4874956
Availability: InStock

Cisco Meraki Part Number: MX68CW-HW-WW is a Meraki MX68CW Security & SD-WAN appliance with integrated cellular & 802.11ac Wi-Fi

Introducing the MX67C and MX68CW, engineered with a cutting-edge built-in cellular modem to streamline deployments requiring a cellular uplink. Perfect for remote sites grappling with unreliable WAN circuit providers or seeking top-tier redundancy and availability. With the Meraki Dashboard and integrated cellular uplink, deploying the MX67C or MX68CW is a breeze, requiring minimal pre-configuration and adaptable to nearly any location.

For smaller sites not in need of a cellular uplink but still demanding a versatile device for easy deployment, the base models of the MX67 and MX68 are available sans built-in cellular uplink. Additionally, the MX67 and MX68 are offered in Wireless variants (MX67W / MX68CW), delivering robust 802.11ac coverage for wireless clients.

The MX67W, MC68W, and MX68CW seamlessly combine top-tier wireless technology from Meraki with robust MX network security capabilities, all within a sleek and space-efficient design tailored for branch offices or small enterprises.

Key features include:

Dual-band 802.11n/ac wave 2, 2x2 MU-MIMO with two spatial streams for enhanced wireless performance.
Unified management of both network security and wireless functionalities, streamlining administration and ensuring cohesive operation.
Integrated enterprise-grade security features alongside guest access capabilities, providing comprehensive protection and convenient connectivity for all users.

All MX models come equipped with a USB port for 3G/4G failover. However, the MX67C and MX68CW stand out with additional features, boasting a built-in SIM slot and internal LTE modem. This integrated setup eliminates the necessity for external hardware and enables seamless cellular management directly from the Meraki dashboard.

Key features of the integrated LTE functionality include:

A Cat 6 300 Mbps LTE modem.
A nano SIM slot (4FF form factor) for convenient SIM card installation.
Global coverage options available through individual orderable SKUs, catering to both North America and worldwide deployment needs.

Meraki MX67/MX68 models comparison

	MX67	MX67W	MX67C	MX68	MX68W	MX68CW-HW-WW
Recommended use case	Small branch with up to 50 users	Small branch with up to 50 users	Small branch with up to 50 users	Small branch with up to 50 users	Small branch with up to 50 users	Small branch with up to 50 users
Stateful firewall throughput	600 Mbps	600 Mbps	600 Mbps	600 Mbps	600 Mbps	600 Mbps
Advanced security throughput	300 Mbps	300 Mbps	300 Mbps	300 Mbps	300 Mbps	300 Mbps
Maximum site-to-site VPN throughput	300 Mbps	300 Mbps	300 Mbps	300 Mbps	300 Mbps	300 Mbps
Maximum site-tosite VPN tunnels	50	50	50	50	50	50
WAN interfaces	1× GbE RJ45 1× USB (cellular failover1 )	1× GbE RJ45 1× USB (cellular failover1 )	1× GbE RJ45 1× USB (cellular failover1 ) 1× integrated Cat 6 LTE cellular modem (cellular failover)	2× GbE RJ45 1× USB (cellular failover1 )	2× GbE RJ45 1× USB (cellular failover1 )	2× GbE RJ45 1× USB (cellular failover1 ) 1× integrated Cat 6 LTE cellular modem (cellular failover)
Dual-purpose	1× GbE RJ45	1× GbE RJ45	1× GbE RJ45	-	-	-
LAN interfaces	4× GbE RJ45	4× GbE RJ45	4× GbE RJ45	10× GbE RJ45 (2× PoE+)	10× GbE RJ45 (2× PoE+)	10× GbE RJ45 (2× PoE+)

Brand	Cisco Meraki
Product type	Firewall
Product Family	MX Series
Firewall throughput	600 Mbps
IPS throughput	300 Mbps
IPSec VPN throughput	300 Mbps
Hard Drive	N/A
Interfaces	2 x 1000Base-T – RJ-45 (WAN) ¦ 8 x 1000Base-T – RJ-45 ¦ 2 x 1000Base-T (PoE+) – RJ-45 ¦ 1 x USB 2.0 – Type A
Included Accessories	Mounting kit
Min Operating Temperature	0 °C
Max Operating Temperature	45 °C
MTBF	N/A
Power Supply	External power adapter
Weight	1.18 kg
Width	28.4 cm
Depth	17.8 cm
Height	2.7 cm
Warranty	Limited lifetime with next business day advance replacement

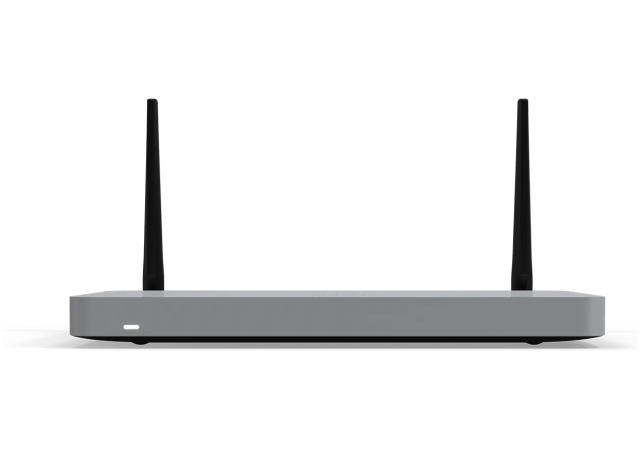

Cisco Meraki MX68CW-HW-WW - Security & SD-WAN appliance
