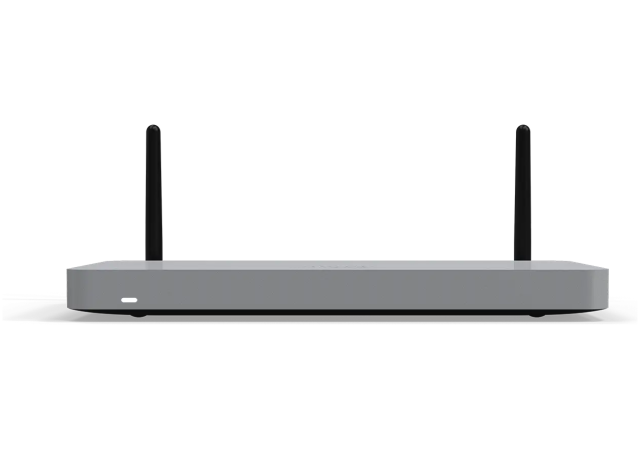

Cisco Meraki Part Number: MX68W-HW is a Meraki MX68CW Router/Security appliance with 802.11a
Introducing the MX67C and MX68CW, engineered with a cutting-edge built-in cellular modem to streamline deployments requiring a cellular uplink. Perfect for remote sites grappling with unreliable WAN circuit providers or seeking top-tier redundancy and availability. With the Meraki Dashboard and integrated cellular uplink, deploying the MX67C or MX68CW is a breeze, requiring minimal pre-configuration and adaptable to nearly any location.
For smaller sites not in need of a cellular uplink but still demanding a versatile device for easy deployment, the base models of the MX67 and MX68 are available sans built-in cellular uplink. Additionally, the MX67 and MX68 are offered in Wireless variants (MX67W / MX68CW), delivering robust 802.11ac coverage for wireless clients.
The MX67W, MX68W-HW, and MX68CW seamlessly combine top-tier wireless technology from Meraki with robust MX network security capabilities, all within a sleek and space-efficient design tailored for branch offices or small enterprises.
Key features include:
All MX models come equipped with a USB port for 3G/4G failover.
Meraki MX67/MX68 models comparison
| MX67 | MX67W | MX67C | MX68 | MX68W-HW | MX68CW | |
|---|---|---|---|---|---|---|
| Recommended use case | Small branch with up to 50 users | Small branch with up to 50 users | Small branch with up to 50 users | Small branch with up to 50 users | Small branch with up to 50 users | Small branch with up to 50 users |
| Stateful firewall throughput | 600 Mbps | 600 Mbps | 600 Mbps | 600 Mbps | 600 Mbps | 600 Mbps |
| Advanced security throughput | 300 Mbps | 300 Mbps | 300 Mbps | 300 Mbps | 300 Mbps | 300 Mbps |
| Maximum site-to-site VPN throughput | 300 Mbps | 300 Mbps | 300 Mbps | 300 Mbps | 300 Mbps | 300 Mbps |
| Maximum site-to-site VPN tunnels | 50 | 50 | 50 | 50 | 50 | 50 |
| WAN interfaces | 1× GbE RJ45 1× USB (cellular failover1 ) | 1× GbE RJ45 1× USB (cellular failover1 ) | 1× GbE RJ45 1× USB (cellular failover1 ) 1× integrated Cat 6 LTE cellular modem (cellular failover) | 2× GbE RJ45 1× USB (cellular failover1 ) | 2× GbE RJ45 1× USB (cellular failover1 ) | 2× GbE RJ45 1× USB (cellular failover1 ) 1× integrated Cat 6 LTE cellular modem (cellular failover) |
| Dual-purpose | 1× GbE RJ45 | 1× GbE RJ45 | 1× GbE RJ45 | - | - | - |
| LAN interfaces | 4× GbE RJ45 | 4× GbE RJ45 | 4× GbE RJ45 | 10× GbE RJ45 (2× PoE+) | 10× GbE RJ45 (2× PoE+) | 10× GbE RJ45 (2× PoE+) |
