BRAND: Cisco

Cisco N2XX-AIPCI01 - Interface Module

MPN: N2XX-AIPCI01
£784.51
£941.41 Incl. VAT
AVAILABLE TO ORDER
FINANCE AVAILABLE
Paypal Visa Mastercard American Express
Free Technical Support
Can't decide?
Free Technical Support
We can help you decide which hardware is best for you
orders@cloudappliances.co.uk 020 3880 8840 Mon-Fri: 8AM-7PM
Description
Tech Overview

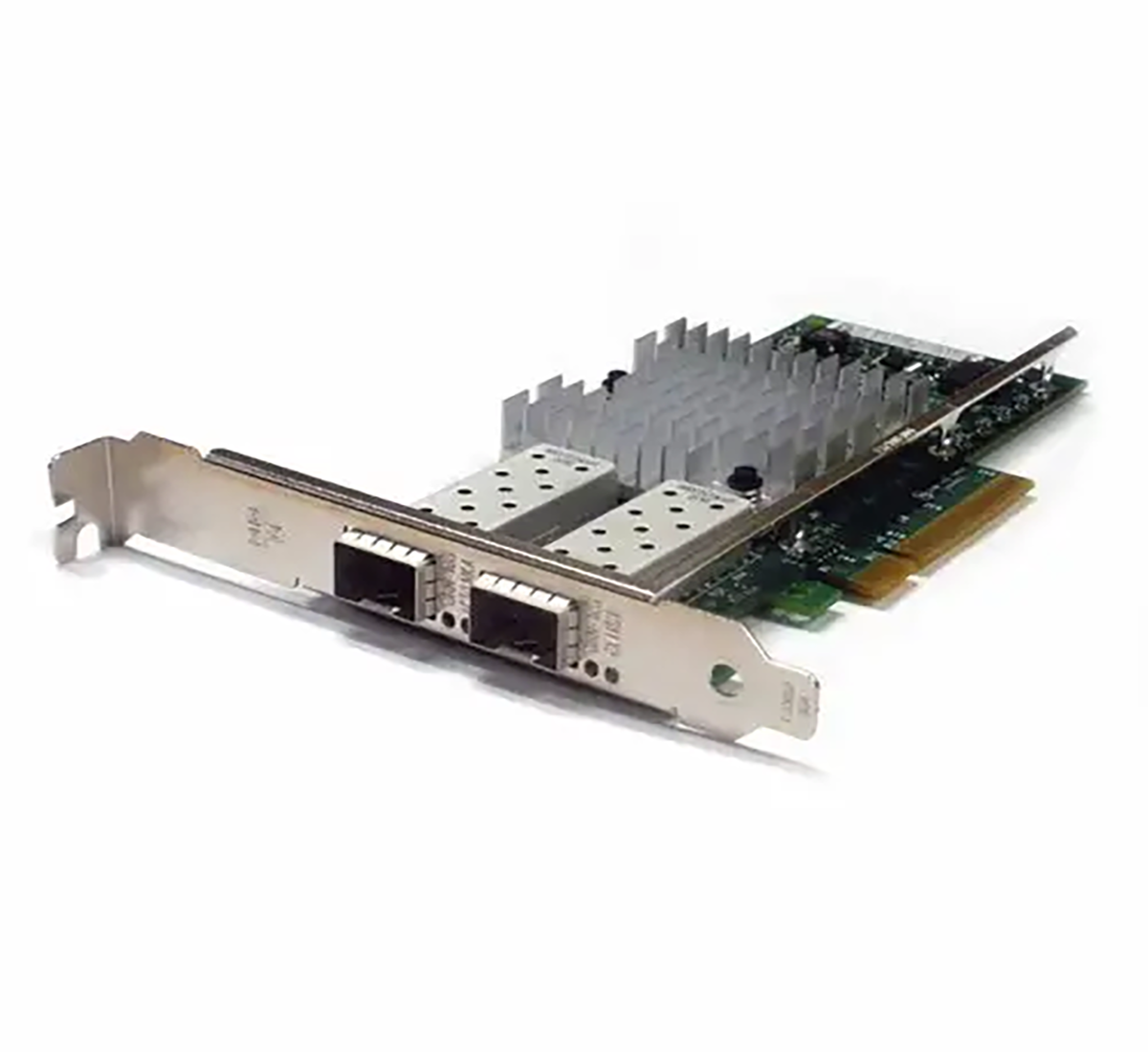

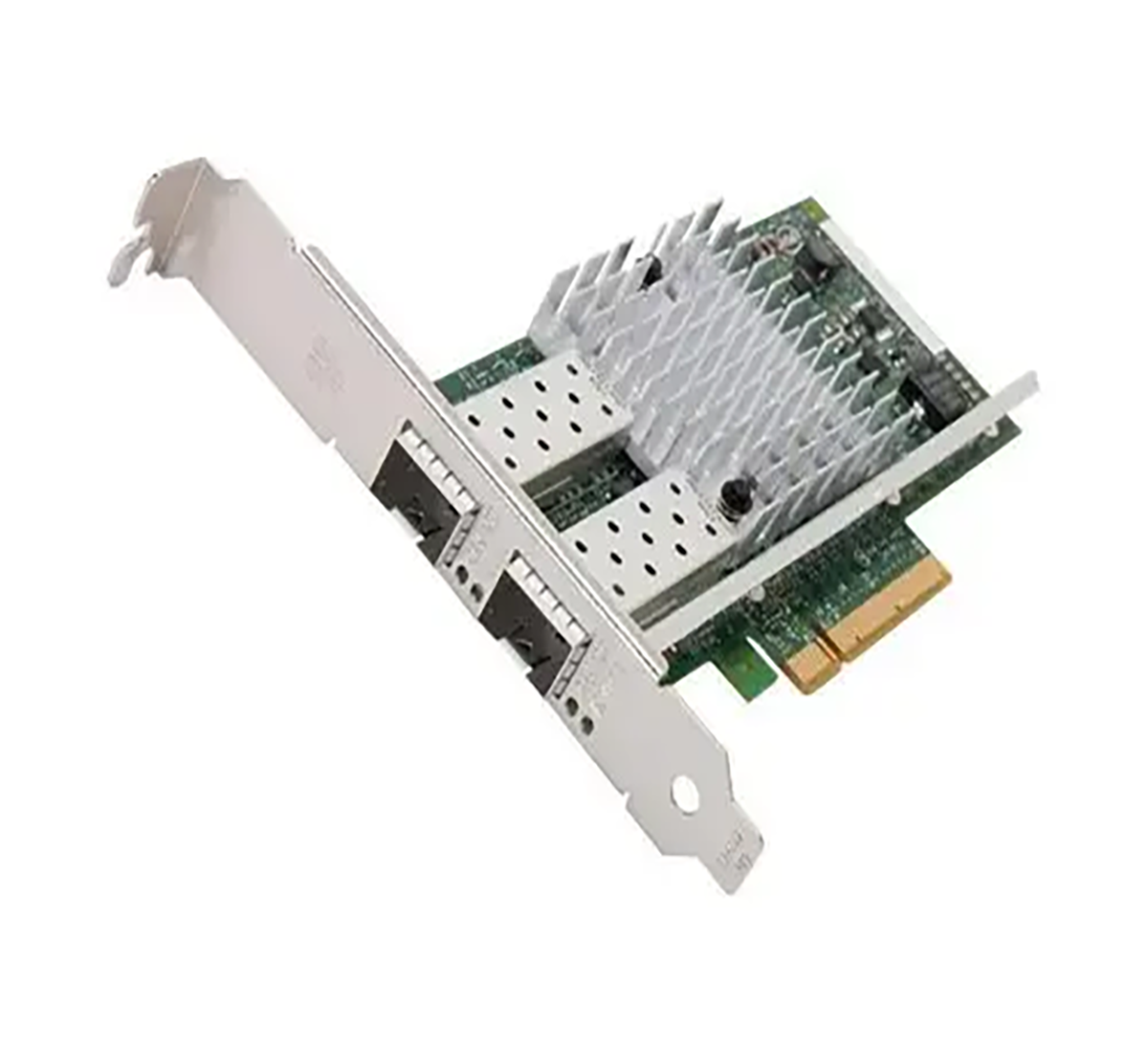

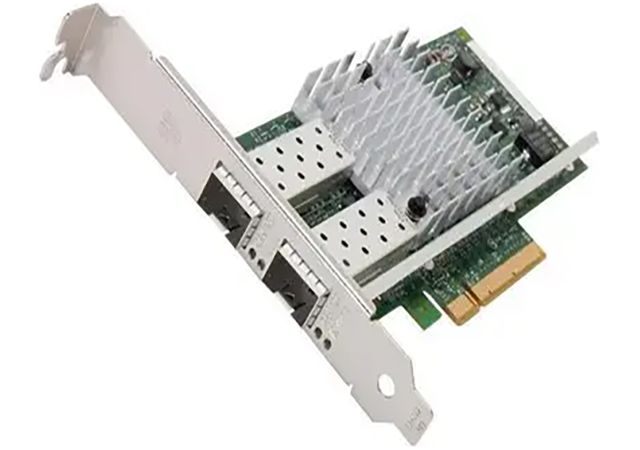

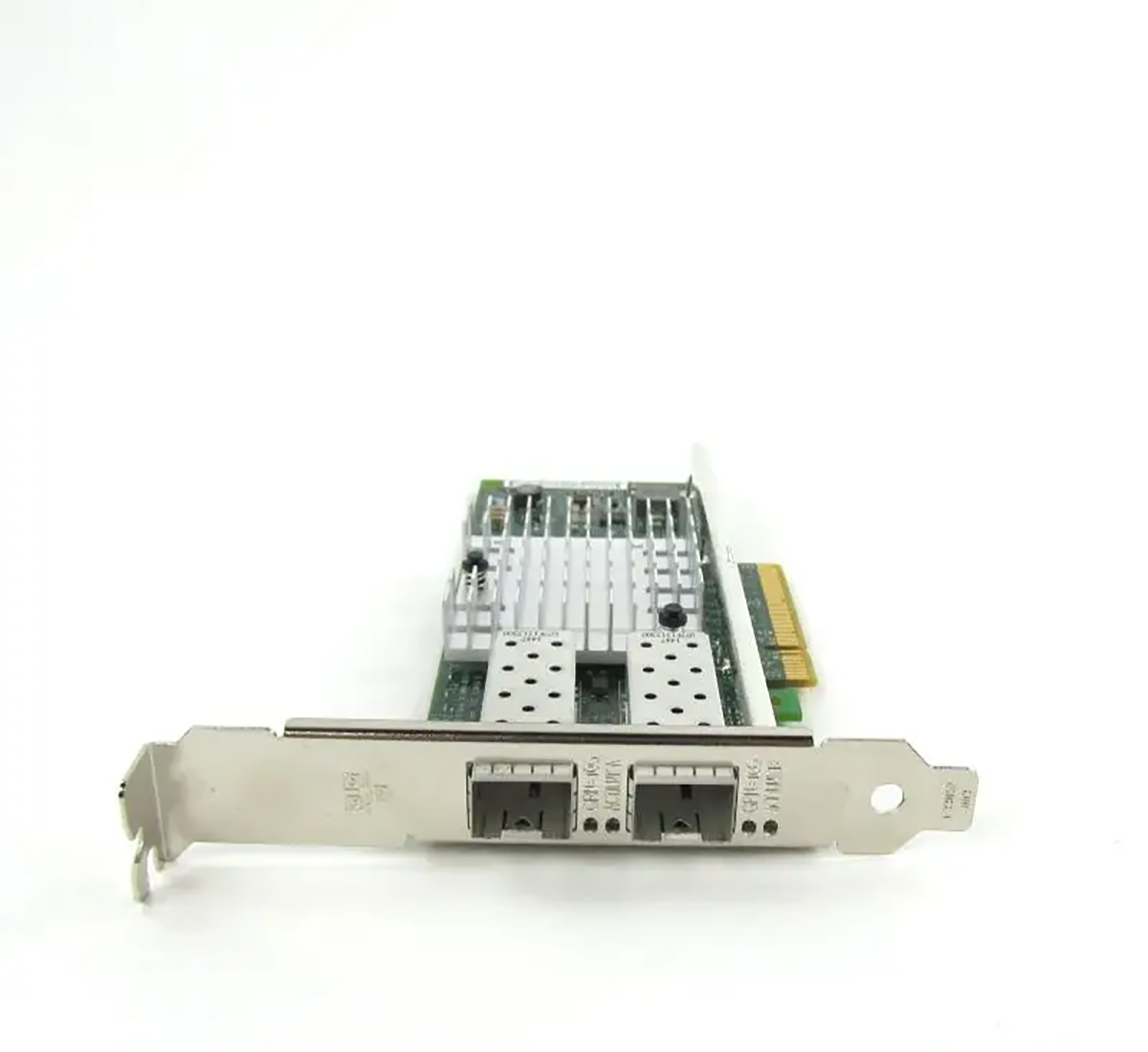

Cisco Part Number: N2XX-AIPCI01 is an Intel X520 Dual Port 10Gb SFP+ Adapter

Intel's Ethernet Converged Network Adapter X520 series is designed to meet the demands of today's challenging data center environments. As data center networks are increasingly pushed to their limits, the need for robust and high-speed connections becomes critical. The surge in server deployments with multi-core processors, coupled with the demands of high-performance computing (HPC), database clusters, and video-on-demand applications, underscores the necessity for 10 Gbps connections. These adapters cater to customers who require reliable performance for running mission-critical applications in virtualized settings.

N2XX-AIPCI01 quick spec:
Compliant Standards: IEEE 802.1ae , IEEE 802.1as , IEEE 802.1p , IEEE 802.1Q , IEEE 802.3 , IEEE 802.3ad (LACP)
Connectivity Technology: Wired
Data Link Protocol: 10 Gigabit Ethernet
Data Transfer Rate: 10 Gbps
Features: Accelerated iSCSI , Fault tolerance , Flow control , IPv4 support , IPv6 support , Link Aggregation Control Protocol (LACP) , Load balancing , Packet filtering , PXE support , Quality of Service (QoS) , Receive Side Scaling (RSS) , Single Root I/O Virtualization (SR-IOV) , Virtual Machine Device Queues (VMDq) , VLAN support
Form Factor: Plug-in card
Interface Type: PCI Express 2.0 x8
Low Profile: Low profile
Network Transport Protocol: IPSec , iSCSI , TCP/IP , UDP/IP
Ports Qty: 2
Remote Management Protocol: RMON , SNMP
Status Indicators: Link OK , Link/activity , Port transmission speed
Type: Network adapter
