Cisco Part Number: N9K-9348GC-FX3PH is a Nexus 9300 with 40x 10M/100M/1 Gbps BASE-T ports, 8x 10M/100M BASE-T half-duplex ports, 4x 10/25 Gbps SFP28 ports and 2 x 40/100 Gbps Quad small form-factor pluggable 28 (QSFP28) ports
Utilizing advanced Cisco Cloud Scale technology, the Cisco Nexus 9300-FX3 Series stands as the most recent iteration of access switches. Evolving from the Nexus 9300-FX series, this platform facilitates economical cloud-scale implementations, accommodating a greater number of endpoints while delivering wire-rate security and telemetry capabilities. Anchored in a contemporary system architecture, the platform is meticulously crafted to deliver elevated performance, addressing the dynamic requirements of expansive data centers and burgeoning enterprises.

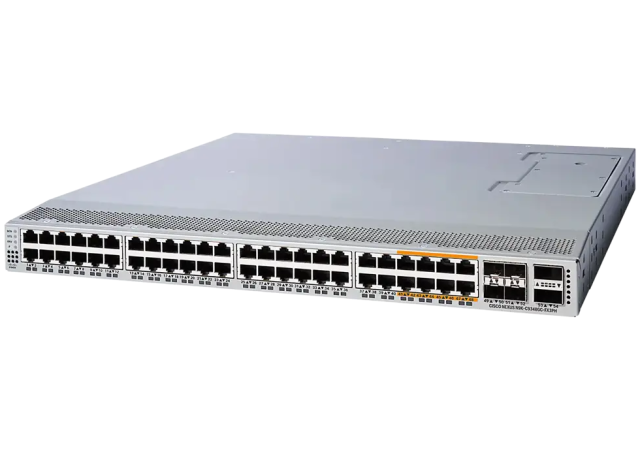

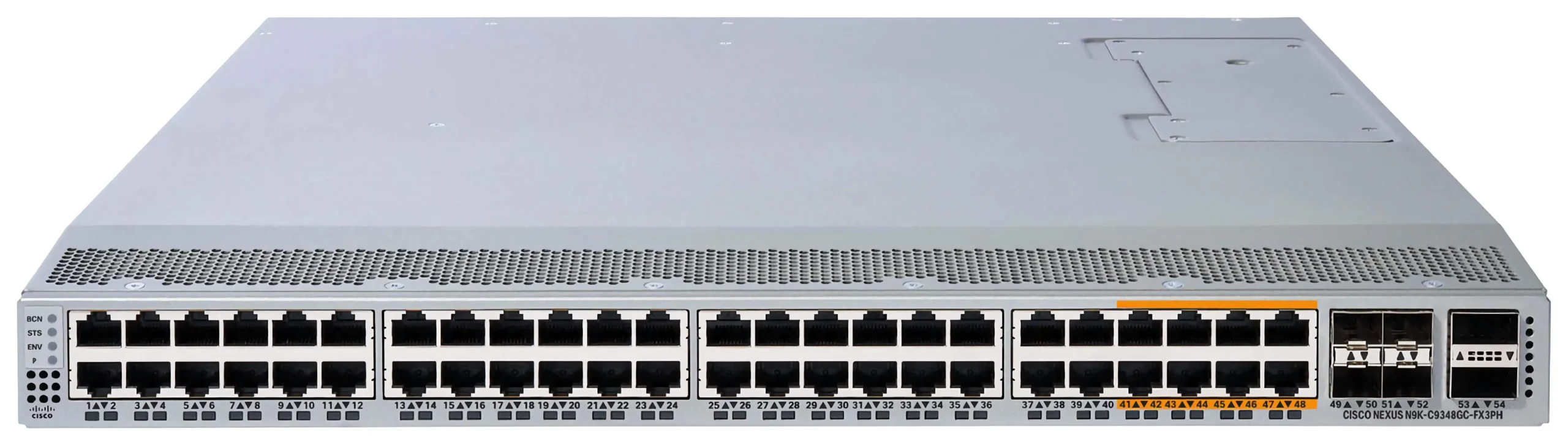

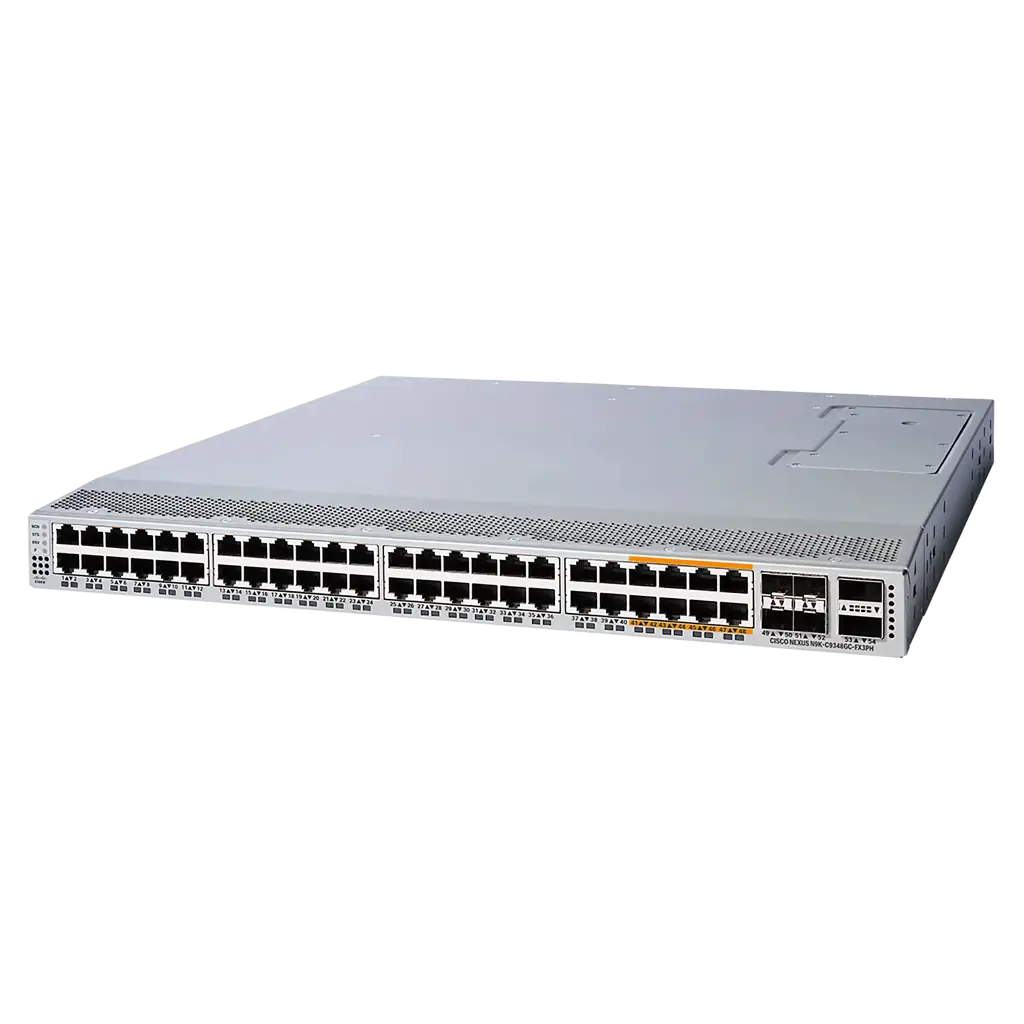

Introducing the Cisco Nexus N9K-9348GC-FX3PH Switch, a compact 1RU switch designed to deliver exceptional performance. This versatile switch boasts a remarkable bandwidth of 696 Gbps and an impressive throughput of over 517 Mpps.
Featuring 40 1GBASE-T downlink ports, the 9348GC-FX3PH provides flexibility by supporting configurations for 10-Mbps, 100-Mbps, or 1-Gbps operations. The last 8 downlink ports are exclusively customizable for 10-Mbps or 100-Mbps usage. Additionally, the switch is equipped with 4 SFP28 ports that can be configured as 1/10/25-Gbps, while the 2 QSFP28 ports offer configurations for 40- and 100-Gbps connections or a versatile combination of 10, 25, 40, and 100-Gbps connectivity. This design allows for seamless migration options, adapting to evolving network requirements.
It's important to note that the final 8 ports are optimized for half-duplex functionality, supporting speeds of 10Mbps and 100Mbps exclusively. This ensures efficient and tailored performance for specific network needs.
The Cisco Nexus N9K-9348GC-FX3PH Switch is an ideal choice for customers seeking a Gigabit Ethernet Top-of-Rack (ToR) switch with local switching capabilities. Whether you require high-speed connectivity, configuration flexibility, or a reliable solution for your evolving network infrastructure, this switch delivers the performance and adaptability needed to meet your specific requirements.
Cisco Nexus 9300-FX3 Series Switch specifications
|
Feature |
Cisco Nexus C93180YC-FX3 |
Cisco Nexus 93108TC-FX3P |
Cisco Nexus 9348GC-FX3 |
Cisco Nexus N9K-9348GC-FX3PH |
|---|---|---|---|---|
|
Ports |
Downlinks: 48 x 1/10/25-Gbps Uplinks: 6 x 40/100-Gbps QSFP28 ports |
Downlinks: 48 x 100M/1/2.5/5/10G BASE-T multigigabit-supported ports Uplinks: 6 x 40/100G QSFP28 ports |
Downlinks: 48 x 10M/100M/1G BASE-T multigigabit-supported ports Uplinks: 4 x 10/25G SFP28 and 2 x 40/100G QSFP28 ports |
Downlinks: 40 x 10M/100M/1G BASE-T and 8 x 10M/100M BASE-T multigigabit-supported half-duplex ports Uplinks: 4 x 10/25G SFP28 and 2 x 40/100G QSFP28 ports |
|
CPU |
6 cores |
4 cores |
4 cores |
4 cores |
|
System memory |
32 GB capable with 16G defaulted and 16G available as upgradeable option |
32 GB capable with 16G defaulted and 16G available as upgradeable option |
64 GB capable with 32G defaulted and 32G available as upgradable option |
64 GB capable with 32G defaulted and 32G available as upgradable option |
|
SSD drive |
128 GB |
128 GB |
128 GB |
128 GB |
|
System buffer |
40 MB |
40 MB |
40 MB |
40 MB |
|
Management ports |
1 RJ-45 port |
2 ports: 1 RJ-45 and 1 SFP+ |
2 ports: 1 RJ-45 and 1 SFP+ |
2 ports: 1 RJ-45 and 1 SFP+ |
|
USB ports |
1 |
1 |
1 |
1 |
