Cisco Part Number: N9K-C93108TC-FX-24 is a Cisco Nexus 9000 fixed with 24p 100M/1/10G BASE-T and 6p 40G/100G QSFP28
The Cisco Nexus 93180YC-FX3H, 93108TC-FX3H, 93180YC-FX-24, 93108TC-FX-24, 93180YC-EX-24, and 93108TC-EX-24 switches are part of the Cisco Nexus 9000 platform, leveraging Cisco® Cloud Scale technology. Designed for smaller data center deployments, these switches offer a cost-effective and compact solution. With a modern system architecture, they deliver high performance to meet the evolving demands of scalable data centers and growing enterprises.
The Cisco Nexus 9000 Series Switches provide a range of interface options, supporting seamless migration from 100-Mbps, 1-Gbps, and 10-Gbps to 25 Gbps at the server, and from 10- and 40-Gbps to 50 and 100 Gbps at the aggregation layer. Offering investment protection, these platforms feature large buffers, flexible Layer 2 and Layer 3 scalability, and performance adjustments to cater to the changing needs of virtualized data centers and automated cloud environments.
Cisco offers two operational modes for the Nexus 9000 Series Switches. In standard Cisco Nexus switch environments, organizations can deploy them using Cisco NX-OS Software (NX-OS mode). Alternatively, organizations can opt for the Cisco Application Centric Infrastructure (Cisco ACI™) platform-ready infrastructure, embracing an automated, policy-based, systems-management approach (ACI mode).

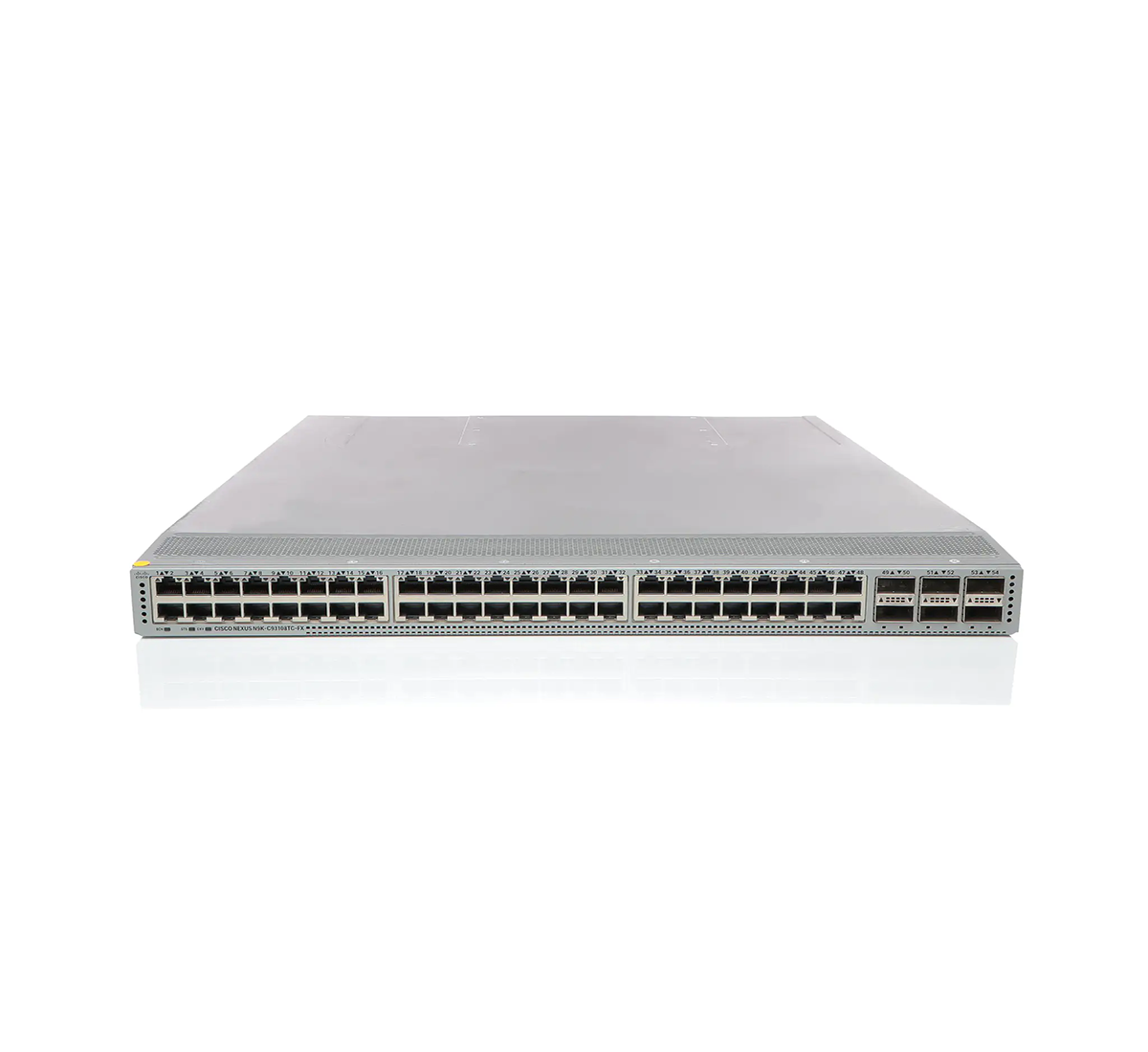

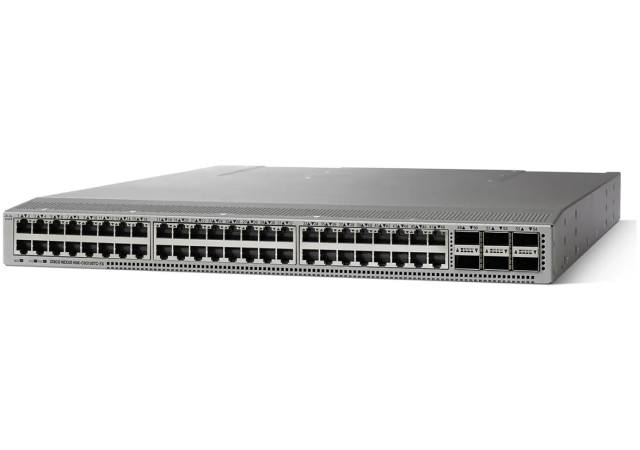

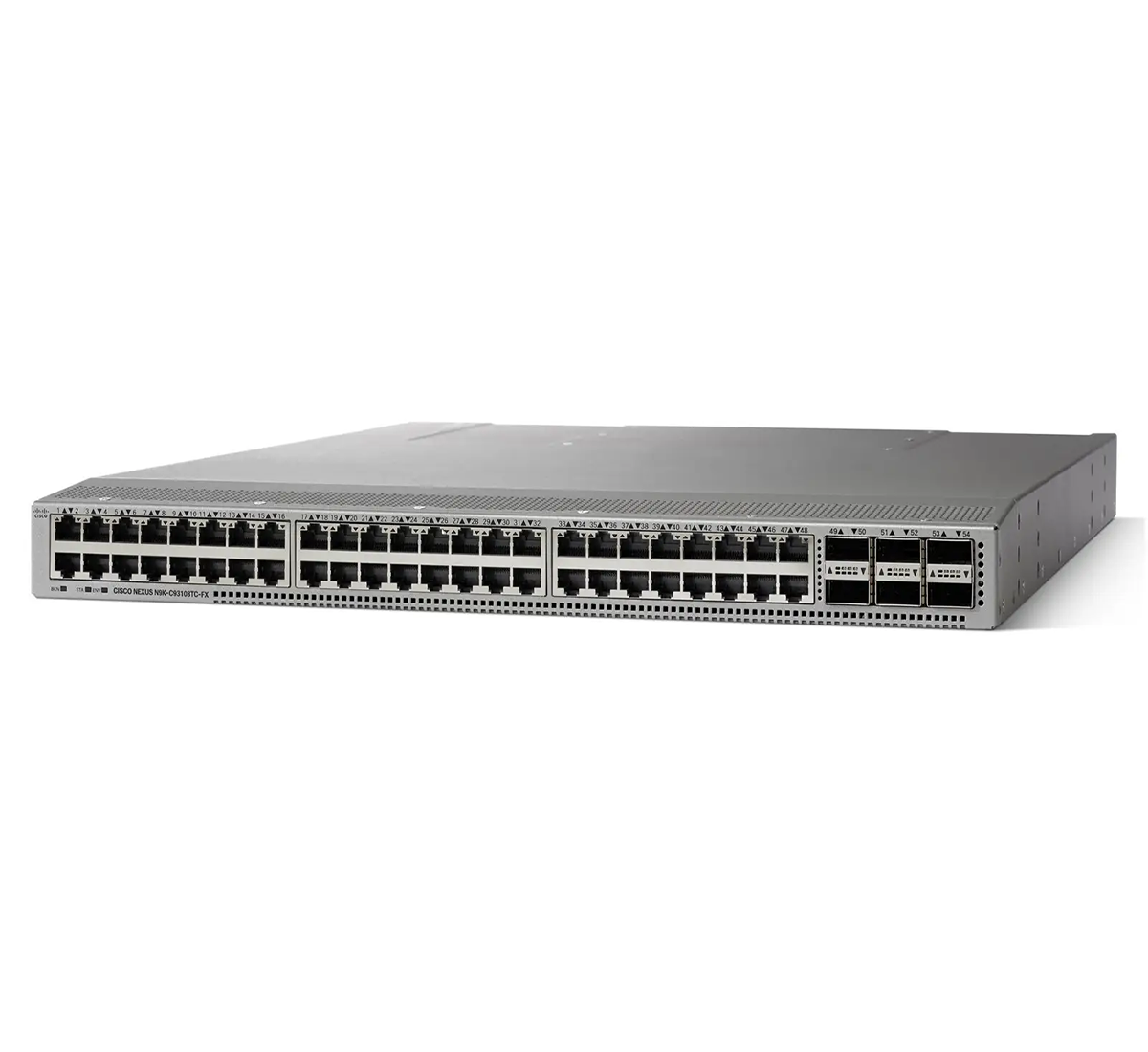

Cisco Nexus N9K-C93108TC-FX-24 - 24* x 100M/1/10GBASE-T ports and 6 x 40/100-Gbps QSFP28 ports
*Authorized for 24 downlink ports (total ports: 48) and 6 uplink ports. Expand to a 48-port license with N9K-FX-24P-UPG=.
The Cisco Nexus N9K-C93108TC-FX-24 is a 1RU switch featuring 24 flexible 10GBASE-T downlink ports (license for any 24 of 48 ports). These downlink ports can be configured to operate at 100-Mbps, 1-Gbps, or 10-Gbps. Additionally, the switch includes 6 uplink ports that can be configured as 40- or 100-Gbps ports, providing versatile migration possibilities.
Cisco Nexus 9300 Series Switch specifications:
|
Feature |
Cisco Nexus 93180YC-FX3H |
Cisco Nexus 93108TC-FX3H |
Cisco Nexus 93180YC-FX-24 |
Cisco Nexus N9K-C93108TC-FX-24 |
Cisco Nexus 93180YC-EX-24 |
Cisco Nexus 93108TC-EX-24 |
|---|---|---|---|---|---|---|
|
Ports |
24* x 10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports (*total number of ports is 48) |
24* x 10GBASE-T and 6 x 40/100-Gbps QSFP28 ports (*total number of ports is 48) |
24* x 10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports (*total number of ports is 48) |
24* x 10GBASE-T and 6 x 40/100-Gbps QSFP28 ports (*total number of ports is 48) |
24* x 10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports (*total number of ports is 48) |
24* x 10GBASE-T and 6 x 40/100-Gbps QSFP28 ports (*total number of ports is 48) |
|
Downlink supported speeds |
1/10/25-Gbps speeds |
100-Mbps and 1/10-Gbps speeds |
1/10/25-Gbps speeds |
100-Mbps and 1/10-Gbps speeds |
1/10/25-Gbps speeds |
100-Mbps and 1/10-Gbps speeds |
|
CPU |
6 cores |
4 cores |
4 cores |
4 cores |
4 cores |
4 cores |
|
System memory |
Upto 32 GB |
Upto 32 GB |
24 GB |
24 GB |
24 GB |
24 GB |
|
SSD drive |
128 GB |
128 GB |
64 GB |
64 GB |
64 GB |
64 GB |
|
System buffer |
40 MB |
40 MB |
40 MB |
40 MB |
40 MB |
40 MB |
|
Management ports |
1 RJ-45 port |
2 ports: 1 RJ-45 and 1 SFP |
1 RJ-45 port L1 and L2 ports are unused |
2 ports: 1 RJ-45 and 1 SFP |
2 ports: 1 RJ-45 and 1 SFP |
2 ports: 1 RJ-45 and 1 SFP |
|
USB ports |
1 |
1 |
1 |
1 |
1 |
1 |
|
RS-232 serial ports |
1 |
1 |
1 |
1 |
1 |
1 |
