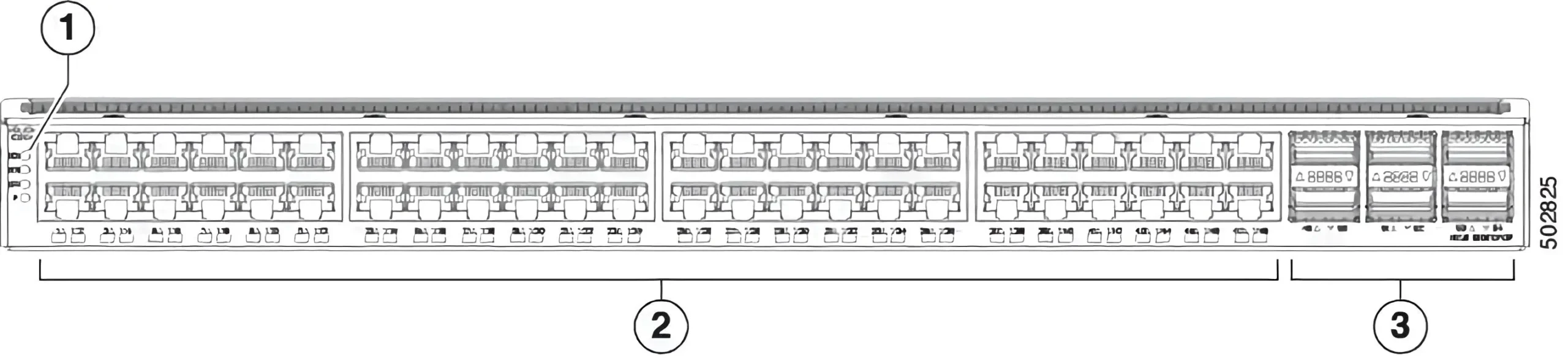

Cisco Part Number: N9K-C93108TC-FX3P is a Nexus 9300 with 48 x 100M/1/2.5/5/10 Gbps BASE-T ports and 6 x 40/100 Gbps Quad small form-factor pluggable 28 (QSFP28) ports
Utilizing advanced Cisco Cloud Scale technology, the Cisco Nexus 9300-FX3 Series stands as the most recent iteration of access switches. Evolving from the Nexus 9300-FX series, this platform facilitates economical cloud-scale implementations, accommodating a greater number of endpoints while delivering wire-rate security and telemetry capabilities. Anchored in a contemporary system architecture, the platform is meticulously crafted to deliver elevated performance, addressing the dynamic requirements of expansive data centers and burgeoning enterprises.

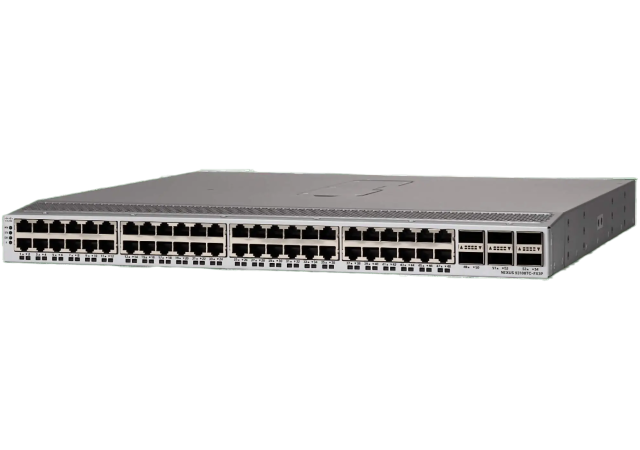

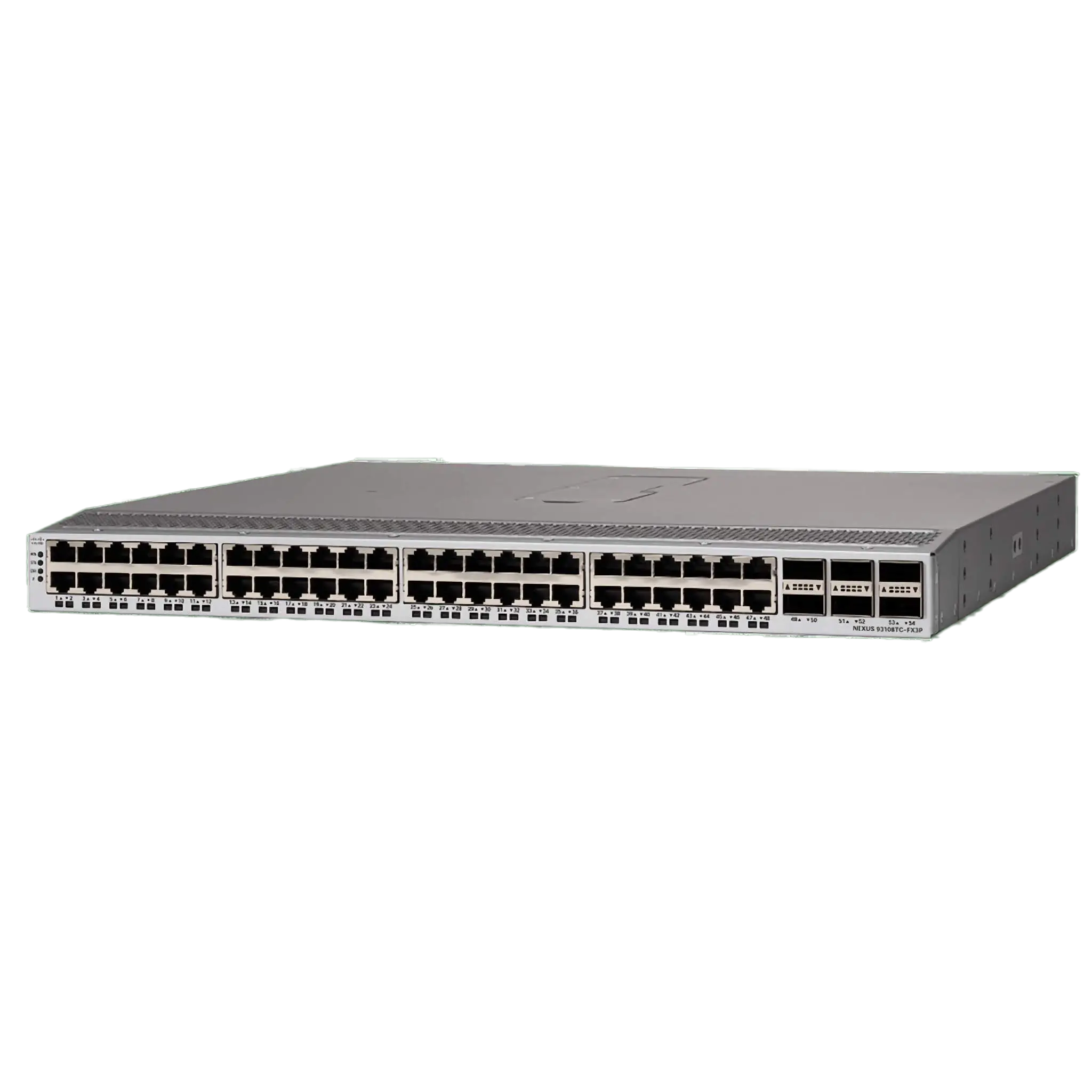

Presenting the Cisco Nexus N9K-C93108TC-FX3P Switch, a streamlined 1 RU switch designed to deliver a formidable 2.16 Tbps of bandwidth and process 1.2 Billion packets per second (Bppss). This switch boasts adaptable port-speed configurations, accommodating 48 ports capable of 100M/1/2.5/5/10G BASE-T on the downlinks. Additionally, the 6 uplink ports are equipped to support 40/100G QSFP 28. The 93108TC-FX3P proves to be an ideal solution for network customers seeking enhanced versatility and flexibility across a range of networking speeds.
Cisco Nexus 9300-FX3 Series Switch specifications
|
Feature |
Cisco Nexus C93180YC-FX3 |
Cisco Nexus N9K-C93108TC-FX3P |
Cisco Nexus 9348GC-FX3 |
Cisco Nexus 9348GC-FX3PH |
|---|---|---|---|---|
|
Ports |
Downlinks: 48 x 1/10/25-Gbps Uplinks: 6 x 40/100-Gbps QSFP28 ports |
Downlinks: 48 x 100M/1/2.5/5/10G BASE-T multigigabit-supported ports Uplinks: 6 x 40/100G QSFP28 ports |
Downlinks: 48 x 10M/100M/1G BASE-T multigigabit-supported ports Uplinks: 4 x 10/25G SFP28 and 2 x 40/100G QSFP28 ports |
Downlinks: 40 x 10M/100M/1G BASE-T and 8 x 10M/100M BASE-T multigigabit-supported half-duplex ports Uplinks: 4 x 10/25G SFP28 and 2 x 40/100G QSFP28 ports |
|
CPU |
6 cores |
4 cores |
4 cores |
4 cores |
|
System memory |
32 GB capable with 16G defaulted and 16G available as upgradeable option |
32 GB capable with 16G defaulted and 16G available as upgradeable option |
64 GB capable with 32G defaulted and 32G available as upgradable option |
64 GB capable with 32G defaulted and 32G available as upgradable option |
|
SSD drive |
128 GB |
128 GB |
128 GB |
128 GB |
|
System buffer |
40 MB |
40 MB |
40 MB |
40 MB |
|
Management ports |
1 RJ-45 port |
2 ports: 1 RJ-45 and 1 SFP+ |
2 ports: 1 RJ-45 and 1 SFP+ |
2 ports: 1 RJ-45 and 1 SFP+ |
|
USB ports |
1 |
1 |
1 |
1 |
