Cisco Part Number: N9K-C93180YC-FX3 is a Nexus 9300 with 48p 1/10G/25G SFP and 6p 40G/100G QSFP28
Utilizing advanced Cisco Cloud Scale technology, the Cisco Nexus 9300-FX3 Series stands as the most recent iteration of access switches. Evolving from the Nexus 9300-FX series, this platform facilitates economical cloud-scale implementations, accommodating a greater number of endpoints while delivering wire-rate security and telemetry capabilities. Anchored in a contemporary system architecture, the platform is meticulously crafted to deliver elevated performance, addressing the dynamic requirements of expansive data centers and burgeoning enterprises.

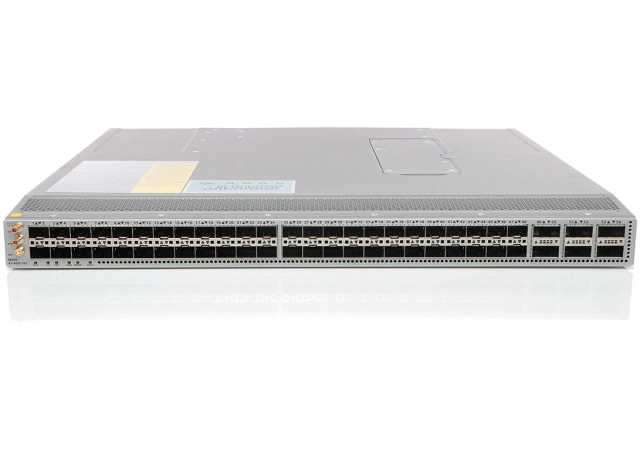

The Cisco Nexus N9K-C93180YC-FX3 Switch is a compact 1RU switch engineered to provide a formidable 3.6 Tbps of bandwidth and handle 1.2 Bpps. Featuring 48 downlink ports, the 93180YC-FX3 is versatile, accommodating Ethernet speeds of 1, 10, or 25 Gbps. This flexibility not only caters to diverse deployment needs but also safeguards your investment.
For enhanced adaptability, the switch is equipped with 6 uplink ports that can be seamlessly configured to operate at either 40 or 100 Gbps Ethernet speeds, facilitating agile migration options. Specifically designed for telecommunication data-center edge environments, the Cisco Nexus 93180YC-FX3 switch supports standard PTP (Precision Time Protocol) telecom profiles. It incorporates SyncE (Synchronous Ethernet) and functions as a PTP boundary clock, enhancing its suitability for telco applications.
Cisco Nexus 9300-FX3 Series Switch specifications
|
Feature |
Cisco Nexus N9K-C93180YC-FX3 |
Cisco Nexus 93108TC-FX3P |
Cisco Nexus 9348GC-FX3 |
Cisco Nexus 9348GC-FX3PH |
|---|---|---|---|---|
|
Ports |
Downlinks: 48 x 1/10/25-Gbps Uplinks: 6 x 40/100-Gbps QSFP28 ports |
Downlinks: 48 x 100M/1/2.5/5/10G BASE-T multigigabit-supported ports Uplinks: 6 x 40/100G QSFP28 ports |
Downlinks: 48 x 10M/100M/1G BASE-T multigigabit-supported ports Uplinks: 4 x 10/25G SFP28 and 2 x 40/100G QSFP28 ports |
Downlinks: 40 x 10M/100M/1G BASE-T and 8 x 10M/100M BASE-T multigigabit-supported half-duplex ports Uplinks: 4 x 10/25G SFP28 and 2 x 40/100G QSFP28 ports |
|
CPU |
6 cores |
4 cores |
4 cores |
4 cores |
|
System memory |
32 GB capable with 16G defaulted and 16G available as upgradeable option |
32 GB capable with 16G defaulted and 16G available as upgradeable option |
64 GB capable with 32G defaulted and 32G available as upgradable option |
64 GB capable with 32G defaulted and 32G available as upgradable option |
|
SSD drive |
128 GB |
128 GB |
128 GB |
128 GB |
|
System buffer |
40 MB |
40 MB |
40 MB |
40 MB |
|
Management ports |
1 RJ-45 port |
2 ports: 1 RJ-45 and 1 SFP+ |
2 ports: 1 RJ-45 and 1 SFP+ |
2 ports: 1 RJ-45 and 1 SFP+ |
|
USB ports |
1 |
1 |
1 |
1 |
