BRAND: Cisco

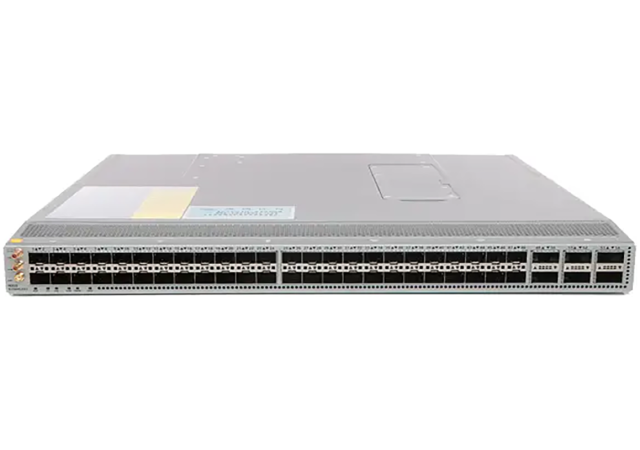

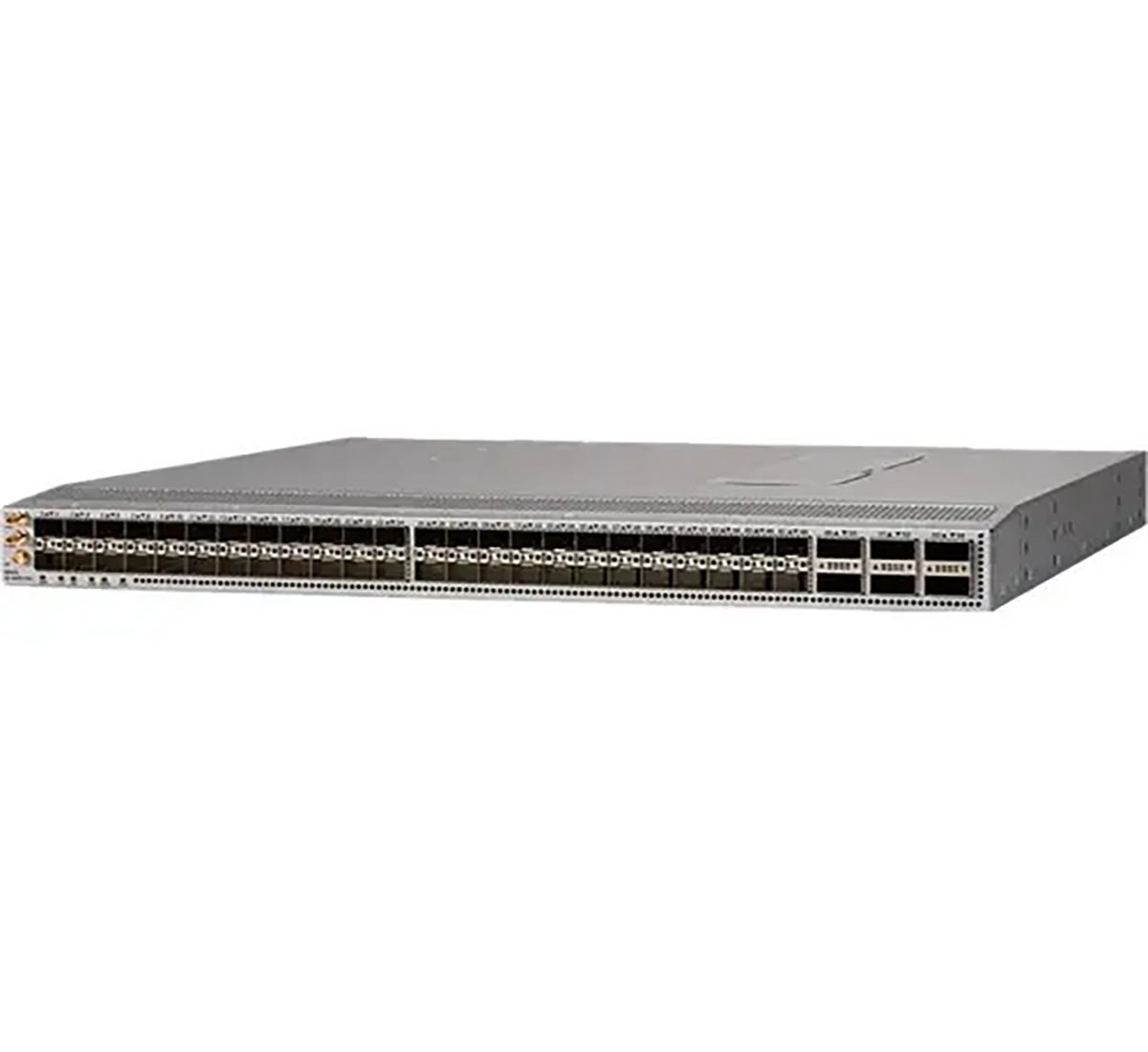

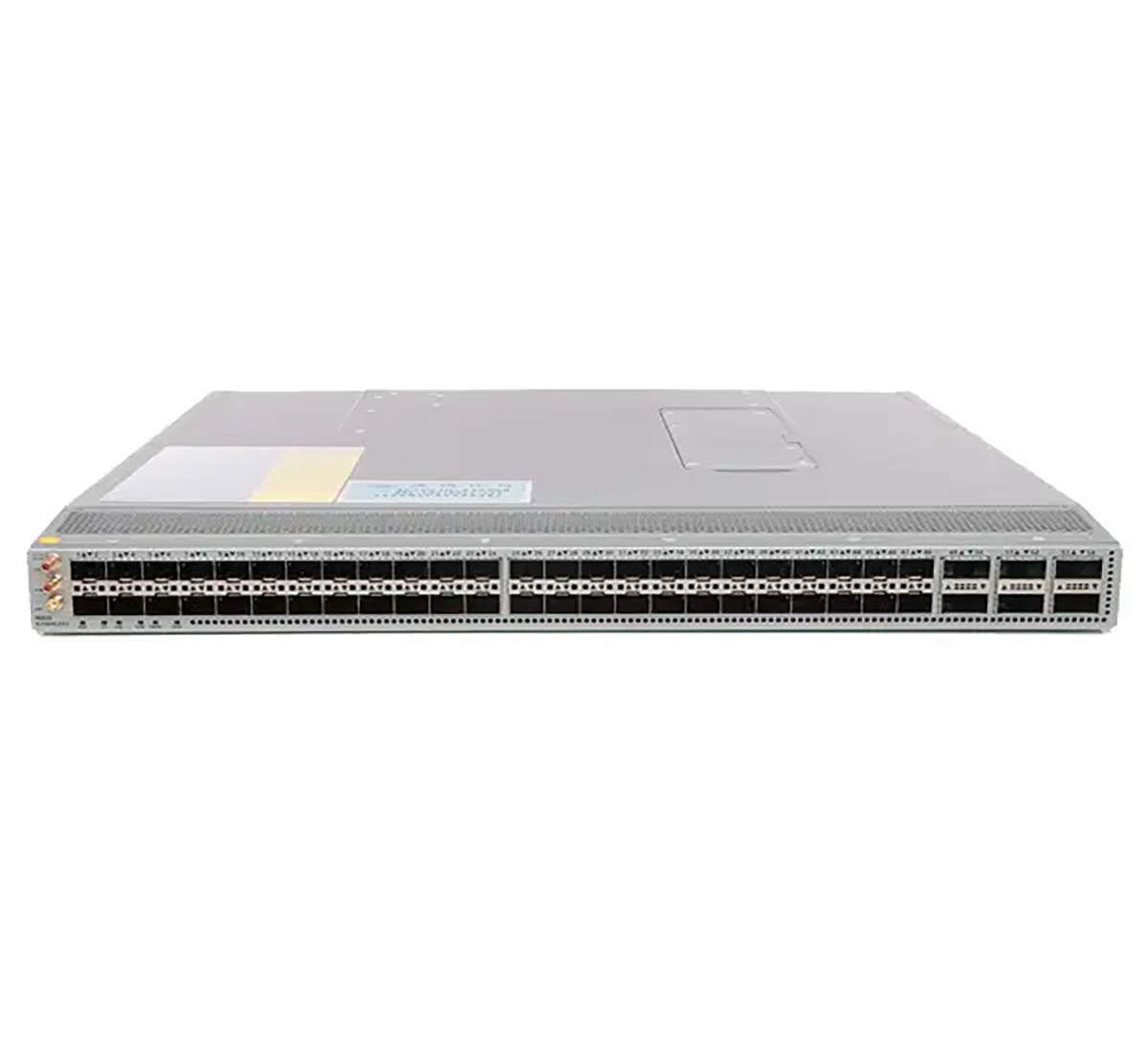

Cisco Nexus N9K-C93180YC-FX3H - Data Centre Switch

MPN: N9K-C93180YC-FX3H
£12,161.07
£14,593.28 Incl. VAT
AVAILABLE TO ORDER
FINANCE AVAILABLE
Paypal Visa Mastercard American Express
Free Technical Support
Can't decide?
Free Technical Support
We can help you decide which hardware is best for you
orders@cloudappliances.co.uk 020 3880 8840 Mon-Fri: 8AM-7PM
Description
Tech Overview
Links & Documents

Cisco Part Number: N9K-C93180YC-FX3H is a Cisco Nexus 9000 fixed with 24p 1/10G/25G SFP and 6p 40G/100G QSFP28

The Cisco Nexus 93180YC-FX3H, 93108TC-FX3H, 93180YC-FX-24, 93108TC-FX-24, 93180YC-EX-24, and 93108TC-EX-24 switches are part of the Cisco Nexus 9000 platform, leveraging Cisco® Cloud Scale technology. Designed for smaller data center deployments, these switches offer a cost-effective and compact solution. With a modern system architecture, they deliver high performance to meet the evolving demands of scalable data centers and growing enterprises.

The Cisco Nexus 9000 Series Switches provide a range of interface options, supporting seamless migration from 100-Mbps, 1-Gbps, and 10-Gbps to 25 Gbps at the server, and from 10- and 40-Gbps to 50 and 100 Gbps at the aggregation layer. Offering investment protection, these platforms feature large buffers, flexible Layer 2 and Layer 3 scalability, and performance adjustments to cater to the changing needs of virtualized data centers and automated cloud environments.

Cisco offers two operational modes for the Nexus 9000 Series Switches. In standard Cisco Nexus switch environments, organizations can deploy them using Cisco NX-OS Software (NX-OS mode). Alternatively, organizations can opt for the Cisco Application Centric Infrastructure (Cisco ACI™) platform-ready infrastructure, embracing an automated, policy-based, systems-management approach (ACI mode).

Cisco Nexus N9K-C93180YC-FX3H - 24* x 1/10/25-Gbps fiber ports and 6 x 40/100-Gbps Quad Small Form-Factor Pluggable 28 (QSFP28) ports

*Authorized for 24 downlink ports (total ports: 48) and 6 uplink ports. Expand to a 48-port license with N9K-FX-24P-UPG=.

The Cisco Nexus N9K-C93180YC-FX3H is a 1RU switch with 24 downlink ports (configurable among 48), supporting 1-, 10-, or 25-Gbps Ethernet. Its 6 uplink ports are adaptable for 40 and 100-Gbps Ethernet, providing versatile migration choices. Consult the Licensing guide section to activate platform features. Additionally, the Cisco Nexus 93180YC-FX3H switch accommodates standard PTP Telecom profiles, featuring SyncE and PTP boundary clock functionality tailored for Telco data center edge environments.

Cisco Nexus 9300 Series Switch specifications:

Feature

Cisco Nexus N9K-C93180YC-FX3H

Cisco Nexus 93108TC-FX3H

Cisco Nexus 93180YC-FX-24

Cisco Nexus 93108TC-FX-24

Cisco Nexus 93180YC-EX-24

Cisco Nexus 93108TC-EX-24

Ports

24* x 10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports

(*total number of ports is 48)

24* x 10GBASE-T and 6 x 40/100-Gbps QSFP28 ports

(*total number of ports is 48)

24* x 10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports

(*total number of ports is 48)

24* x 10GBASE-T and 6 x 40/100-Gbps QSFP28 ports

(*total number of ports is 48)

24* x 10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports

(*total number of ports is 48)

24* x 10GBASE-T and 6 x 40/100-Gbps QSFP28 ports

(*total number of ports is 48)

Downlink supported speeds

1/10/25-Gbps speeds

100-Mbps and 1/10-Gbps speeds

1/10/25-Gbps speeds

100-Mbps and 1/10-Gbps speeds

1/10/25-Gbps speeds

100-Mbps and 1/10-Gbps speeds

CPU

6 cores

4 cores

4 cores

4 cores

4 cores

4 cores

System memory

Upto 32 GB

Upto 32 GB

24 GB

24 GB

24 GB

24 GB

SSD drive

128 GB

128 GB

64 GB

64 GB

64 GB

64 GB

System buffer

40 MB

40 MB

40 MB

40 MB

40 MB

40 MB

Management ports

1 RJ-45 port

2 ports: 1 RJ-45 and 1 SFP

1 RJ-45 port

L1 and L2 ports are unused

2 ports: 1 RJ-45 and 1 SFP

2 ports: 1 RJ-45 and 1 SFP

2 ports: 1 RJ-45 and 1 SFP

USB ports

1

1

1

1

1

1

RS-232 serial ports

1

1

1

1

1

1
