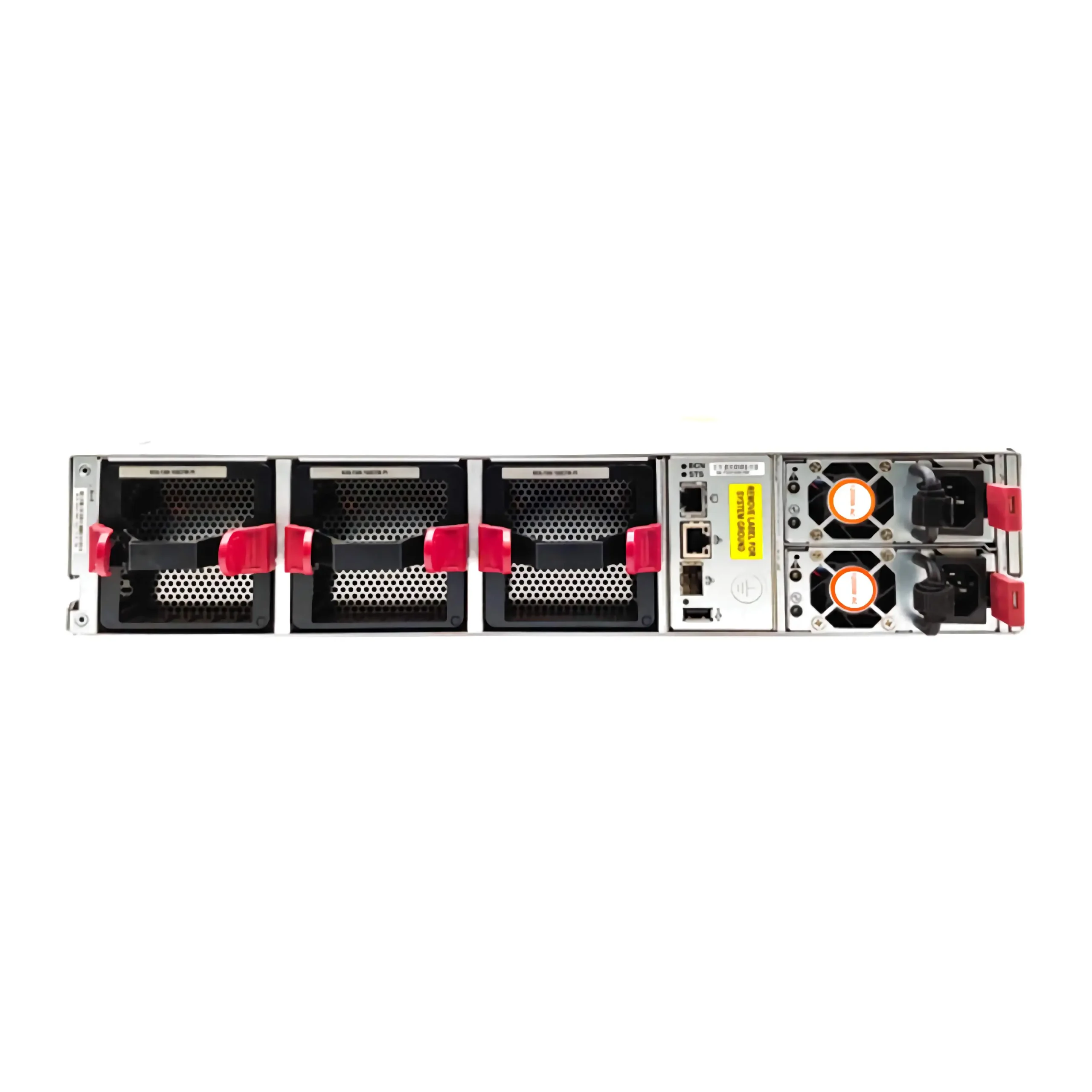

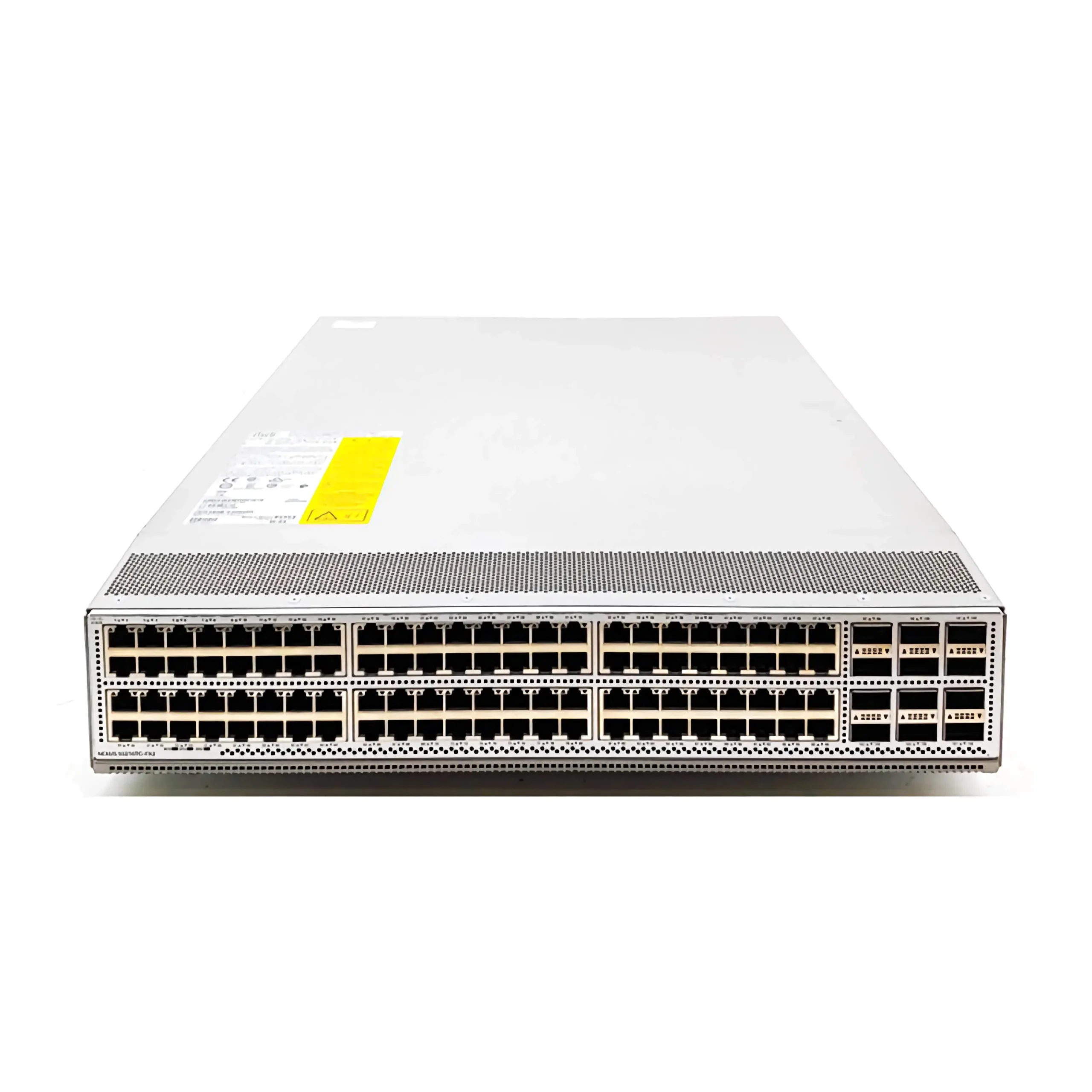

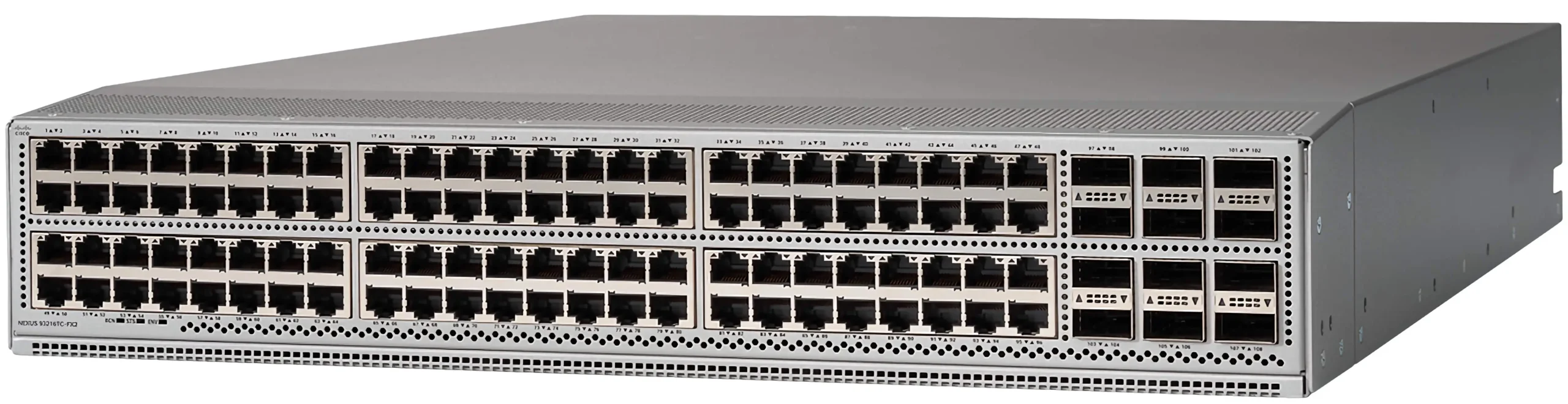

Cisco Part Number: N9K-C93216TC-FX2= is a Cisco Nexus 96p 100M/1/10GBASE-T and 12p 40G/100G QSFP28 switch (spare)
The Cisco Nexus 9300-FX2 Series switches are part of the fixed Cisco Nexus 9000 platform utilizing Cisco Cloud Scale technology. Designed for cost-effective cloud-scale deployments, these switches support increased endpoints, wire-rate security, and telemetry for cloud services. The platform features modern system architecture, delivering high performance to meet the evolving demands of scalable data centers and expanding enterprises.
An extension of the Nexus 9300-FX series, the 9300-FX2 series boasts higher bandwidth capacity. With various interface options, these switches enable a seamless transition from 1-Gbps and 10-Gbps speeds to 25-Gbps at the server, and from 10- and 40-Gbps speeds to 50- and 100-Gbps at the aggregation layer. Offering investment protection, the platforms provide large buffers, highly flexible Layer 2 and Layer 3 scalability, and performance adjustments to align with the dynamic requirements of virtualized data centers and automated cloud environments.

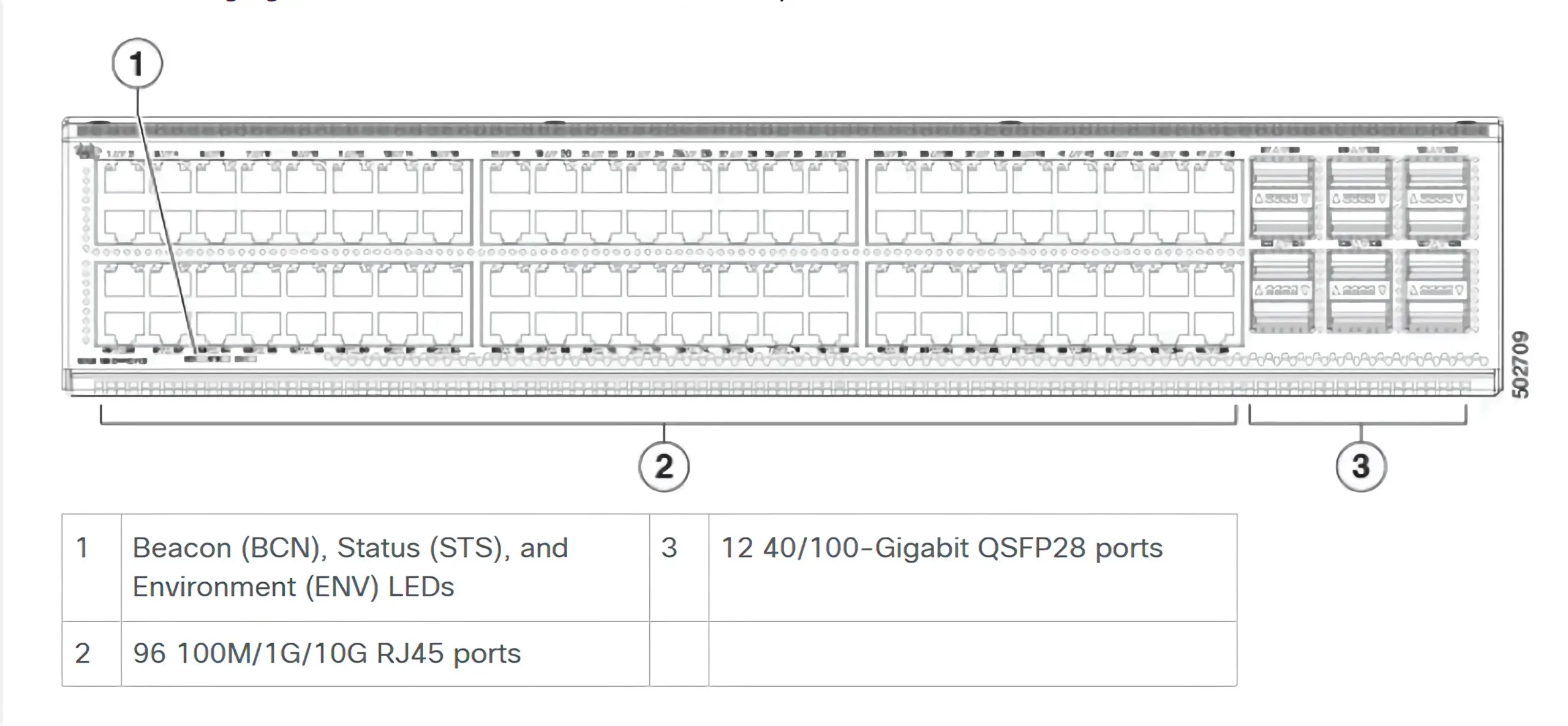

The Cisco Nexus N9K-C93216TC-FX2= Switch is a 2RU switch with a bandwidth of 4.32 Tbps and over 2.5 billion packets per second (bpps). The switch features 96 downlink ports that can be configured as 100-Mbps, 1-Gbps, or 10-Gbps ports. Additionally, the 12 uplink ports provide flexible migration options, supporting configurations of 40- and 100-Gbps ports.
The Cisco Nexus 9300-FX2 series provide the following features:
