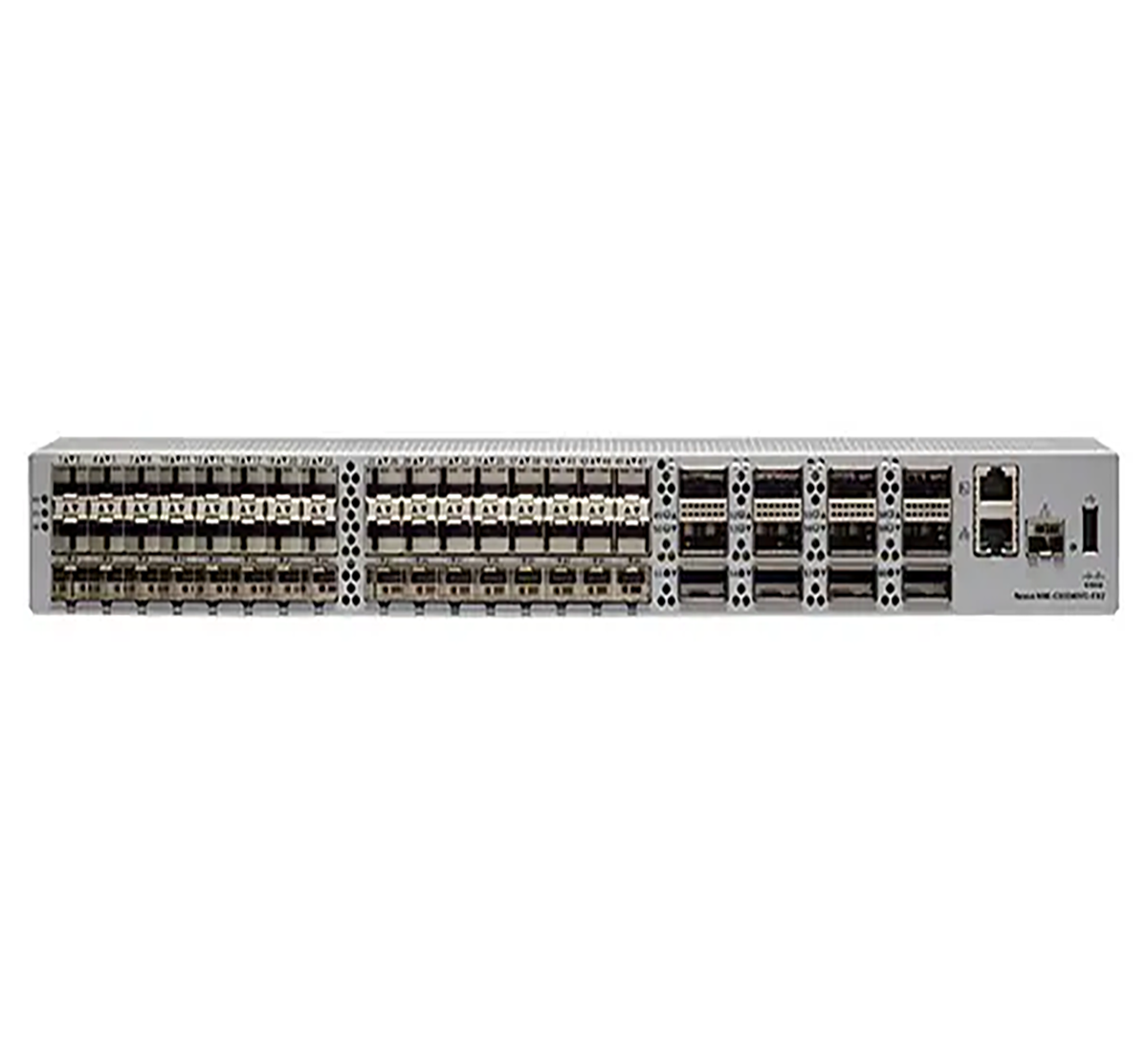

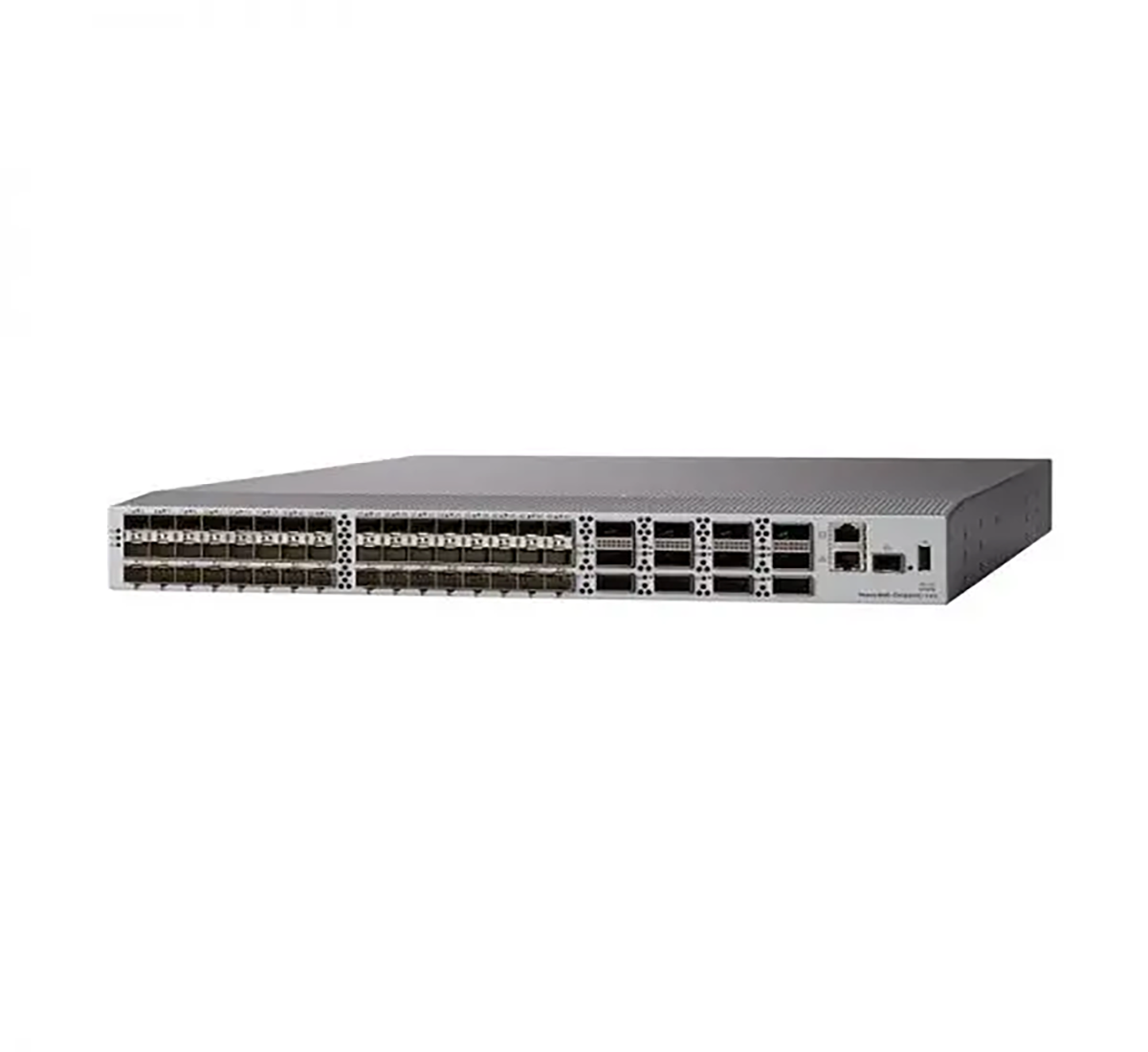

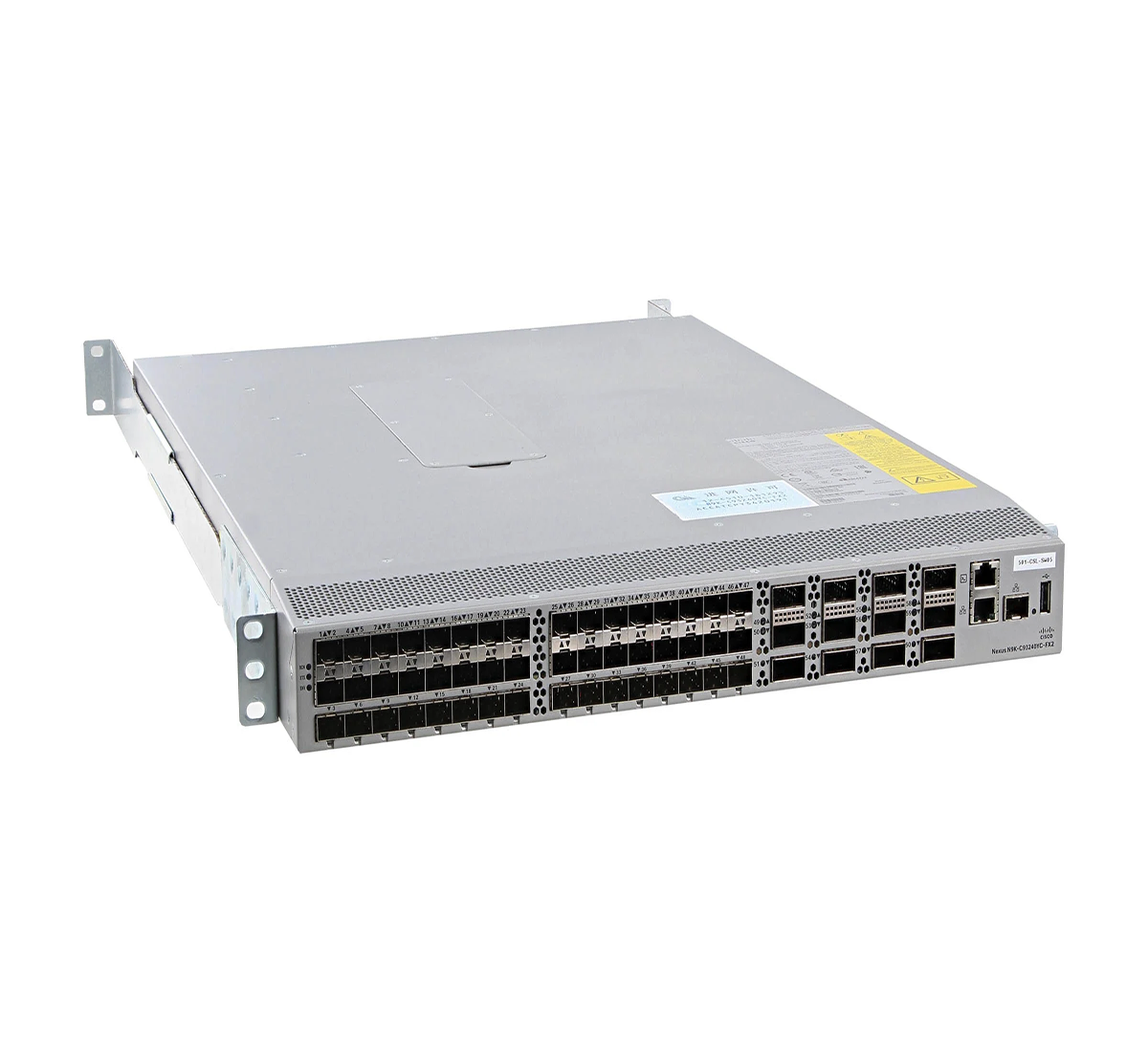

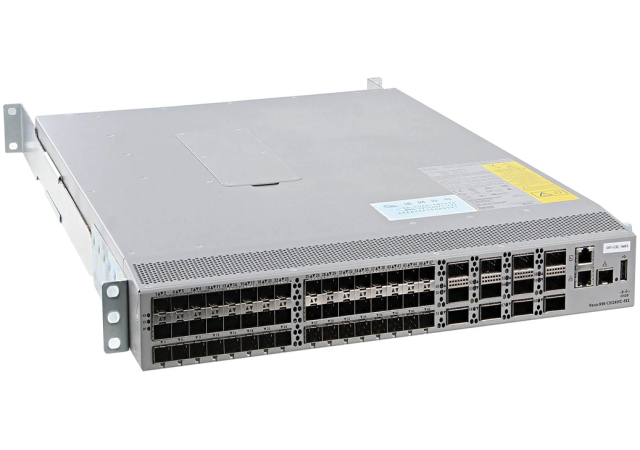

Cisco Part Number: N9K-C93240YC-FX2 is a Cisco Nexus 9K Fixed with 48p 1/10G/25G SFP and 12p 40G/100G QSFP28 switch
The Cisco Nexus 9300-FX2 Series switches are part of the fixed Cisco Nexus 9000 platform utilizing Cisco Cloud Scale technology. Designed for cost-effective cloud-scale deployments, these switches support increased endpoints, wire-rate security, and telemetry for cloud services. The platform features modern system architecture, delivering high performance to meet the evolving demands of scalable data centers and expanding enterprises.
An extension of the Nexus 9300-FX series, the 9300-FX2 series boasts higher bandwidth capacity. With various interface options, these switches enable a seamless transition from 1-Gbps and 10-Gbps speeds to 25-Gbps at the server, and from 10- and 40-Gbps speeds to 50- and 100-Gbps at the aggregation layer. Offering investment protection, the platforms provide large buffers, highly flexible Layer 2 and Layer 3 scalability, and performance adjustments to align with the dynamic requirements of virtualized data centers and automated cloud environments.
The Cisco Nexus N9K-C93240YC-FX2 Switch is a 1.2RU model with a capacity of 4.8 Tbps and over 2.5bpps. Featuring 48 downlink ports supporting 1/10/25-Gbps and 12 uplink ports configurable as 40- and 100-Gbps, it allows versatile migration. This switch is well-suited for non-oversubscribed solutions in a compact design. Additionally, it supports FC-FEC and RS-FEC for extended-distance 25Gbps connectivity.
The Cisco Nexus 9300-FX2 series provide the following features:
