Cisco Nexus N9K-C9332D-GX2B - Data Centre Switch

Cisco Part Number: N9K-C9332D-GX2B is a Cisco Nexus 9332D-GX2B Switch with 32p 400/100-Gbps QSFP-DD ports and 2p 1/10 SFP+ ports

The Cisco Nexus 9300-GX2 series meets demands for high-performance, power-efficient, compact networking switches. These switches support 50G, 100G, 200G, and 400G fabrics for advanced leaf and spine designs and IP storage networks. The platform features backward-compatible 400G optical interface QSFP-DD for seamless migration from 40G/100G to 400G, along with various port speeds (10G, 25G, 50G, and 200G) using breakouts. Cisco offers two operational modes for Nexus 9000 Series Switches: Cisco ACI or Cisco NX-OS.

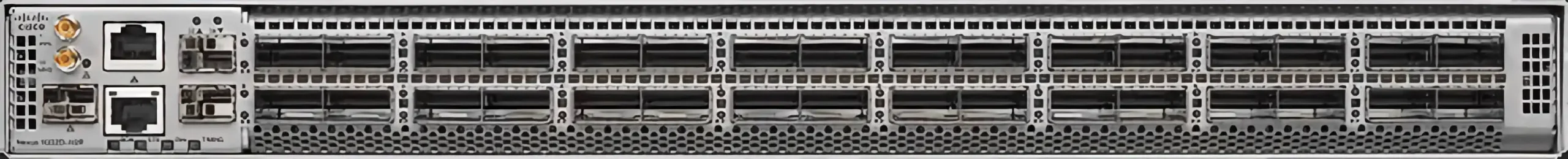

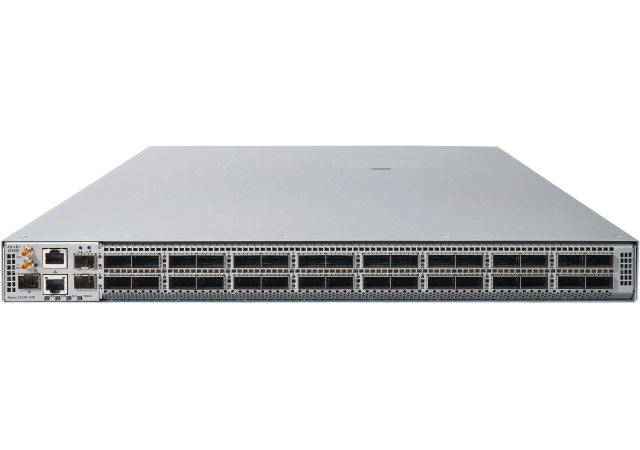

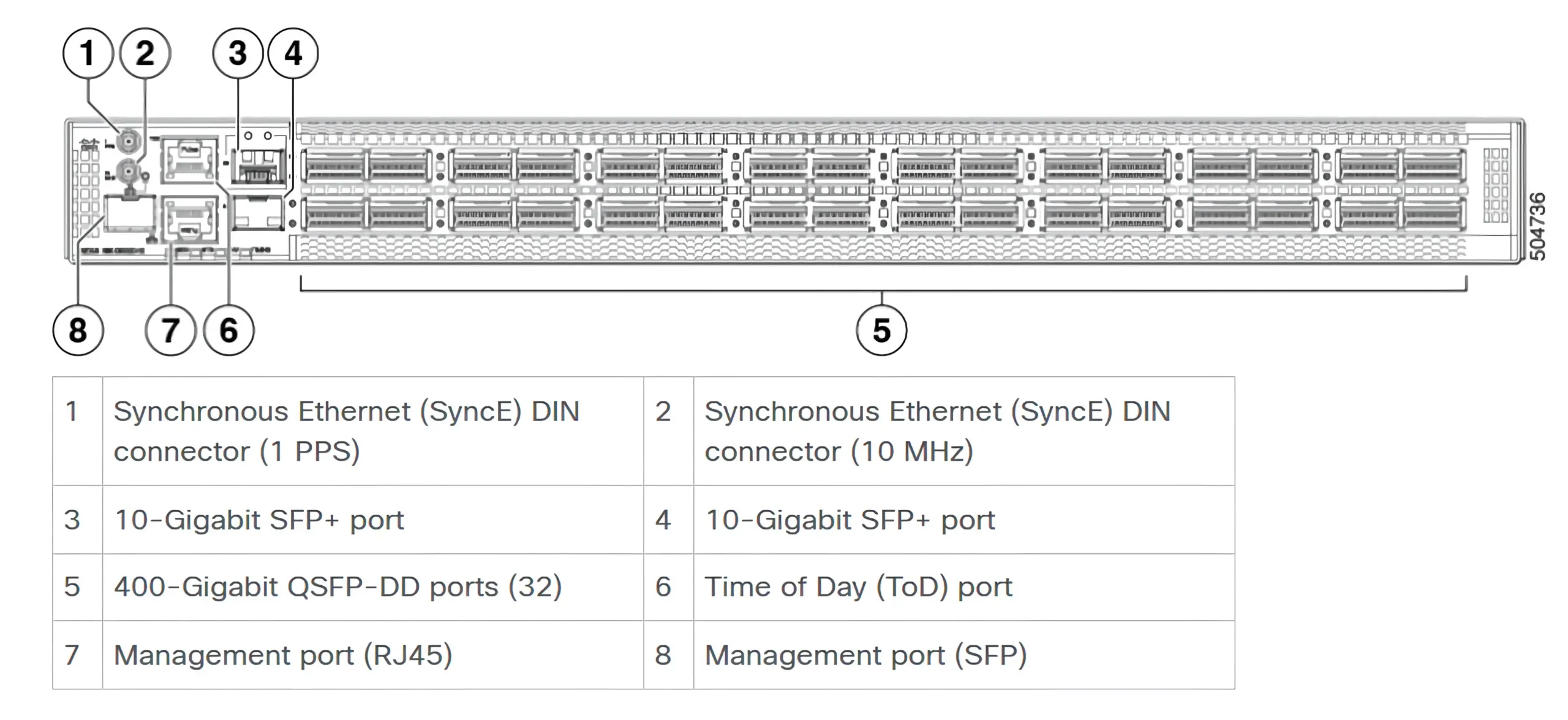

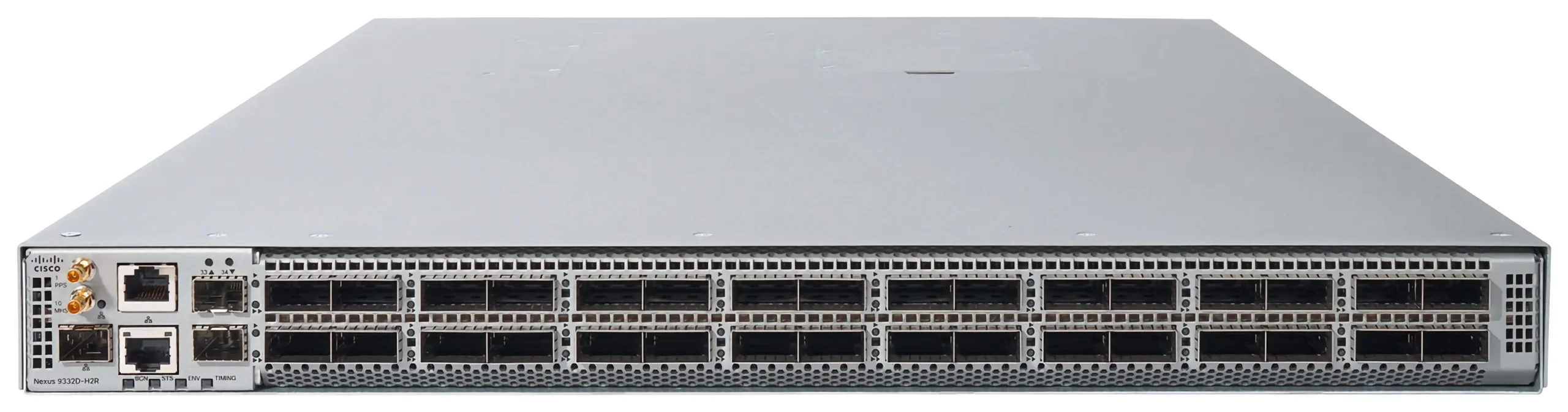

The Cisco Nexus N9K-C9332D-GX2B is a 1RU switch with 32 fixed 400G QSFP-DD ports, two fixed 1/10G SFP+ ports, and a total bandwidth of 25.6 Tbps. The QSFP-DD ports also support 200G, 100G, and 40G, and offer breakout options. The last eight ports, highlighted in green, are capable of wire-rate MACsec encryption.

Quick specification:

• 32-port 400G QSFP-DD ports and 2-port 1/10G SFP+ ports
• Buffer: 120MB
• System memory: 32 GB
• SSD: 128GB

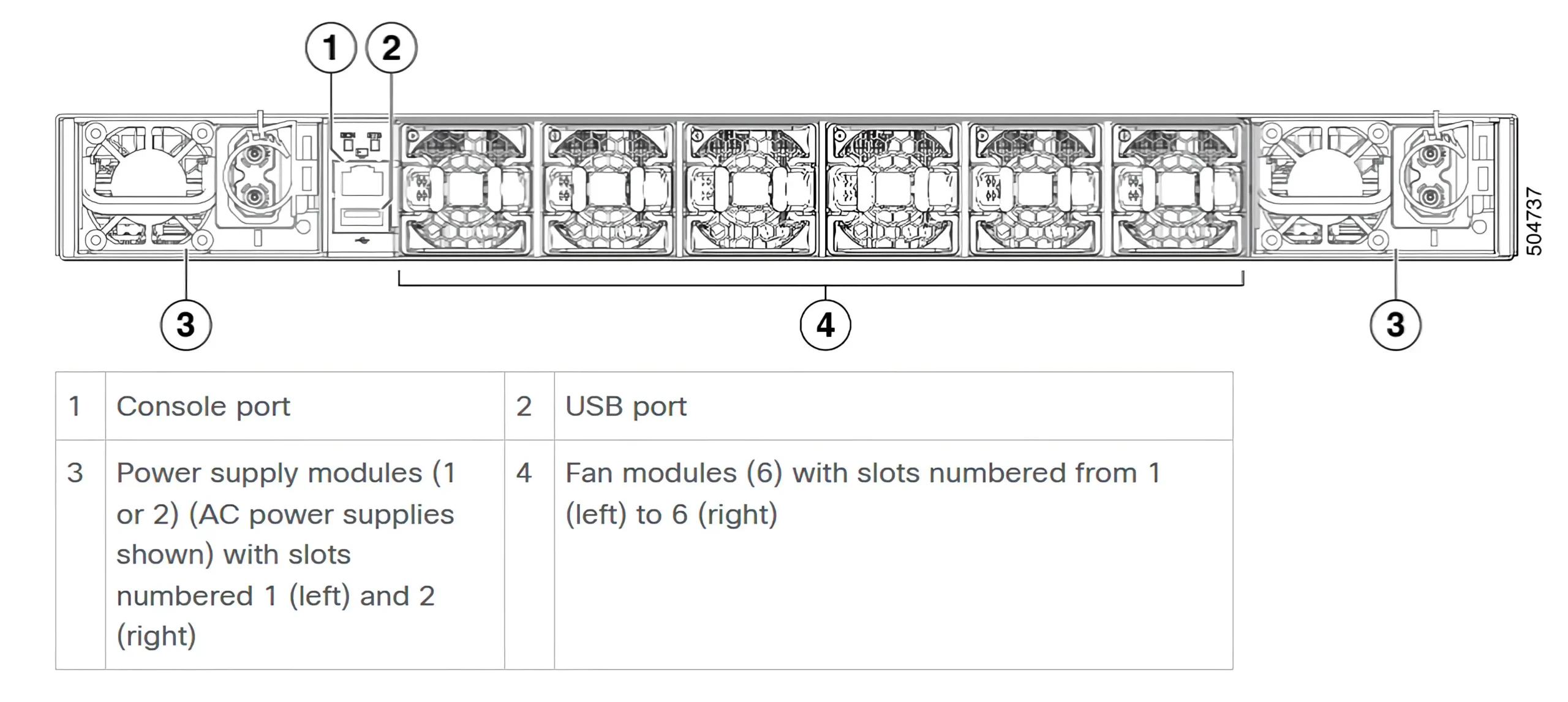

• USB: 1 port
• RS-232 serial console ports: 1
• Management ports: 2 (1 x10/100/1000BASE-T and 1 x 1-Gbps SFP)
• CPU: 4 cores
• Power: 1500W AC
• Input voltage: 100 to 240V AC
• Hot-swappable, 6 fans, 5+1 redundancy
• Frequency: 50 to 60 Hz (AC)
• Efficiency: 90% or greater (20 to 100% load)
• Port-side intake and exhaust
• Typical power: 638 W
• Maximum power: 1442 W
