Cisco Part Number: N9K-C9348GC-FXP is a Cisco Nexus 9300 with 48p 10G BASE-T and 6p 40G/100G QSFP28, MACsec capable
The Cisco Nexus 9300-FX Series is part of the fixed Cisco Nexus 9000 platform, utilizing Cisco Cloud Scale technology. Designed for cost-effective cloud-scale deployments, it supports increased endpoints and cloud services with wire-rate security and telemetry. Built on a modern system architecture, this platform ensures high performance, catering to the evolving needs of highly scalable data centers and growing enterprises.
The Cisco Nexus 9300-FX series switches offer diverse interface options, facilitating a seamless migration from 100-Mbps, 1-Gbps, and 10-Gbps speeds to 25-Gbps at the server, and from 10- and 40-Gbps speeds to 50- and 100-Gbps at the aggregation layer. With large buffers, flexible Layer 2 and Layer 3 scalability, and high performance, these switches provide investment protection, addressing the dynamic requirements of virtualized data centers and automated cloud environments.

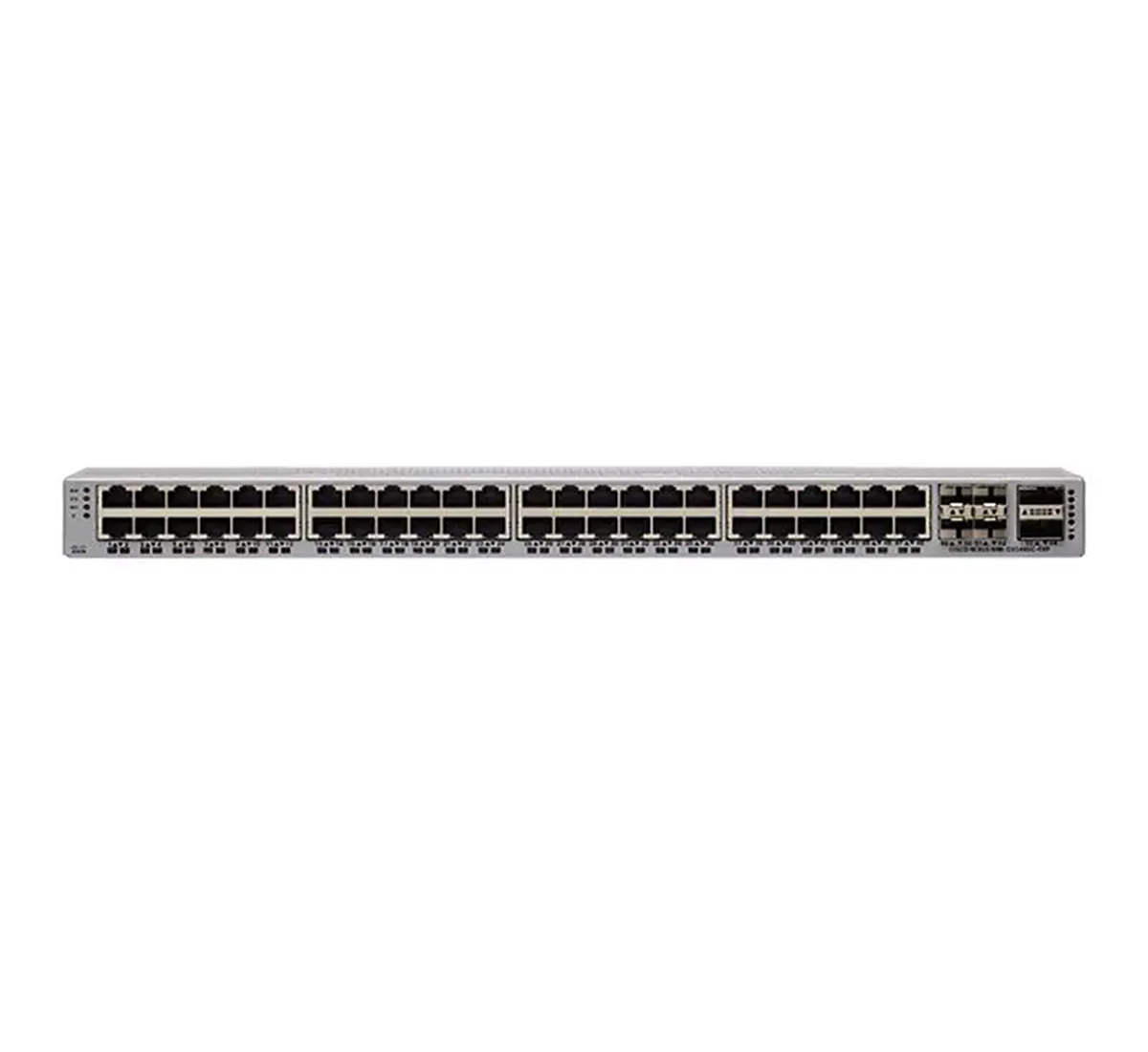

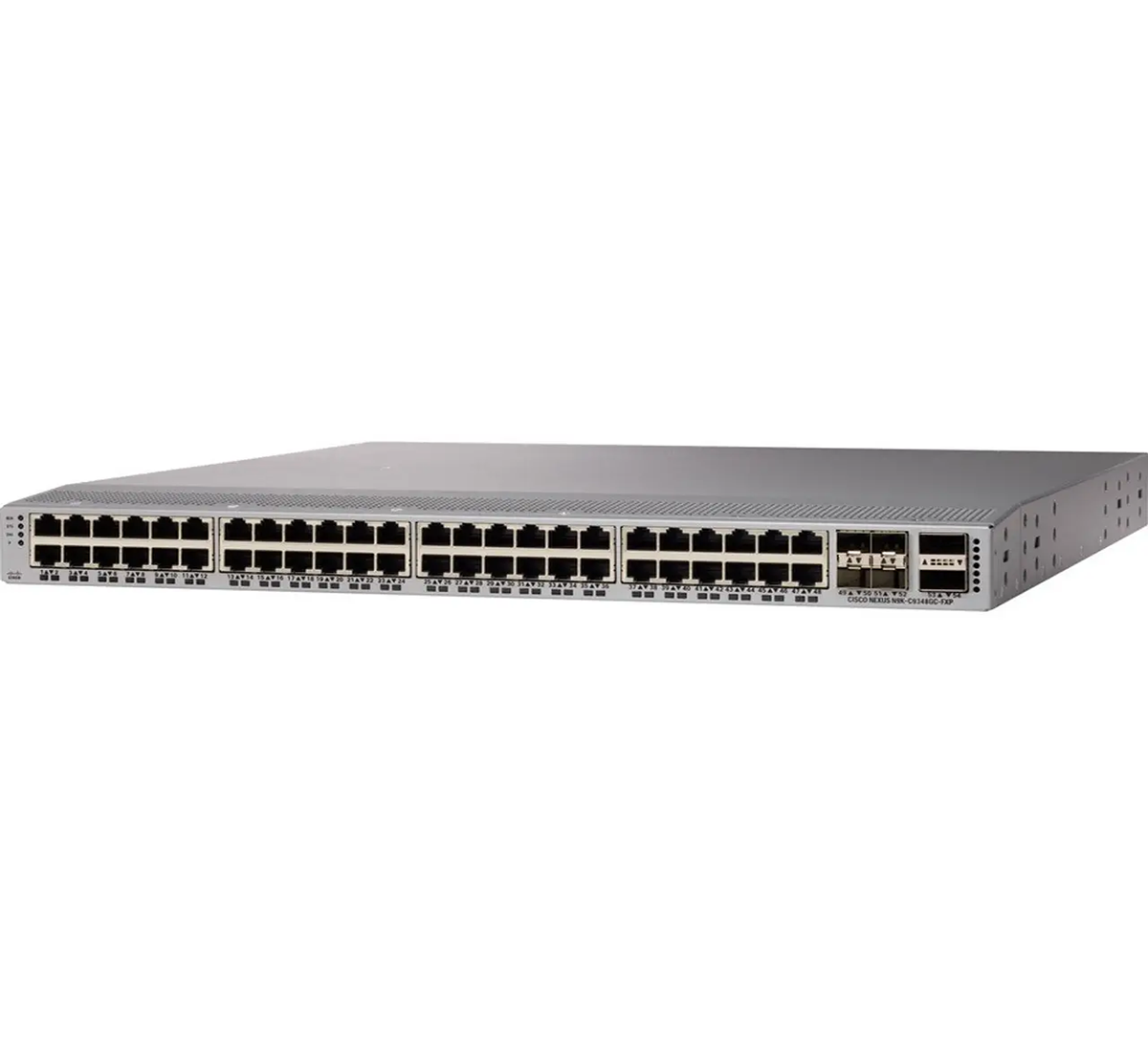

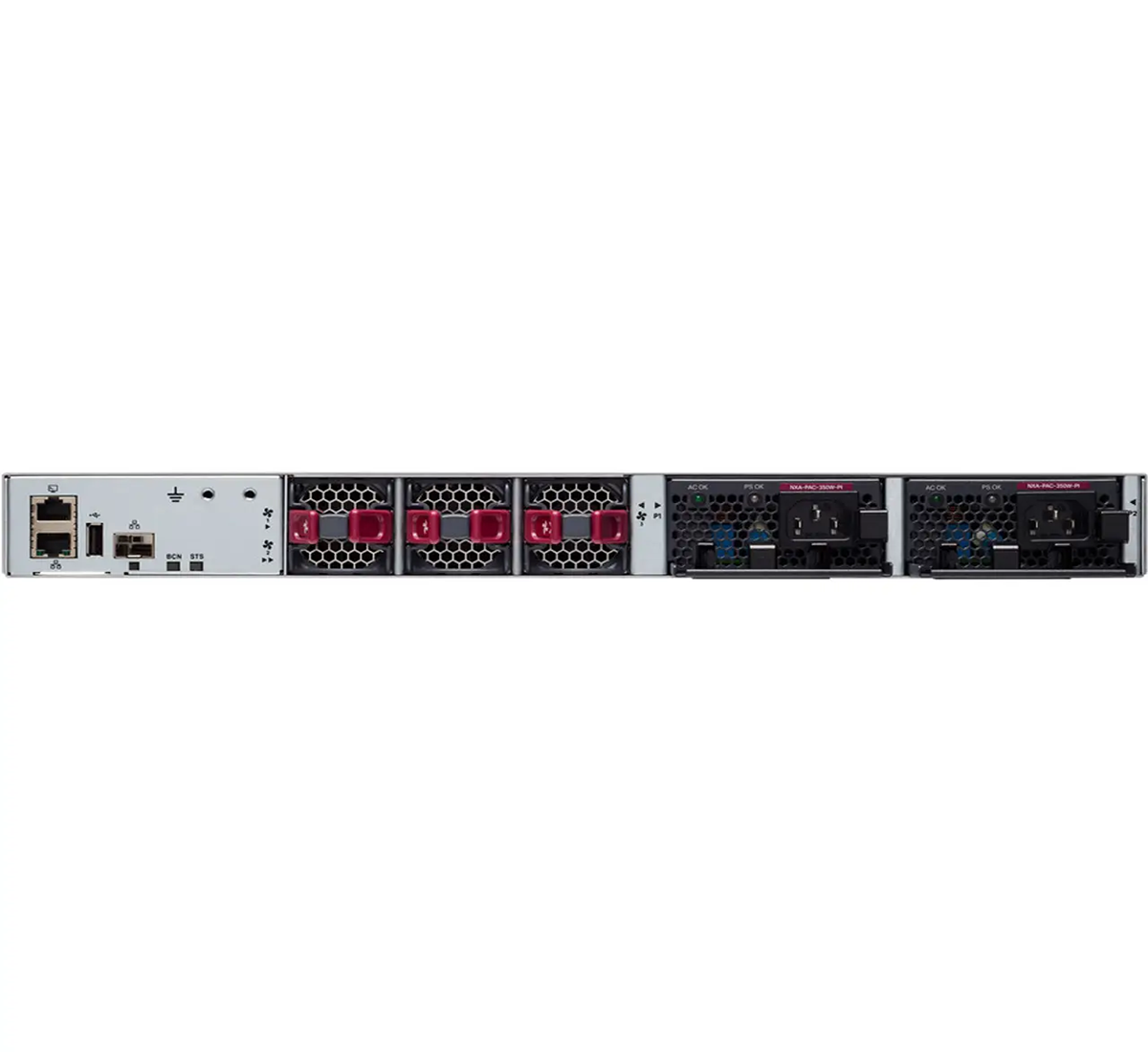

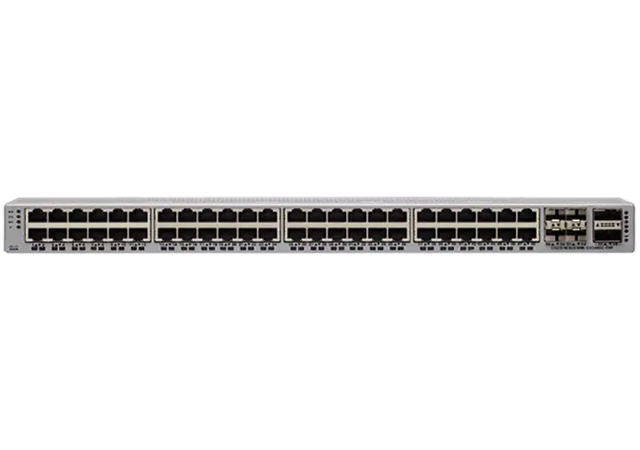

The Cisco Nexus N9K-C9348GC-FXP Switch is a compact 1RU switch with 696 Gbps bandwidth and over 517 mpps. Its 48 1GBASE-T downlink ports can flexibly operate as 100-Mbps or 1-Gbps ports. The 4 SFP28 ports support 1/10/25-Gbps, while the 2 QSFP28 ports can be configured as 40- or 100-Gbps, or a mix of 1-, 10-, 25-, 40-, 50-, and 100-Gbps connections, offering versatile migration options. Perfect for big data users needing a Gigabit Ethernet ToR switch with local switching capabilities.
Cisco Nexus 9300-FX Series Switch specifications:
|
Feature |
Cisco Nexus 93180YC-FX |
Cisco Nexus 93108TC-FX |
Cisco Nexus N9K-C9348GC-FXP |
|---|---|---|---|
|
Ports |
48 x 1/10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports |
48 x 100M/1/10GBASE-T and 6 x 40/100-Gbps QSFP28 ports |
48 x 1-GBASE-T ports, 4 x 1/10/25-Gbps SFP28 ports and 2 x 40/100 QSFP28 ports |
|
Downlink supported speeds |
1/10/25-Gbps Ethernet 16/32-Gbps Fibre Channel |
100-Mbps and 1/10-Gbps speeds |
100-Mbps and 1-Gbps speeds |
|
CPU |
6 cores |
4 cores |
4 cores |
|
System memory |
Up to 32 GB |
24 GB |
24 GB |
|
SSD drive |
128 GB |
128 GB |
128 GB |
|
System buffer |
40 MB |
40 MB |
40 MB |
|
Management ports |
1 RJ-45 port L1 and L2 ports are unused |
2 ports: 1 RJ-45 and 1 SFP+ |
2 ports: 1 RJ-45 and 1 SFP+ |
|
USB ports |
1 |
1 |
1 |
|
RS-232 serial ports |
1 |
1 |
1 |
|
Power supplies (up to 2) |
500W AC, 930W DC, or 1200W HVAC/HVDC |
500W AC, 930W DC, or 1200W HVAC/HVDC |
350W AC, 440W DC |
|
Typical power (AC/DC)* |
260W |
276W |
178W |
