BRAND: Cisco

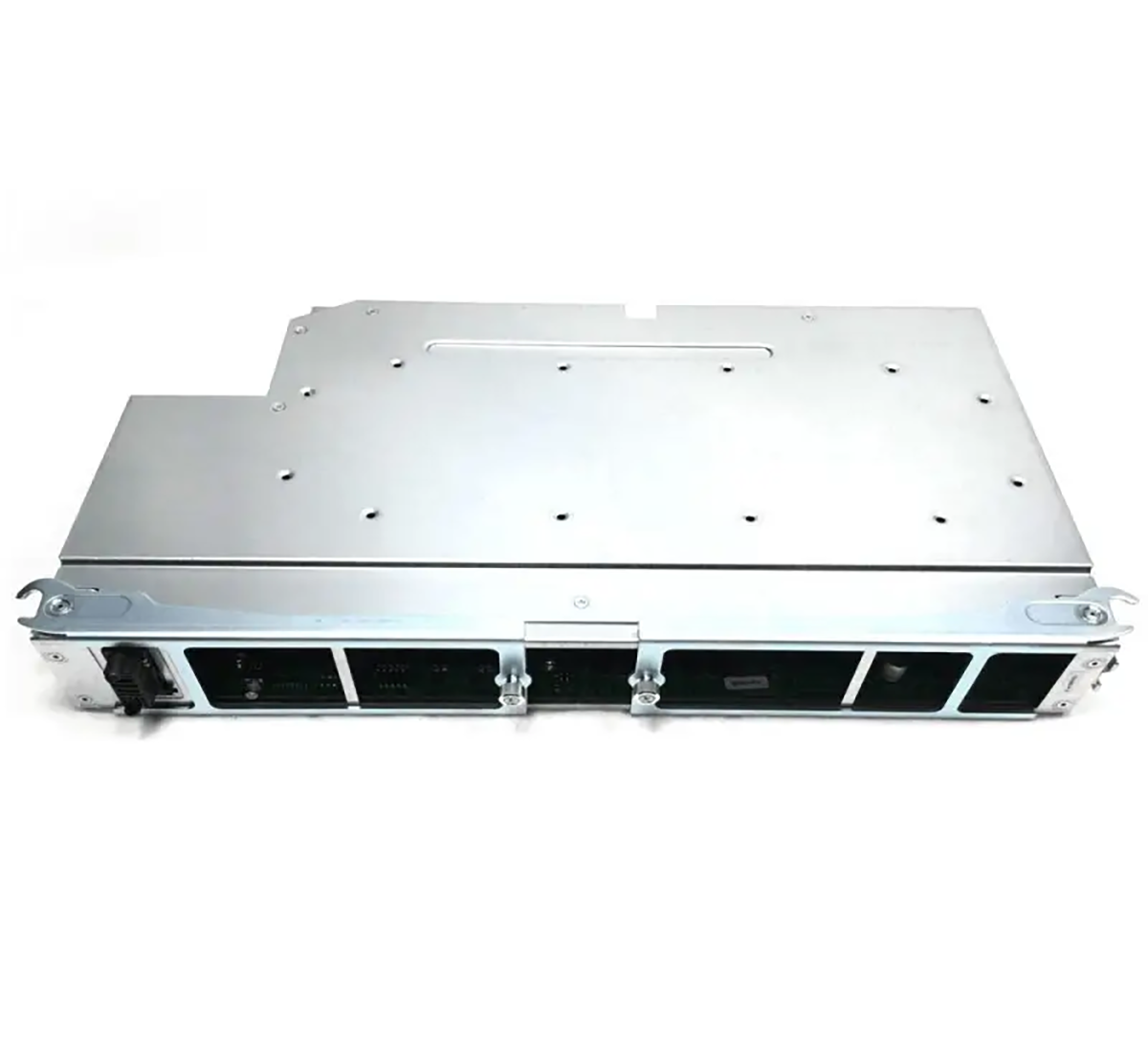

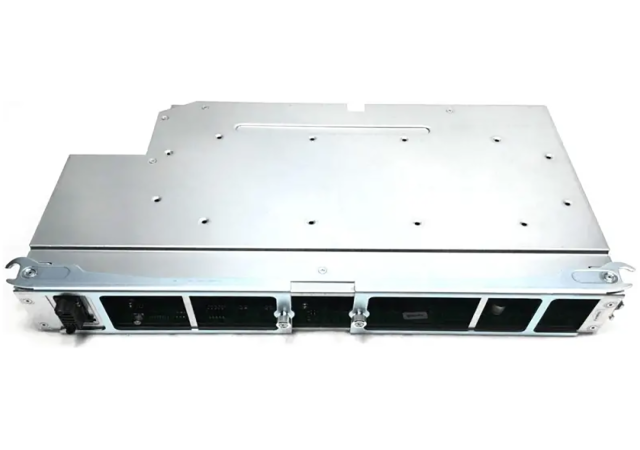

Cisco N9K-C9508-FM-R2= - Fabric Module

MPN: N9K-C9508-FM-R2=
Price on request
OUT OF STOCK
FINANCE AVAILABLE
Paypal Visa Mastercard American Express
Free Technical Support
Can't decide?
Free Technical Support
We can help you decide which hardware is best for you
orders@cloudappliances.co.uk 020 3880 8840 Mon-Fri: 8AM-7PM
Description
Tech Overview

Cisco Part Number: N9K-C9508-FM-R2= is a Fabric Module for Cisco Nexus 9508 R2-Series line cards – Cisco NX-OS only

The Cisco Nexus 9500 R-Series switching platform features two modular chassis:

  • Cisco Nexus 9500 4-slot switch
  • Cisco Nexus 9500 8-slot switch

These chassis accommodate Cisco Nexus 9500 R-Series line cards and fabric modules, providing up to 9.6 Terabits per second (Tbps) per slot, totaling 76.8-Tbps in the 8-slot chassis. Both chassis support line cards with 100-, 40-, 25-, 10-, or 1-Gigabit Ethernet ports. Additionally, the 8-slot chassis supports a line card with 400-Gigabit Ethernet ports.

The Cisco Nexus 9500 platform functions as a Clos fabric, directly linking each line card with rear-mounted fabric modules. Load balancing across all fabric modules ensures optimal bandwidth distribution, enhancing system reliability. In case of fabric module loss, the switch remains operational, albeit at reduced capacity, thanks to remaining modules. Some line cards can connect to 1 or 2 extra fabric modules, offering N+1 or N+2 redundancy. All Cisco Nexus 9500 R-Series line cards feature deep buffers, and certain ones support large tables, accommodating diverse use cases.

Cisco Nexus 9500 R-Series line cards and fabric module support matrix:

N9K-C9508-FM-R2=

N9K-C9508-FM-R

N9K-C9504-FM-R

X9624D-R2

Supported

NA

NA

X9636C-RX

Supported

Supported

Supported

X9636C-R

Supported

Supported

Supported

X9636Q-R

Supported

Supported

Supported

X96136YC-R

Supported

Supported

Supported
