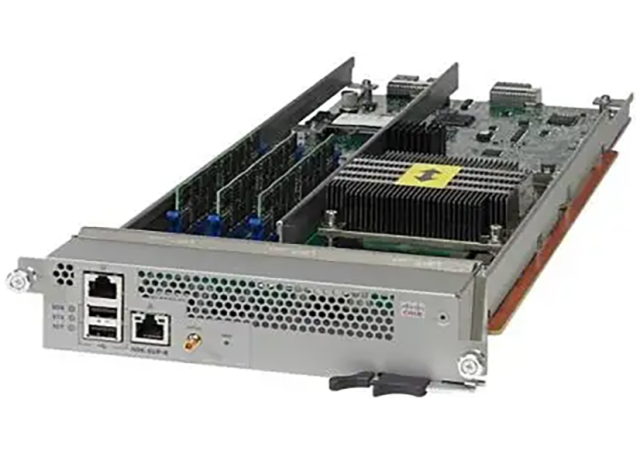

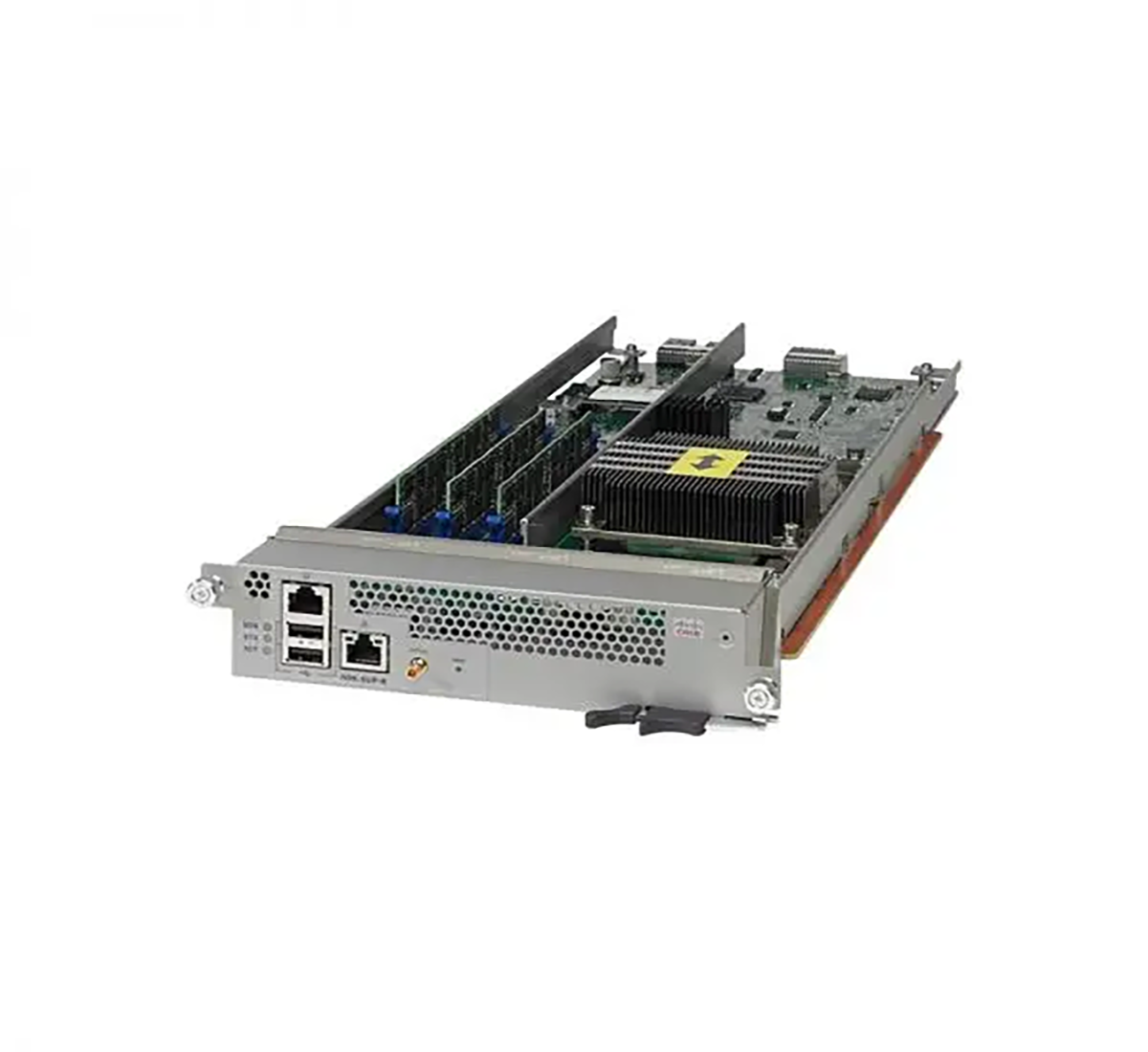

Cisco Part Number: N9K-SUP-B+ is a Cisco Nexus 9500 6-Core/12-Thread Supervisor
The Cisco Nexus 9000 Series Switches operate in two distinct modes: Cisco Application Centric Infrastructure (Cisco ACI™) and Cisco NX-OS. In Cisco ACI mode, these switches offer a comprehensive, fully automated, policy-based architecture designed for the creation and management of data center fabrics. Conversely, in Cisco NX-OS mode, these switches provide the flexibility to leverage foundational layer 2/3 technologies, along with contemporary features like VXLAN. This mode also supports a Border Gateway Protocol‒Ethernet VPN (BGP-EVPN) control plane, Segment routing, Multiprotocol Label Switching (MPLS), and automation facilitated through NX-APIs.
The Cisco Nexus 9000 Series Switches encompass the Nexus 9500 Series modular switches and the Nexus 9200/9300 Series fixed switches.

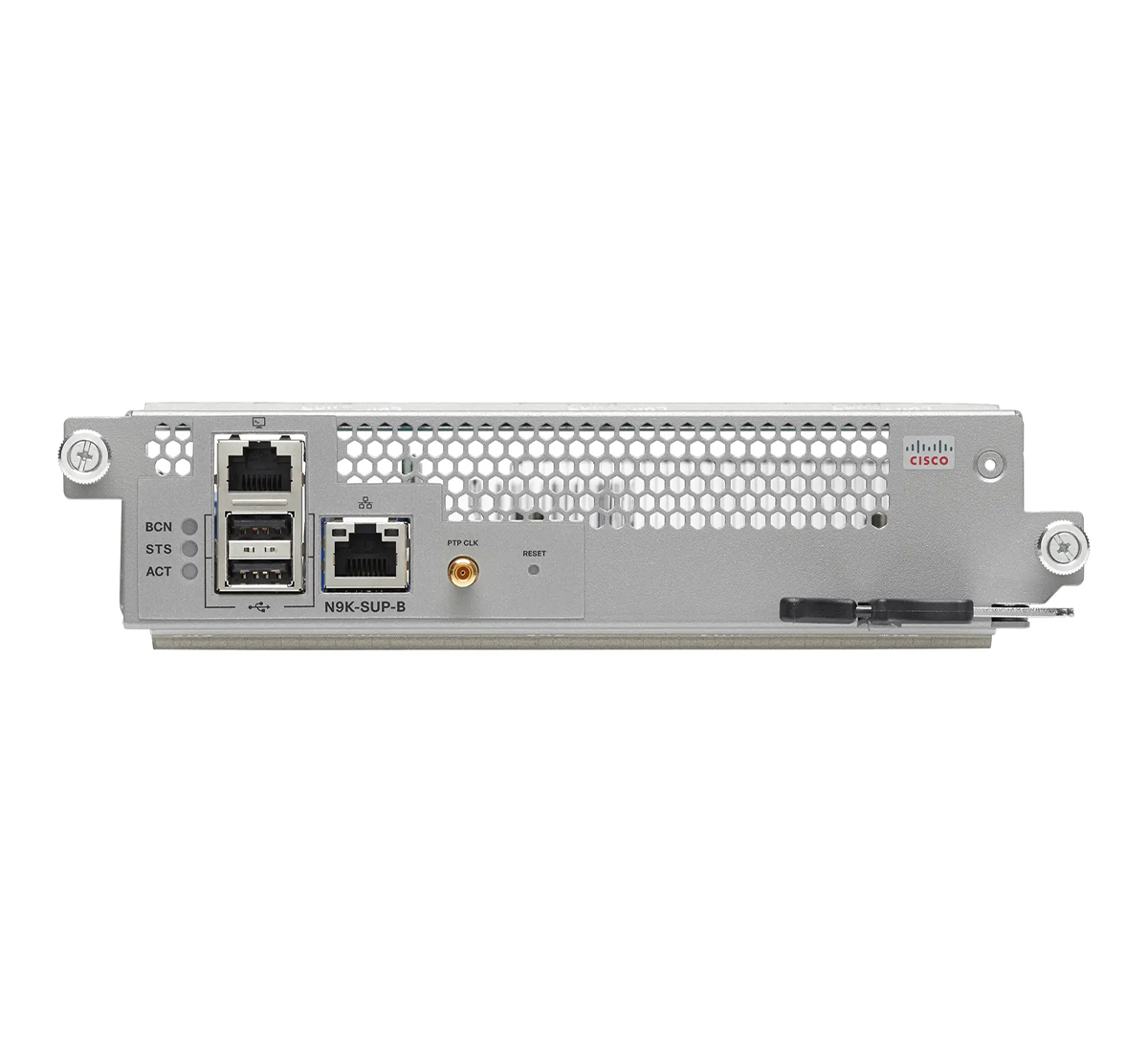

Switch operations are overseen by a set of redundant supervisor modules employing an active-standby model with state synchronization. These supervisors are designed to accept an external clock and facilitate management through various ports, including two USB ports, a serial port, and a 10/100/1000-Mbps Ethernet port. Compatibility is assured for both Cisco ACI and NX-OS deployments across all supervisor variants. It is essential for redundant supervisors within a chassis to be of the same type for optimal performance.
Cisco Nexus 9500 series supervisor modules specifications
| N9K-SUP-A | N9K-SUP-A+ | N9K-SUP-B | N9K-SUP-B+ | |
|---|---|---|---|---|
| Processor | 4 core, 4 thread 1.8GHz x86 | 4 core, 8 thread 1.8GHz x86 | 6 core, 12 thread 2.2GHz x86 | 6 core, 12 thread 1.9GHz X86 |
| DRAM | 16GB | 16GB | 24GB | 32GB |
| SSD | 64GB | 64GB | 256GB | 256GB |
| Weight | 4.84 lb (2.2 kg) | 5.2 lb (2.37 kg) | 6.00 lb (2.72 kg) | 5.3 lb (2.39 kg) |
| Typical power | 69 W | 69 W | 75 W | 75 W |
| Maximum power | 80 W | 80 W | 80 W | 90 W |
| MTBF hours | 312,070 | 414,240 | 292,110 | 421,040 |
| Hot swappable | Yes | |||
| Airflow | Port-side intake | |||
