Cisco Nexus N9K-X96136YC-R= - Switch Line Card

Brand: Cisco MPN: N9K-X96136YC-R=
Available on request
Nexus 9500 R-Series Linecard, 16x10G + 32x10/25G + 4x100G

£26,147.00

£31,376.40 Incl VAT

Need Help Ordering?

Call 020 3880 8840

Add to Quote
Description
Tech overview

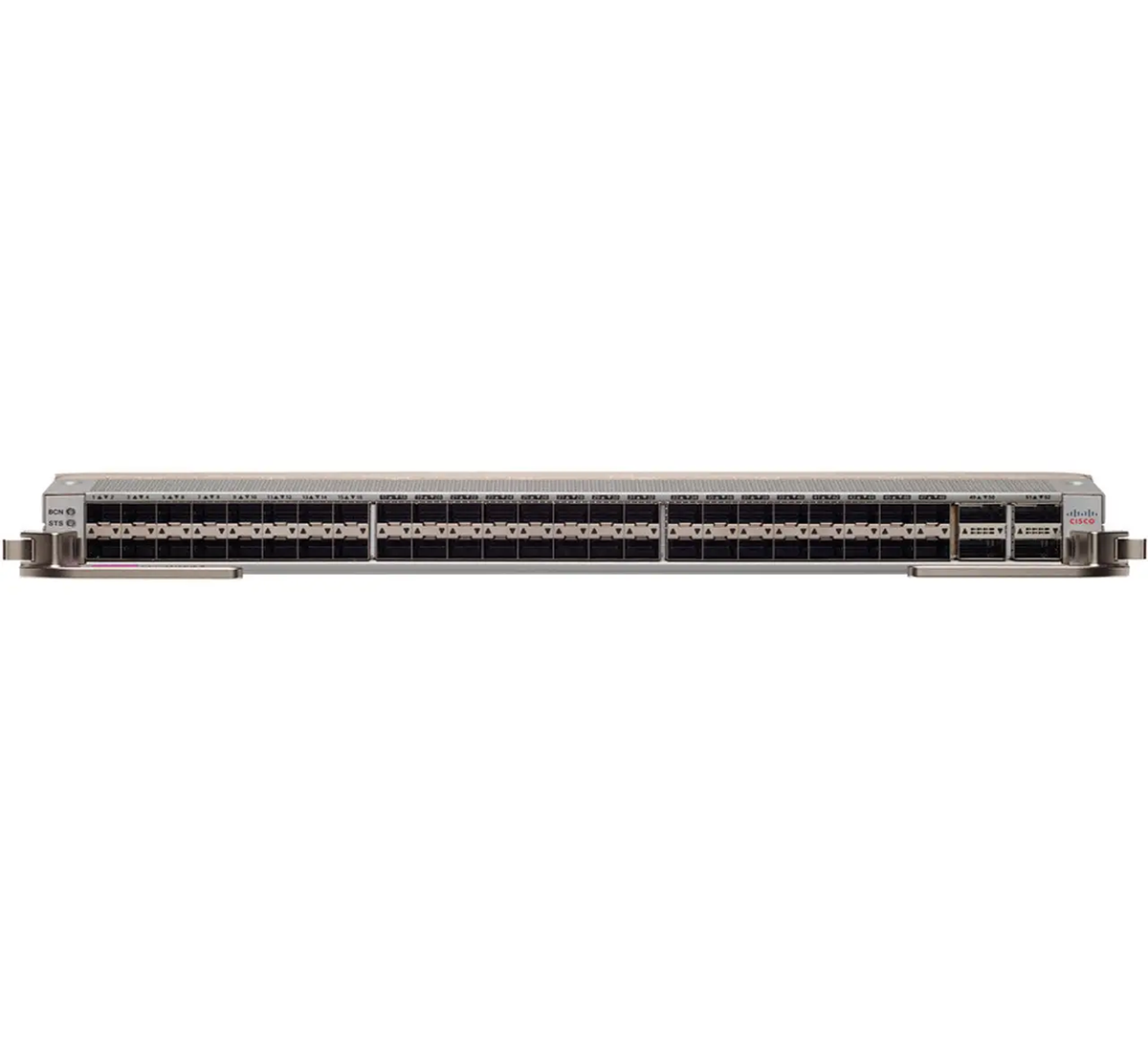

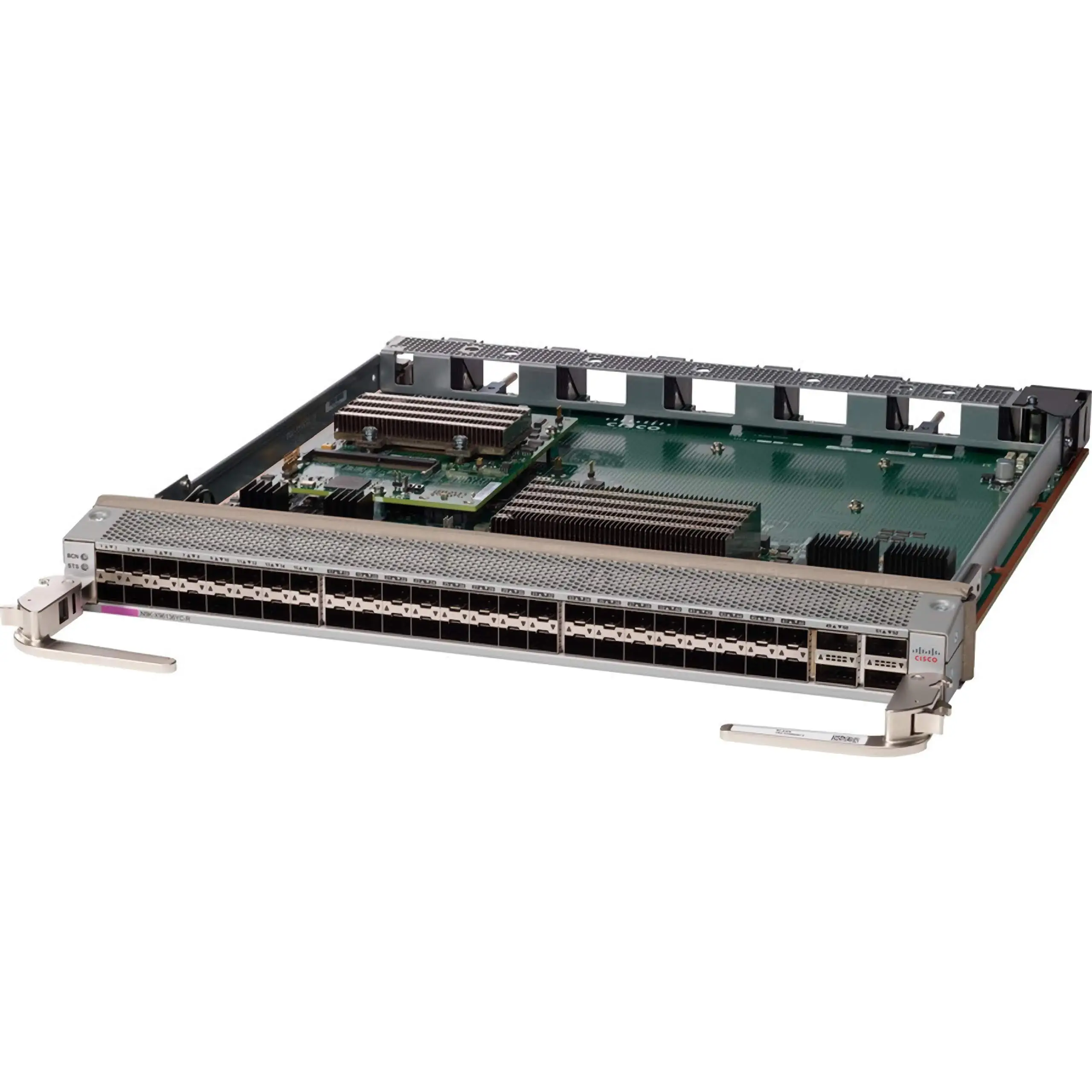

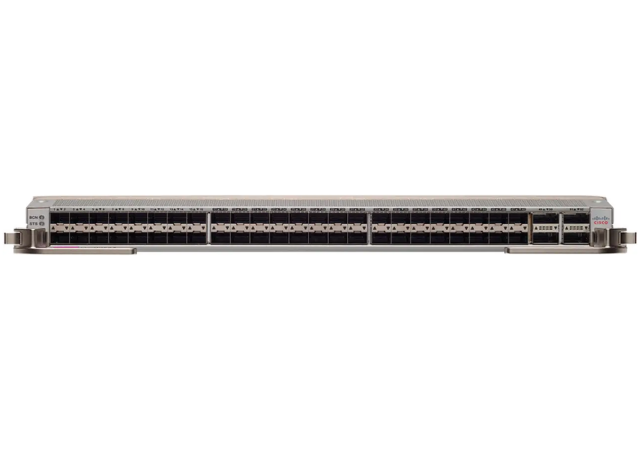

Cisco Part Number: N9K-X96136YC-R= is a Cisco Nexus 32-port 1/10/25, 16-port 1/10, and 4-port 40/100 Gigabit Ethernet SFP/QSFP line card with MACsec (spare)

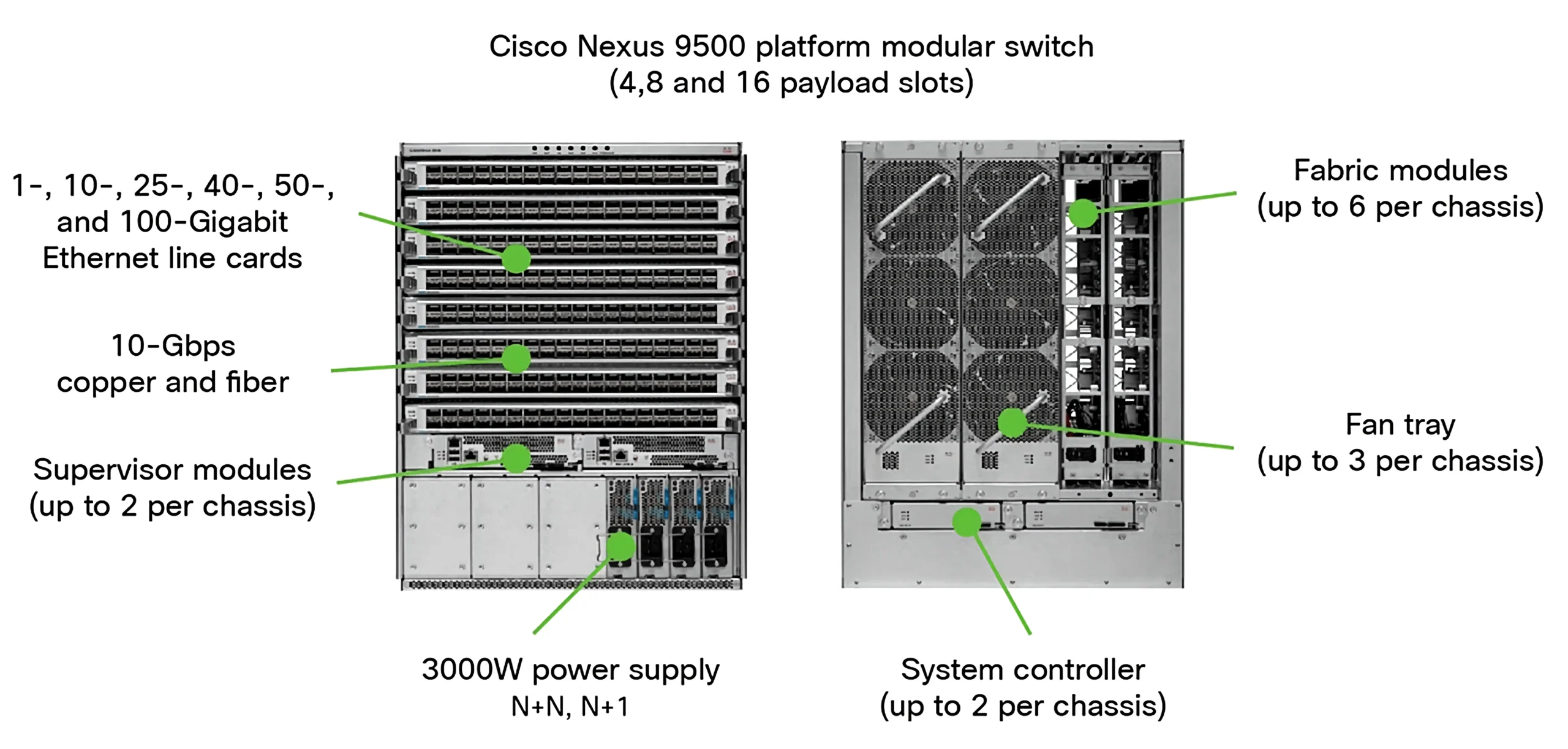

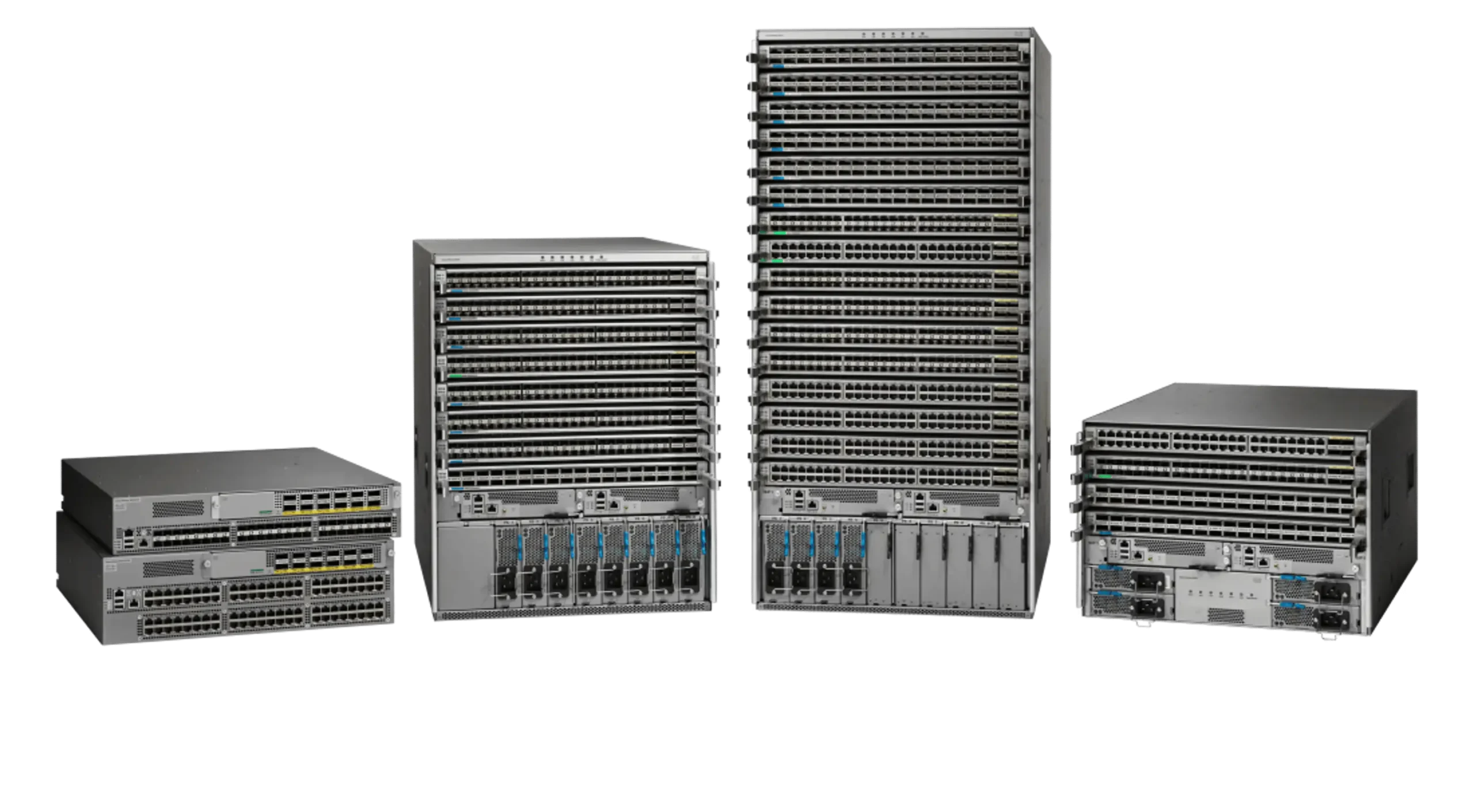

The Cisco Nexus 9500 R-Series switching platform features two modular chassis:

  • Cisco Nexus 9500 4-slot switch
  • Cisco Nexus 9500 8-slot switch

These chassis accommodate Cisco Nexus 9500 R-Series line cards and fabric modules, providing up to 9.6 Terabits per second (Tbps) per slot, totaling 76.8-Tbps in the 8-slot chassis. Both chassis support line cards with 100-, 40-, 25-, 10-, or 1-Gigabit Ethernet ports. Additionally, the 8-slot chassis supports a line card with 400-Gigabit Ethernet ports.

The Cisco Nexus 9500 platform functions as a Clos fabric, directly linking each line card with rear-mounted fabric modules. Load balancing across all fabric modules ensures optimal bandwidth distribution, enhancing system reliability. In case of fabric module loss, the switch remains operational, albeit at reduced capacity, thanks to remaining modules. Some line cards can connect to 1 or 2 extra fabric modules, offering N+1 or N+2 redundancy. All Cisco Nexus 9500 R-Series line cards including N9K-X96136YC-R= feature deep buffers, and certain ones support large tables, accommodating diverse use cases.

Cisco Nexus 9500 R-Series line cards: Product and hardware scale specifications:

Feature/line card

X9624D-R2

X9636C-RX

X9636C-R

X9636Q-R

N9K-X96136YC-R=

Performance

9.6 Tbps

3.6 Tbps

3.6 Tbps

1.4 Tbps

1.2 Tbps

Fabric modules required for maximum bandwidth – R2 Series Fabric Module

6

6

6

6

6

Fabric modules required for maximum bandwidth –

R Series Fabric Module

6

6

5

4

6

Fabric modules required for N+1 redundancy – R Series Fabric Module

N/A

N/A

6 (N+1)

5 (N+1) or

6 (N+2)

N/A

Supervisor Module

N9K-SUP-B+

N9K-SUP-B, N9K-SUP-B+

N9K-SUP-B, N9K-SUP-B+

N9K-SUP-B, N9K-SUP-B+

N9K-SUP-B, N9K-SUP-B+

Processor and DRAM

6-core 1.9 GHz x64

16 GB DDR4

4-core 2.4 GHz x64

32 GB DDR4

8-core 2.4 GHz x64

16 GB DDR3

8-core 2.4 GHz x64

16 GB DDR3

4-core 2.4-GHz x64

8 GB DDR4

Packet buffer

16 GB

16 GB

24 GB

12 GB

4 GB

Maximum number of IPv4 routes

750,000

2,000,000

750,000

750,000

750,000

Maximum number of MAC address entries

750,000

750,000

750,000

750,000

750,000

Number of multicast routes

250,000

250,000

250,000

250,000

250,000

Maximum number of VLANs

4096

4096

4096

4096

4096

Maximum number of links in a port channel

32

32

32

32

32

Maximum number of equal-cost multipatching (ECMP) routes

256

256

256

256

256

Maximum number of port channels

1000

1000

1000

1000

1000

Number of active Cisco Switched Port Analyzer (SPAN) sessions

32

32

32

32

32
