Cisco Part Number: QSFP-100G-FR-S= is a Cisco 100GBASE-FR QSFP Transceiver, 2km over SMF (Spare)
The range of Cisco 100GBASE Quad Small Form-Factor Pluggable (QSFP) modules provides customers with a diverse selection of high-density and energy-efficient options for 100 Gigabit Ethernet connections. These modules cater to various needs, including data center networks, high-performance computing, enterprise core and distribution layers, as well as service provider applications. Representing our cutting-edge technology, the QSFP-100G modules stand as the latest evolution in 100G transceiver solutions, packaged within the compact QSFP form factor.
Cisco QSFP modules offer a range of features and benefits tailored to meet high-speed networking demands:

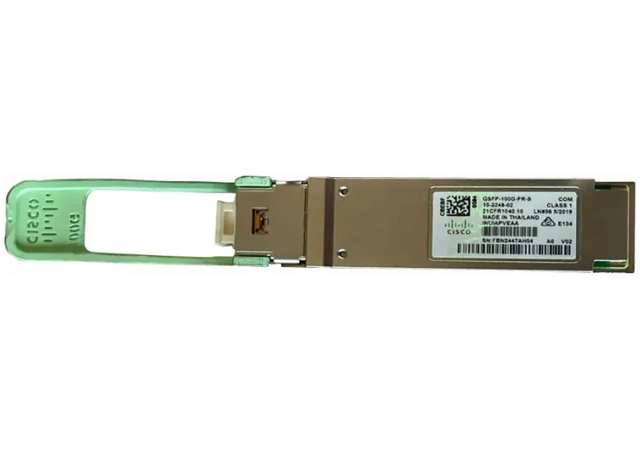

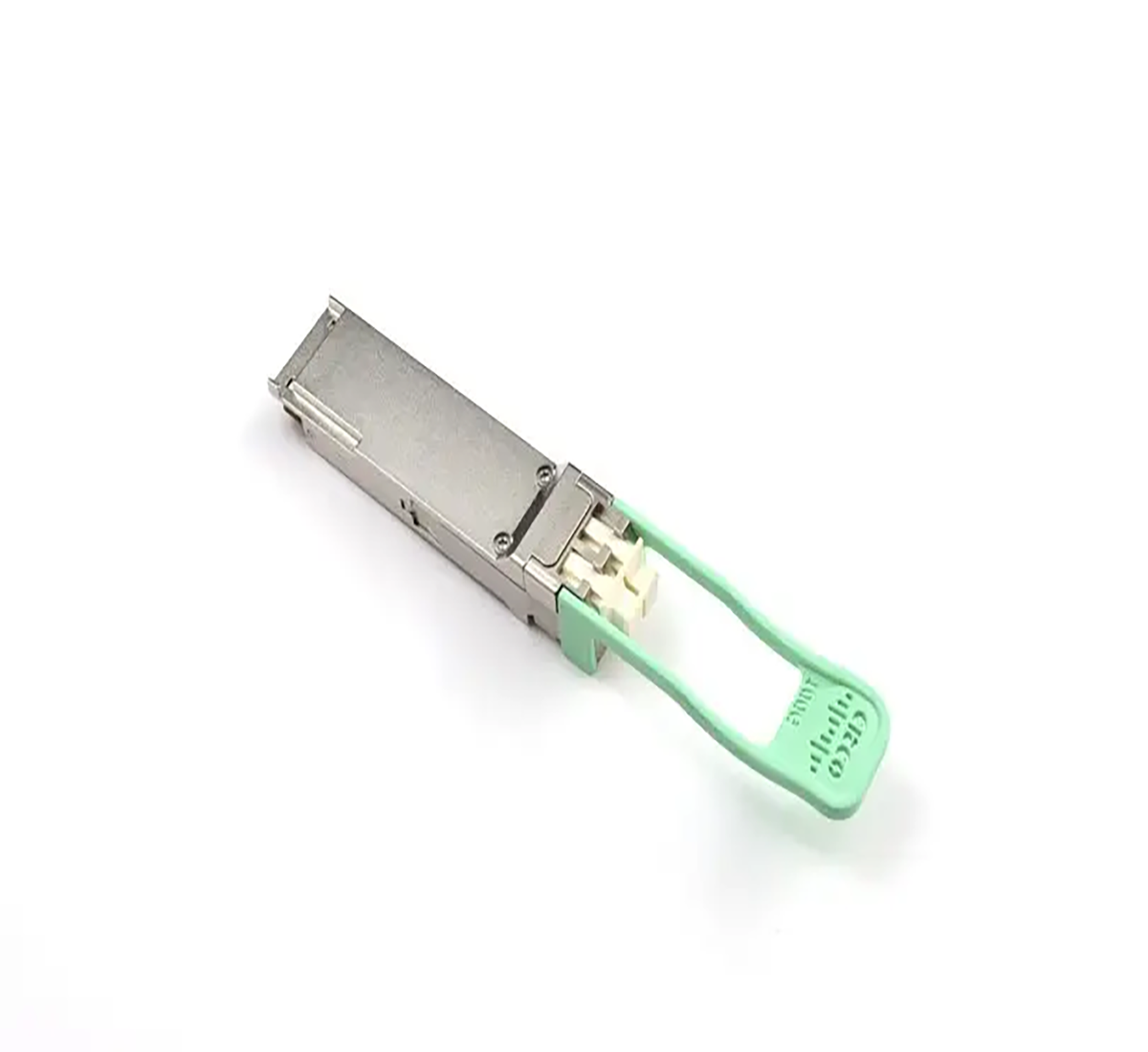

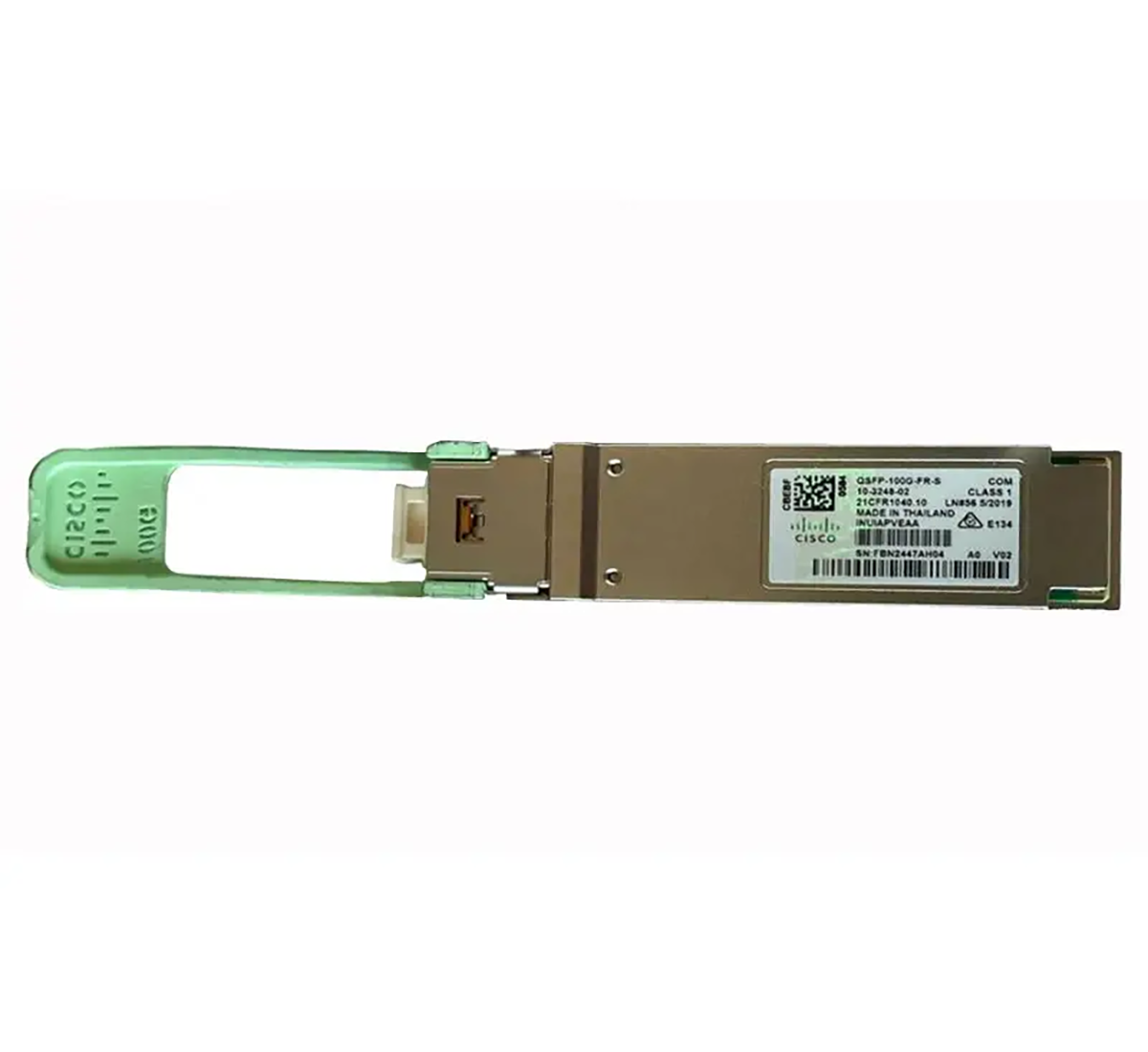

Cisco QSFP-100G-FR-S
The Cisco QSFP-100G-FR-S Module supports link lengths of up to 2 km over a standard pair of G.652 Single-Mode Fiber (SMF) with duplex LC connectors. The 100 Gigabit Ethernet signal is carried over a single wavelength using onboard PAM4 modulation and FEC. QSFP-100G-FR-S can also be used in applications meant for IEEE 100GBASE-DR, such as interoperability with IEEE 400GBASE-DR4 via fiber break-out cables.
Brand | Cisco |
---|---|
Product type | SFP Module |
Connector Type | LC |
Nominal Wavelength (nm) | 1310 |
Cable Type | SMF |
Core Size (Microns) | G.652 |
Modal Bandwidth | N/A |
Cable Distance | 2km |
Pull Tab Color | Green |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 70 °C |
Weight | 100 g |
Warranty | Five-year limited HW warranty |
