Cisco QSFP-40/100-SRBD= - QSFP Transceiver

The range of Cisco 100GBASE Quad Small Form-Factor Pluggable (QSFP) modules provides customers with a diverse selection of high-density and energy-efficient options for 100 Gigabit Ethernet connections. These modules cater to various needs, including data center networks, high-performance computing, enterprise core and distribution layers, as well as service provider applications. Representing our cutting-edge technology, the QSFP-100G modules stand as the latest evolution in 100G transceiver solutions, packaged within the compact QSFP form factor.

Cisco QSFP modules offer a range of features and benefits tailored to meet high-speed networking demands:

• Hot-swappable Design: These modules are designed to be hot-swappable, facilitating seamless installation and removal without disrupting network operations. Simply plug them into a 100G Gigabit Ethernet Cisco QSFP port, ensuring efficient and hassle-free deployment.
• Interoperability: Cisco QSFP modules are interoperable with other IEEE-compliant 100GBASE interfaces where applicable. This compatibility ensures versatility and ease of integration within diverse networking environments.
• Certified Performance: Rigorously certified and tested on Cisco QSFP-100G ports, these modules guarantee superior performance, quality, and reliability. This rigorous testing process ensures consistent and dependable networking capabilities.
• High-Speed Connectivity: Equipped with a high-speed electrical interface compliant to IEEE 802.3bm standards, Cisco QSFP modules provide reliable connectivity for demanding networking applications. This compliance ensures optimal performance and compatibility with industry standards, meeting the requirements of modern networking infrastructure.

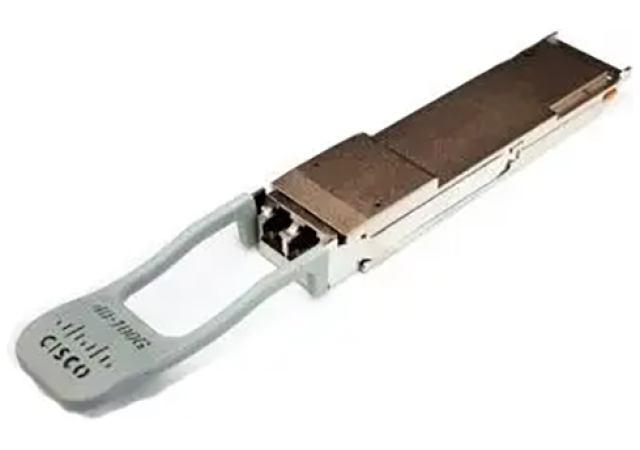

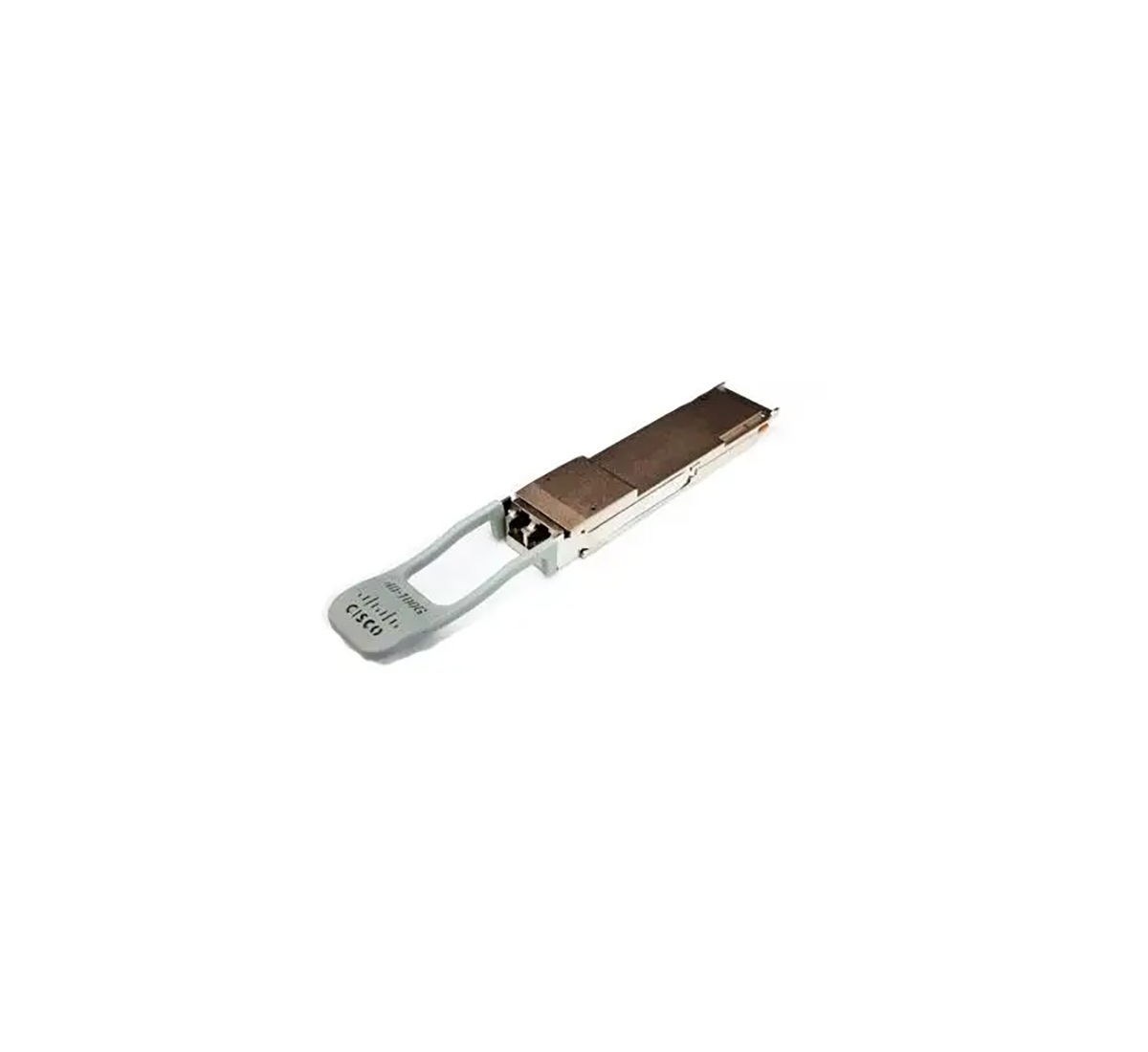

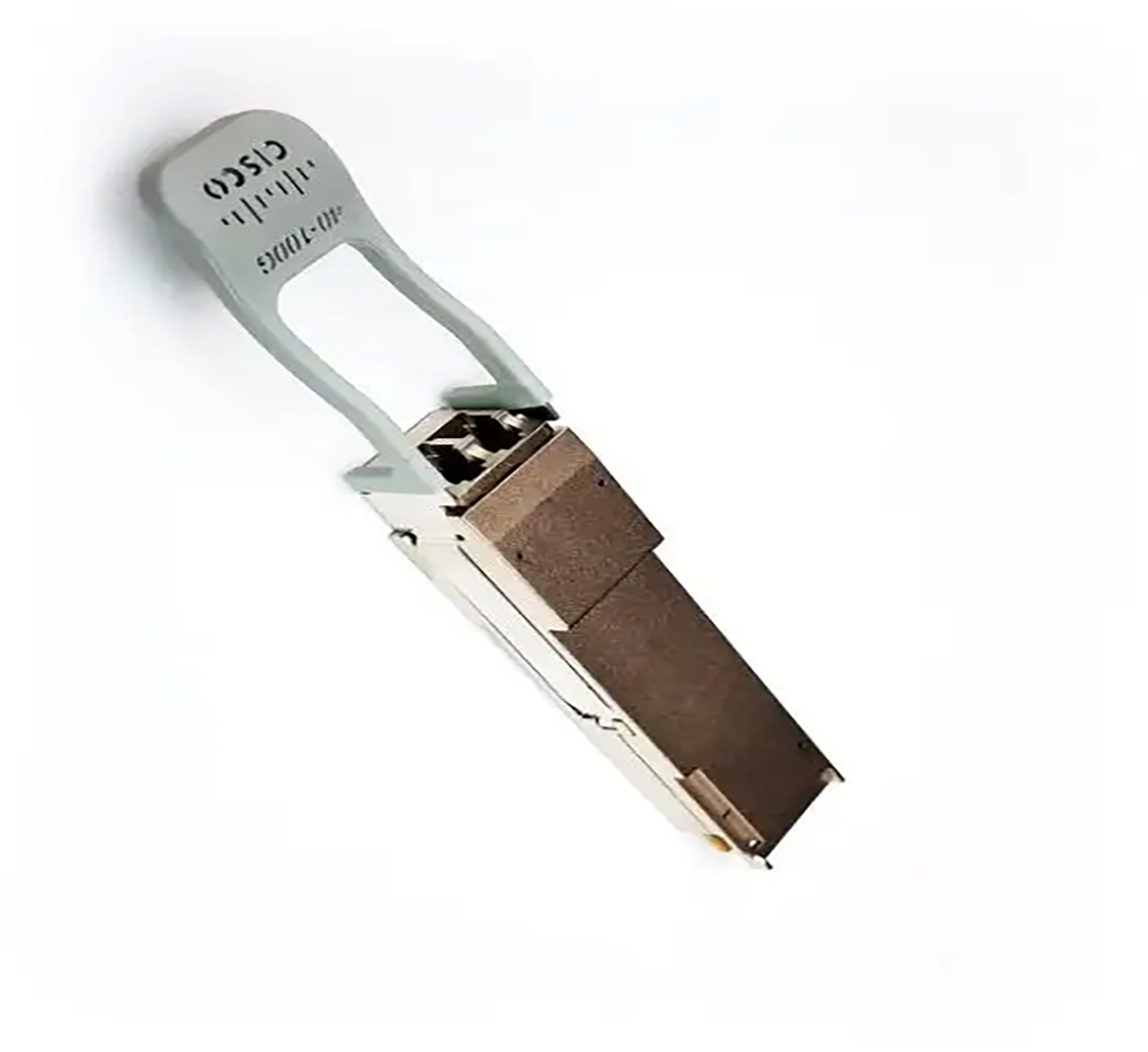

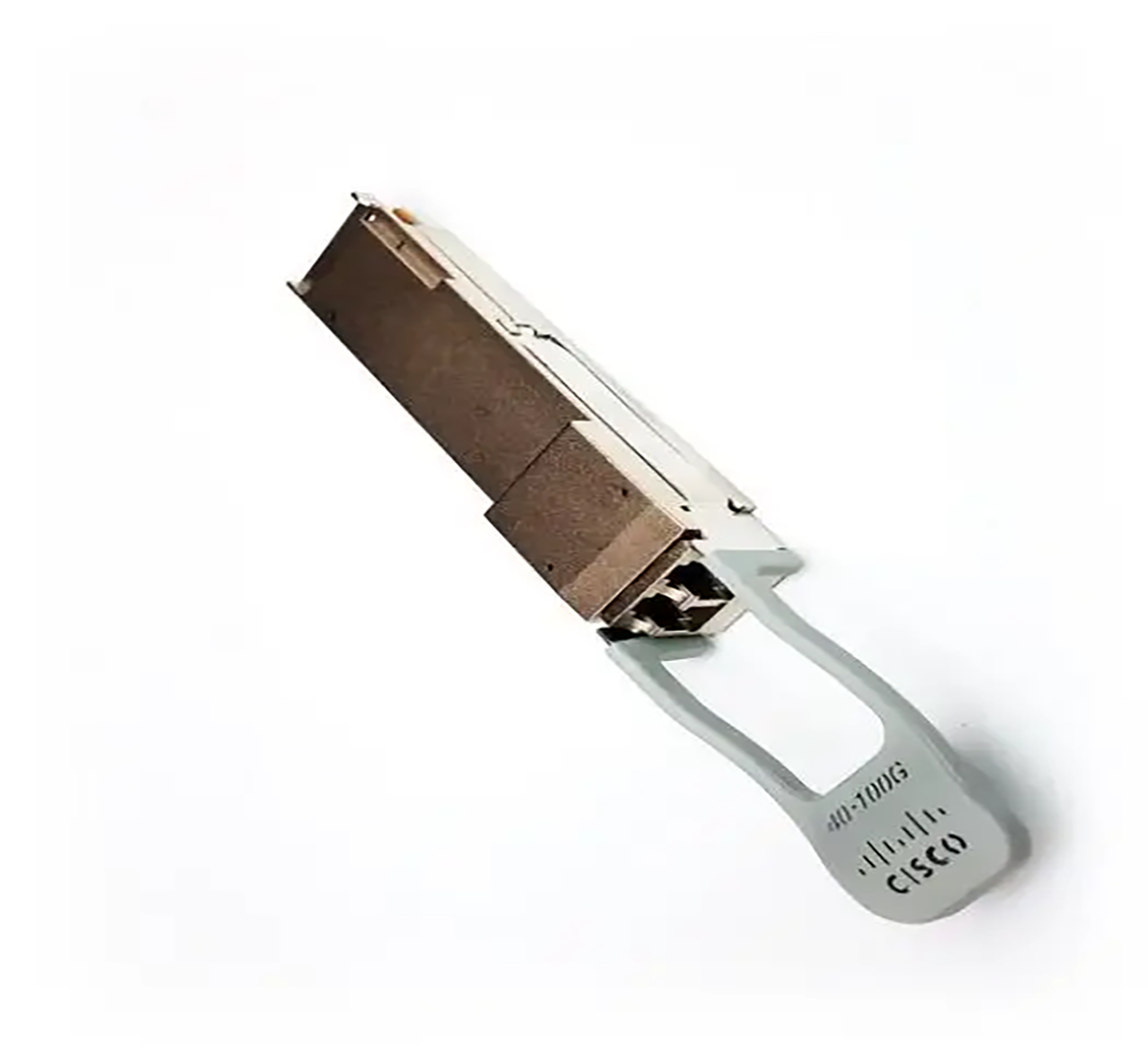

Cisco QSFP-40/100-SRBD=

The Cisco QSFP 40/100 Gb dual-rate Bi-Directional (BiDi) transceiver is a pluggable optical transceiver with a duplex LC connector interface for short-reach data communication and interconnect applications using Multi-Mode Fiber (MMF). It offers customers a compelling solution that enables reuse of their existing 10 Gb duplex MMF infrastructure for migration to either 40 or 100 Gigabit Ethernet connectivity.

In 40-Gbps mode, the Cisco QSFP 40/100-Gbps BiDi transceiver supports link lengths of 100 and 150 meters on laser-optimized OM3 and OM4 multimode fibers, respectively. In 100-Gbps mode, it supports 70 and 100 meters on OM3 and OM4, respectively.

Each Cisco QSFP 40/100-Gbps BiDi transceiver consists of two transmit and receive channels in the 832-918 nanometer wavelength range, enabling an aggregated 40 or 100-Gbps link over a two-strand multimode fiber connection.
