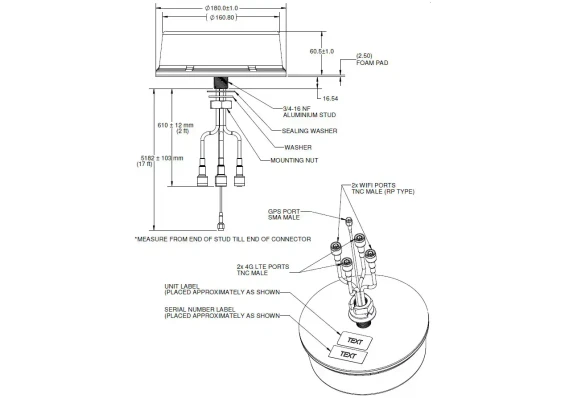

Cisco Part Number: ANT-5-4G2WL2G1-O is a Cisco Cellular and GPS 3-in-1 Vehicle Mount and Fixed Infrastructure Antenna
The antenna is a five port antenna with two elements designed to cover the 698-960, 1448-1511and 1710-2700 MHz cellular bands, two elements designed to cover the 2.4-2.5 and 4.9-5.85 GHz WLAN bands and one GPS element. The antenna can be mounted on the roof of a vehicle or fixed structure. The antenna meets or exceeds a variety of environmental ruggedization specifications for transportation applications.
The antenna features:
Five antenna elements within one radome: two cellular, two WLAN and one GPS
Outdoor and transportation ready
Roof mount installation
Dual cellular elements supporting 698-960, 1448-1511 and 1710-2700 MHz
Omnidirectional, vertically polarized MIMO
Integrated 2 foot cables with TNC male connectors
LTE elements are interchangeable, either one can be connected to Main or Aux.
Dual WLAN elements supporting 2400-2500 and 4900-5875 MHz
Omnidirectional, vertically polarized, 2x2 MIMO
WiFi elements are interchangeable.
Integrated 2 foot cables with RP-TNC plug connectors
Active GPS element has integrated 17 foot cable with SMA male connector
