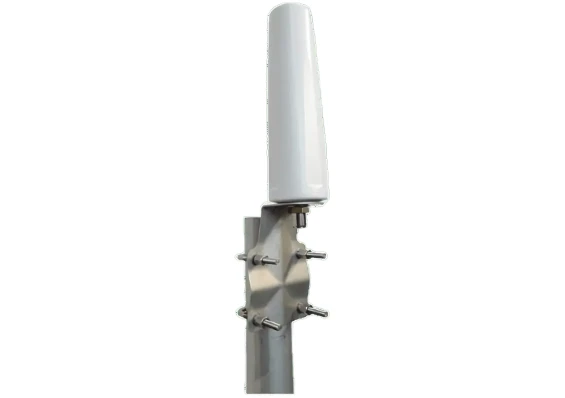

Cisco Part Number: ANT-5G-OMNI-OUT-N is a Cisco 4G (LTE) / 5G (FR1) Omnidirectional Outdoor Antenna
|
Antenna Type |
Dipole |
||
|---|---|---|---|
|
Operating Frequency Range |
617-960 MHz 1450-7125 MHz Includes Band 71 (617 698 MHz)
|
||
|
Wi-Fi Capability |
Dual Band Wi-Fi Support |
||
|
Nominal Impedance |
50 Ohms |
||
|
VSWR (617-960 MHz) VSWR (1450 7125 MHz) |
2:1 2:1 |
||
|
Average peak gain (617-960 MHz) Average peak gain (1450-4200 MHz) Average peak gain (4400-7125 MHz) |
2.5 dBi 4.0 dBi 4.3 dBi |
||
|
Average efficiency (617-960 MHz) Average efficiency (1450-4200 MHz) Average efficiency (4400-7125 MHz) |
81% 84% 66% |
||
|
Radiation Pattern |
Omni |
||
|
HPBW Vertical Plane (617-960 MHz) HPBW Vertical Plane (1450-4200 MHz) HPBW Vertical Plane (4400-7125 MHz) |
96° 48° 46° |
||
|
Polarization |
Vertical | ||
|
Average Power Rating |
10 W |
||
|
ESD Protection |
DC Grounded |
||
|
Diameter |
Dia. 2.45” (62.2mm) |
||
|
Height |
Height 8.64” (219.4mm) |
||
|
Weight |
1.37 lbs (620 g) |
||
|
Connector |
N-Female (720 hour salt spray rating) |
||
|
Bracket |
Bracket, mounts to Ø1” to 2.12” (25.4 to 54mm) pole. (Horizontal or Vertical) (720 hour salt spray rating) |
||
|
Installation Torque |
4-5 Ft/ lbs |
||
|
Operational Temperature |
-40° to +185°F (-40°C to +85°C) |
||
|
Storage Temperature |
-40° to +185°F (-40°C to +85°C) |
||
|
Ingress Protection |
IP66 and IP67 |
||
|
RoHS-6 Compliant |
Yes |
