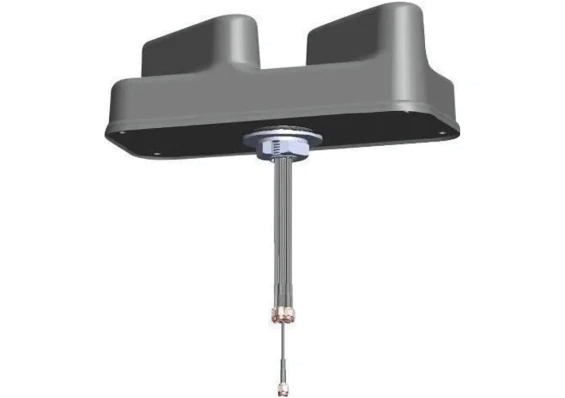

Cisco ANT-7-5G4WL2G1-O= - Antenna

The antenna can be mounted on the roof of a vehicle or fixed structure. The antenna meets or exceeds a variety of environmental ruggedization specifications for transportation applications.

The topics included are:

The antenna features:

• 4x SMA(m) connectors for LTE & 5G

• 2x RPSMA(m) connectors for Wi-Fi

• 1x SMA(m) connector for GNSS

• Supports the following bands:

  • LTE/5G FR1: 617-960, 1710 - 5925 MHz

  • Wi-Fi, dual band: 2400 -2500 MHz

  • Includes Band 71 (617-698 MHz)

• Average peak gain

  • 617 960 MHz 2.1dBi

  • 1710 5925 MHz 5.3dBi

• 2x 2400 2500/4900 5925MHz WiFi

• Average peak gain

  • 2400 2500 MHz 5.8dBi

  • 4900 5925 MHz 5.5dBi

• 1x GNSS Active, supports GNSS, L1-Band 1560 - 1605 MH

• Omni radiation pattern
