Cisco Part Number: CW9172I-RTG is a Cisco Wireless 9172I(W7,3 radio,3 band 2x2),Global, Ready To Go
Read To Go:
- Includes Low Profile AP Mounting Bracket
- Includes Ceiling Grid Clip: Recessed Mount
- Single unit packaging
- No customization

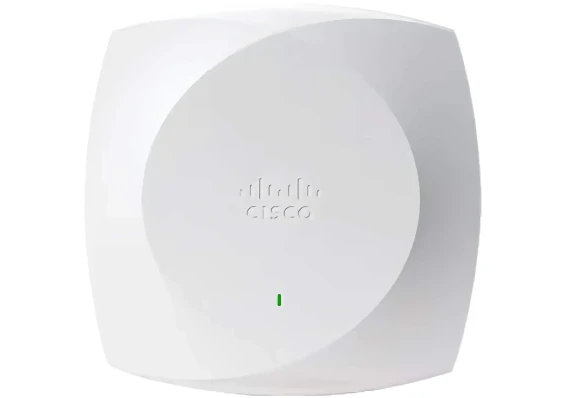

Cisco Catalyst CW9172I Access Point
The Cisco Catalyst CW9172I-RTG is a next-generation Wi-Fi 7 access point engineered to deliver cutting-edge performance, flexibility, and security for high-density enterprise and campus networks. With support for the 6 GHz band, this tri-band access point unlocks the full potential of Wi-Fi 7, enabling greater capacity, lower latency, and faster wireless speeds.
Key Features
- Wi-Fi 6E Support: Operates in the 2.4 GHz, 5 GHz, and 6 GHz bands, offering expanded spectrum for improved performance and reduced congestion.
- Tri-Radio Architecture: Dedicated scanning and client-serving radios allow for optimized performance and continuous monitoring.
- 2x2:2 MU-MIMO: Supports multi-user MIMO for enhanced device throughput and efficiency in dense environments.
- Integrated Smart Antenna Connector: Offers optional external antenna capabilities with flexible mounting and coverage options.
- Cloud-Managed via Meraki Dashboard: Provides intuitive, centralized control with deep network insights, device visibility, and automation.
- Advanced Security: Includes integrated Layer 7 application firewall, WPA3, and DNS-based content filtering.
- IoT Readiness: Equipped with BLE and Thread radios for seamless integration with IoT sensors and devices.
- Environmentally Hardened: Built with robust enclosures, suitable for both indoor and semi-rugged deployments.
Technical Specifications
- Max Data Rate: Up to 3.9 Gbps aggregate throughput
- Ethernet Ports: 1x 2.5G Multigigabit Ethernet (802.3af/at/bt PoE)
- Mounting: Versatile mount kit supports wall, ceiling, or T-rail installation
- Power: PoE-powered, with full feature set available on 802.3bt
- Dimensions: 7.8 x 7.8 x 2.1 in. (20 x 20 x 5.3 cm)
- Weight: 1.9 lb. (874 g)
Ideal Use Cases
- High-density enterprise offices
- Large educational campuses
- Healthcare and retail environments
- IoT and smart-building deployments
With a robust feature set and full cloud-managed capabilities, the Cisco Catalyst CW9172I is designed to future-proof your wireless infrastructure, delivering reliability, scalability, and a seamless user experience in even the most demanding wireless environments.
