Cisco Part Number: FPR4K-XNM-8X25G is a Cisco Secure Firewall 4200 8X25G ZSFP Network Module
The Secure Firewall 4200 chassis includes two network module slots, labeled NM-2 and NM-3 from left to right on the front panel. These slots support optional, removable I/O modules that add additional ports or alternative interface types, enhancing connectivity options. The network module inserts directly into the chassis via the front panel, where both slot locations are situated for easy access.
FPR4K-XNM-8X25G supports 1 Gb, 10 Gb, or 25 Gb full-duplex Ethernet traffic per port and is supported on all Secure Firewall 4200s.

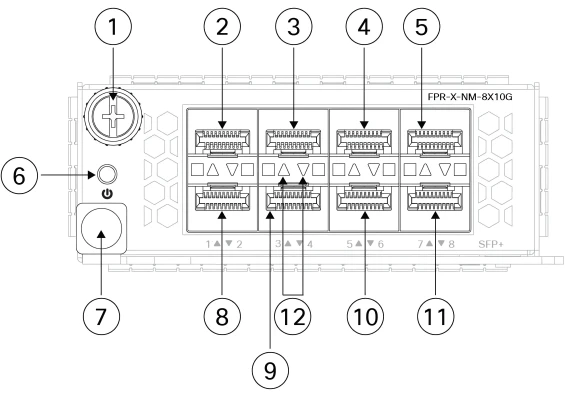

The top ports are numbered from left to right—Ethernet 2/1 or 3/1, Ethernet 2/3 or 3/3, Ethernet 2/5 or 3/5, and Ethernet 2/7 or 3/7. The bottom ports are numbered from left to right—Ethernet 2/2 or 3/2, Ethernet 2/4 or 3/4, Ethernet 2/6 or 3/6, and Ethernet 2/8 or 3/8
The Cisco Secure Firewall 4200 Series is an advanced firewall solution tailored to fulfill the security needs of large enterprises, data centers, and service providers. It comes in three distinct performance models, providing a variety of options while ensuring exceptional threat protection within a compact 1 RU form factor.
